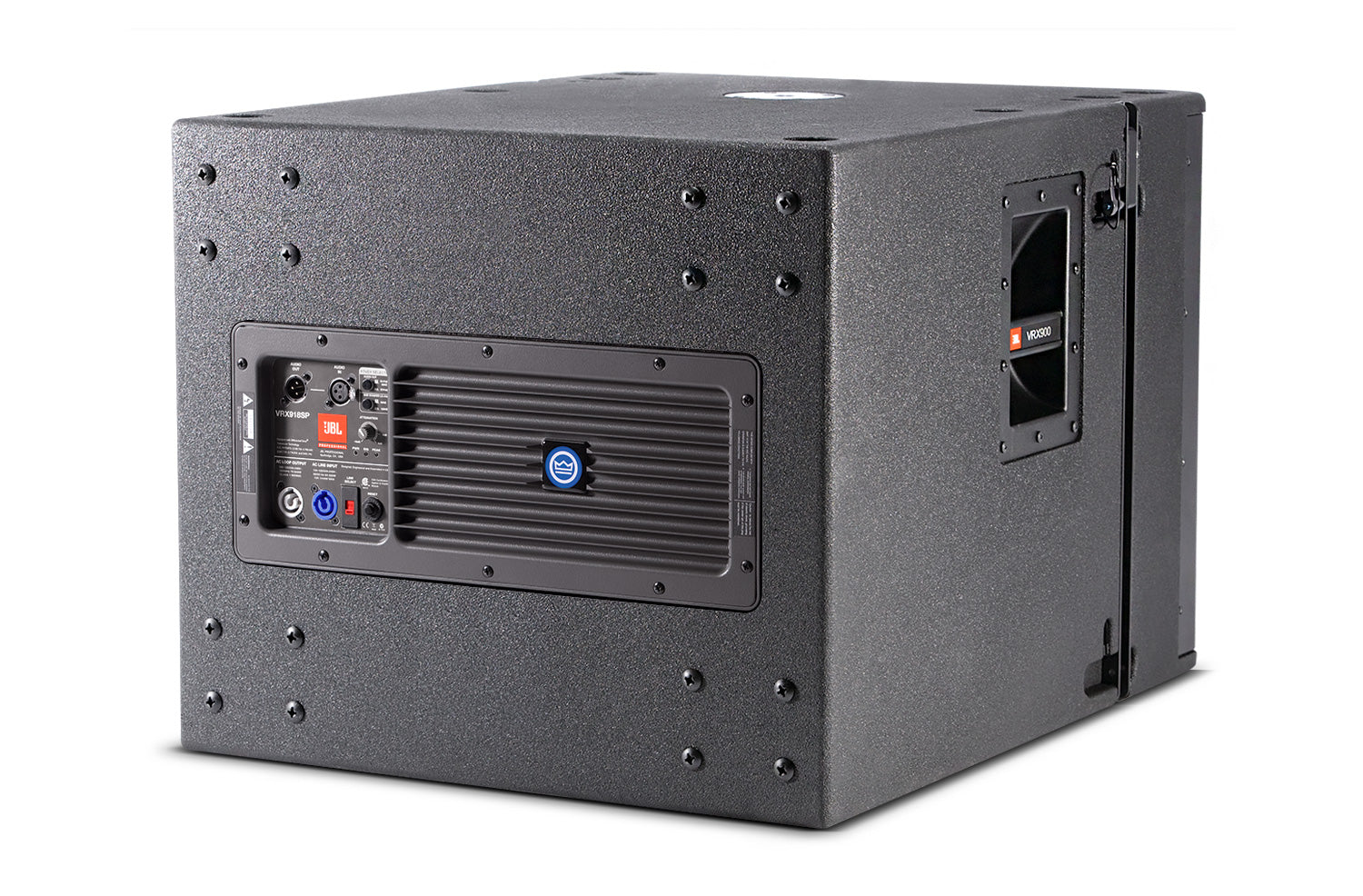

JBL VRX918SP - 18'' Powered sub 1500 watt (Flyable)

Roll over image to zoom in Click on image to zoom

JBL VRX918SP - 18'' Powered sub 1500 watt (Flyable)

Name: JBL VRX918SP - 18'' Powered sub 1500 watt (Flyable)
Brand: JBL
SKU: VRX918SP
Price: 2599.00 CAD
Availability: InStock

JBLSKU: VRX918SP

Price:

$2,599.00

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

18 in. High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features

Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and
light weight.
Integral rigging hardware for simple connection of enclosures and optional array frame.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
Large port area for reduced distortion.

Specifications

Power Rating	1500 Watts PeakLF: Dual-Bridged Technology™, Class D
Frequency Range	31 Hz – 220 Hz
Dimensions (H x W x D)	508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Response (-10dB)	31 Hz – 220 Hz
Maximum Peak Output	126 dB SPL at 1m
Bandpass Nominal Impedance	LF: 2 x 2 ohms
LF Driver	1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

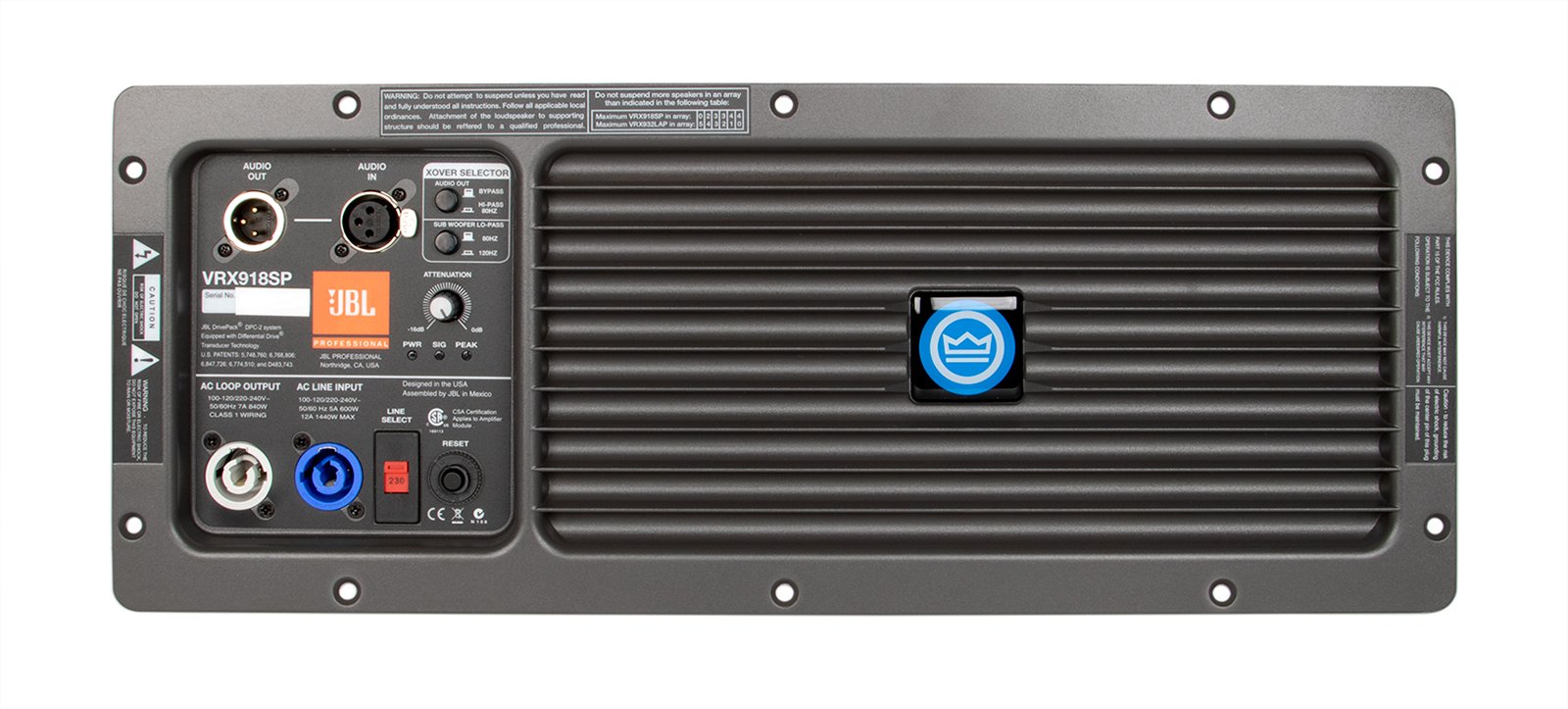

Inputs	XLR with loop through
User Controls	Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing	DSP based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage	User selectable: 120V/240V (-15%, +10%)
AC Input Connector	Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector	Neutrik PowerCon (NAC 3MPB)
AC Current Requirements	6A per system at 120V, 3A per system at 240V
Enclosure	18 mm birch plywood.
Suspension / Mounting	Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish	Black DuraFlex™ finish
Grille	Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each)	38.5 kg (85 lb)
Optional Accessories	VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
Outputs	1 x XLR
Nominal Impedance	LF: 2 x 2 ohms
