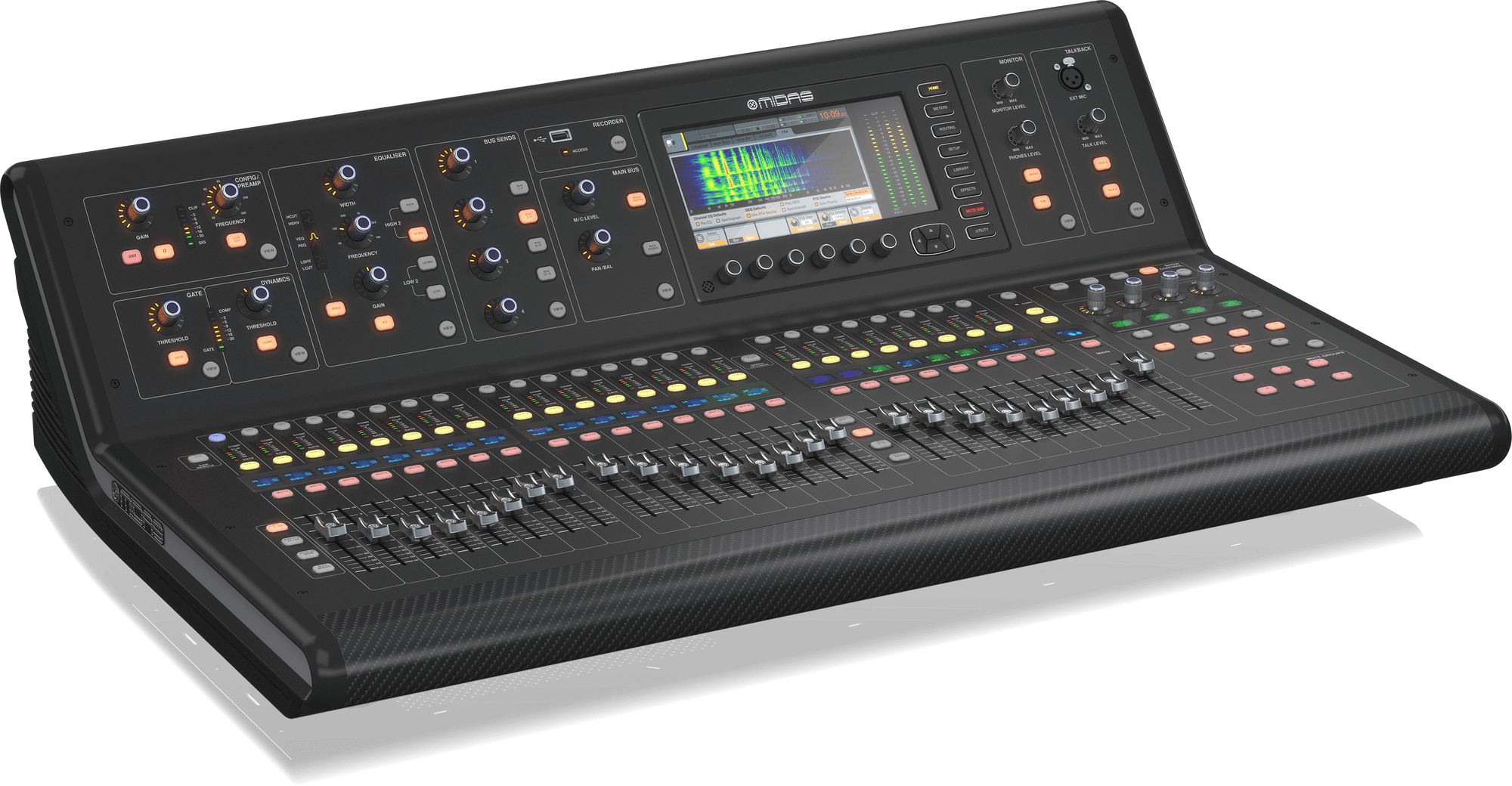

MIDAS M32 LIVE - Digital Console for Live and Studio with 40 Input Channels, 32 Midas PRO Microphone Preamplifiers and 25 Mix Buses and Live Multitrack Recording

Klark Teknik DN32-LIVE

The DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for Midas M32 and Behringer X32 mixers provides 32-channel bidirectional audio I/O via USB 2.0 for both live performance and studio recording, plus comprehensive remote operation of your DAW via HUI/Mackie Control emulation. Dual SD/SDHC slots allow fully independent recording/playback of up to 32 channels of uncompressed WAV files in consistent sessions – to capacity of the SD cards. Now even without a computer, you can capture multichannel live or session tracks, perform virtual sound checks, add backing tracks, set and manipulate markers, and enjoy full remote operation via PC, Android * or iPad * apps, and X-TOUCH control surface

Your “Mind-to-Sound” Interface

M32 LIVE is your “mind-to-sound” interface – the intersection of creativity and production.

Whether you’re accustomed to digital mixers or not, the M32 LIVE’s intuitive user interface offers a fluid mixing experience that instantly feels like home.

From the first moments of use, the workflow unfolds in a way that strips away obstacles, distractions, and hesitation.

Channel Strip

The M32 LIVE Channel Strip puts the most important channel processing parameters into one section so that no matter which channel you are working on, the controls are always the same.

This highly-efficient layout stems from Midas decades of console design and input from our users. Optimized control illumination ensures a clear indication of levels or status from any viewing angle.

Illuminated rotary encoders and switches give you control of preamp settings, frequency shelving, dual dynamics sections, as well as multi-mode fully parametric EQ, bus sends, main, mono and stereo panning

7" Main Display

M32 LIVE’s 7" day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them.

Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Flanked by high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters.

Intelligent design puts control of vital functions such as Effects, Metering, Routing and much more 1 or 2 button presses away

Sends On Fader

M32 LIVE brings the convenience of digital mixing to your Aux and output bus mixes too, thanks to its integrated Sends on Fader feature. This incredible function allows you to build powerful, dedicated sub-mixes for monitor, secondary zone feeds, and much more – all without affecting the front of house mix or levels.

The M32 LIVE allows you to send your choice of signals to any Aux or output bus and then dial in the perfect mix via the channel faders.

The console remembers where you set the faders and instantly recalls them when you select a bus for quick adjustments.

DCA Groups

DCA (Digitally Controlled Amplifier) groups allow control over several signals at once without actually mixing them into a subgroup bus. M32 LIVE’s 8 DCA groups let you control multiple signals via a single fader, such as the entire drum mix, the horn section, or the backup vocalists, etc.

DCA control affects the FOH mix, while allowing the individual buses to remain unchanged. The result is a customizable workflow that provides maximum flexibility, but still allows individual buses and subgroups to serve the purpose they were intended for, such as zone sends, broadcast feeds, etc.

View Function

Across the M32 LIVE you’ll find 11 strategically placed View buttons associated with various functions. These buttons enable immediate access to information about that specific function.

For instance, if you press the View button in the Equaliser section, information for that channel’s EQ is instantly shown on the main display, providing in-depth editing of all related parameters.

This direct access to visual fine-tuning gives the engineer a level of control previously available only on consoles costing exponentially more.

Assign Section

While some digital consoles offer a few user-definable controls, M32 LIVE’s Assign section sets a new standard by providing a total of 36 fully customizable controls on three separate layers.

As with channels and buses, individual Scribble Strips are provided for immediate identification. Buttons can be defined to toggle parameters on/off, adjust timing of effects by tapping, or jump to specific screen views.

Rotary encoders with LED collars can be assigned to specific channel parameters, or to additional parameters in the Dynamics section relevant to the current channel selection.

“Acoustic Integration” – the Live Sound Revolution

Legendary 40-year old British company Turbosound, famous for producing some of the world’s best speaker systems, have teamed up with Midas to seamlessly integrate mixer and speaker systems. We call it “Acoustic Integration”.

The M32 LIVE’s ULTRANET bus allows streaming up to 16 channels of pristine digital audio to an array of Turbosound iQ speakers – all on a single CAT5 cable, along with control data to set sound presets remotely.

Furthermore, the iQ Series features “True Physical Modeling” of some of the most popular speakers which can be easily remote controlled via the M32 LIVE, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk.

“Acoustic Integration” is the next live sound revolution.

100-Band RTA for all Channel/Bus EQs

The M32 LIVE includes a 100-band Real Time Analyser (RTA) with full bar and spectrograph views on the M32-EDIT control application. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time - capturing a sonogram window of a full 10 seconds.

You can switch between the large RTA view to display any available signal at full screen resolution, or the combined view, which displays the RTA view above each of the channel and bus EQ curves.

This feature lets you see the results of your filtering choices in the audio spectrum directly. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the FX rack.

Monitoring and controlling frequencies has never been easier!

16 Breathtaking FX “Plug-Ins” Based on True Physical Modeling

We’ve added 16 breathtaking FX “Plug-Ins” to the M32 LIVE, giving you access to a total of 50+ effects that would otherwise cost tens of thousands of dollars in hardware.

This new generation of high-end FX “Plug-Ins” is based on True Physical Modeling of classic audio hardware. We essentially “rebuilt” classic analogue gear in the digital domain and included models of legendary processors such as Urei’s 1176 * , Teletronix LA-2A * and Fairchild 670 * compressors as well as the legendary Pultec * EQP-1a and EQ5 equalisers etc. We also added a cutting-edge 5-band multiband compressor.

Last but not least, the M32 LIVE can now run 4 studio-quality stereo reverbs together with 8 channels of 31-band graphic EQ. This allows you to replace your old outboard gear with a fully recallable onboard solution.

Gain Splitting and Remote Control for FOH and Monitoring

A new Gain Split mode separates channel gain (trim) from the head amp gain, allowing both the FOH and/or the monitor engineer to adjust local trim digitally – and independently of the preamp gain.

Additionally, the new HA Gain Remote option allows console gains to be remotely controlled by an external console, such as when using the M32 LIVE as a stage box.

More Routing and Processing Flexibility

The M32 LIVE’s routing becomes even more flexible with this recent firmware upgrade. Output signals and XLR outputs are now treated separately, allowing signals from AES50 sources or expansion cards to be routed directly to the M32 LIVE’s analogue outputs.

For example, now you can use the outputs from an M32 LIVE for directly routing back PA or monitoring signals from a main or FOH console. New output tap points can be set as pre- or post-mute for greater usability with your P16 personal monitoring mixers. This is very useful in situations where you don’t want mute groups to interrupt your signal flow.

Mighty New Tools for Scene and Show Management

Introducing the Cue List, an innovative way to automate the loading of scenes and new “Snippets” at different points during a show. Each of the 500 Cue entries can load any of the 100 Scenes or Snippets separately or at the same time. This gives you an amazing total of 500 Cues x 100 Scenes x 100 Snippets!

For example, store your favorite EQ settings for drums on channels 1 - 8 as a Snippet, recallable in an instant as its own preset, completely independent of the console’s overall scene. It’s like taking a snapshot of a parameter on an input, return, FX slot, bus, Matrix, Main or DCA group – and saving it for quick access whenever you need it.

The Midas PRO FADER – Rated for 1 Million Life Cycles

In our pursuit to lead the industry in every possible aspect, we decided to design the world’s most reliable motor fader. We dove deep into materials science, employing semi-precious metals that offered the durability we desired. We took painstaking care to design a motorised fader that would provide continuous performance night after night, year after year.

After spending a great deal of time working with metal vendors, we developed precision components that offer high linearity, robustness, and smooth feel during operation. We needed ultra-straight high-grade steel guide rods with smooth polished surfaces – and we got them. We worked closely with our manufacturing partners to maintain the tolerance of our parts, always choosing the most suitable materials and controlling the processes to ensure consistent moulding quality and eliminating the warping and deformation caused by shrinking as the parts cool.

True, none of this was easy - we spent many long hours developing the Midas PRO FADER design. However the results speak for themselves.

Midas PRO FADERS are rated for up to 1,000,000 cycles – three times that of other leading manufacturers.

LCD Scribble Strips

A total of 29 programmable LCD Scribble Strips offer channel/bus identification that mirrors what is being controlled.

Use them to enter input/output tags, plus add icons you recognize at-a-glance. Then assign colors to create visual groups for immediate, on-the-fly recognition of similar inputs.

Simple, elegant and effective – plus you’ll never need masking tape again.

Virtual Effects Racks

M32 LIVE includes an extensive array of onboard effects, rendering outboard processing racks a thing of the past. The Virtual FX rack features 8 true-stereo, studio-grade effects engines each assignable to any input, group or output mix bus. Choose from high-end FX modules including a range of reverbs, delays, EQs, dynamics and much more.

Each FX algorithm has been completely re-imagined for stunning performance – typically costing several times the price of the M32 LIVE.

Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32 LIVE mix engine, ensuring flawless performance, flexible routing and the end of cable faults forever!

The immaculate tube signal path in Teletronix’ LA-2A Leveling Amplifier has left its exceptional clarity, its rich and warm compression on countless albums of the past decades.

The ultra-smooth optical attenuator is closely modeled in our LA COMPRESSOR. It provides breezing, natural and effortlessly musical compression. (Inspired by Teletronix LA-2A *)

When Urei released the 1176LN Limiting Amplifier in the late 60’s, it broke new ground. Field Effect Transistors employed were just invented and the 1176 was one of the first audio processors to benefit from this new technology.

Our digital re-incarnation, ULTIMO COMPRESSOR, is based on the early Rev. E model and authentically captures the smooth character of the original class-A output stage and its FET’s legendary fast Attack. (Inspired by Urei 1176LN *)

The Fairchild 670 tube compressor not only achieves record bids in high-end vintage gear auctions, it also delivers some of the finest colorations in compressor history. Two small trim VR’s preset the control side chain action, a six-step switch determines the timing, and the two large Input and Threshold knobs adjust the levels.

Our FAIR COMPRESSOR model is true to the original signal path, and conveniently provides models for dual, stereo-linked or M/S operation. (Inspired by Fairchild 670 *)

The COMBINATOR is an amazing 5-band compressor that emulates famous broadcasting and mastering compressors.

A highly complex processor, the COMBINATOR utilises automatic parameter control that produces stunning and “inaudible” results. Makeup-gain for each frequency band will automatically be adjusted by the Spectral Balance Control (SBC) function, to maintain a balanced audio spectrum

The XTEC EQ1 is undisputedly one of the best passive studio equalisers ever manufactured. Virtually indescribable, recording engineers claim the Pultec EQP-1a to be the “secret sauce” of sound enhancement.

We analysed this classic to the core and created an exact physical model that reproduces the multi-faceted sound in painstaking detail. Even the transformers and tube output stage have been faithfully modeled! (Inspired by Pultec EQP-1a *)

Pultec simply wrote the book on passive equalisation. By digitally “rebuilding” every aspect of the original Pultec classic, we captured the very essence in our parametric equaliser XTEC EQ5. Our digital re-incarnation is based on the original model and authentically emulates the smooth character of the its rather unique components. (Inspired by Pultec MEQ5 *)

The new SUB OCTAVER provides two channels of earth-shattering sub-harmonics generation, one or even two octaves below the input signal. While originally designed for bass players, the effect can be adjusted for Hi, Mid and Low frequency tracking to apply to a wide range of applications. This is your secret weapon for beatboxing...

The EDISON EX1 is the re-incarnation of our own analogue classics. This remarkably-effective tool allows manipulation of the stereo field. Selectable M/S input/output modes allow the processing or creation of M/S recorded sound sources.

The SOUND MAXIMIZER restores natural brilliance and clarity to any audio signal by adjusting the phase and amplitude integrity to reveal more of the natural texture of the sound, which is often hidden when using some effects and equalisers. (Inspired by Sonic Maximizer 482i *)

The DIMENSIONAL CHORUS is the perfect emulation of what has been referred to as “the best analogue Chorus unit ever created”. Four simple Mode preset buttons activate amazing effects, best described as “space” and “dimension”. Absolutely faithful to the original, multiple preset buttons can be pressed simultaneously. (Inspired by Roland Dimension D Chorus *)

MODULATION DELAY combines three of the most used time modulation effects into one easy-to-operate unit. Enjoy true-stereo delay with a lush and spacious chorus, topped off with three reverb models to choose from.

The Lexicon 480L * has been recognised as the gold standard of digital reverb. We have included three of the finest reverb models – Rich Plate, Room and Rich Chamber. The M32 LIVE’s models precisely capture all nuances based on our “True Physical Modeling” and our algorithms even incorporate the unit’s AD/DA gain-stepping converters – nailing the entire analogue and digital circuit paths right down to the last detail. (Inspired by Lexicon 480L *)

EXCITERS increase presence and intelligibility in live sound applications and are indispensable for adding clarity, air and harmonic overtones in the recording studio. ENHANCERS let you emphasise the Bass, Midrange and Hi output at selectable frequencies.

You can generate maximum punch, clarity and detail, without turning up the overall volume. (Inspired by Aphex Aural Exciter * and SPL Vitalizer *)

Our TruEQ STEREO GEQ delivers musical and responsive signal processing-perfect for general room equalisation, indispensable for monitoring. M32 LIVE provides up to 16 mono graphic EQs, in addition to the multi-band parametric EQs in all channels and buses, to cope with the most demanding stage monitoring situation.

Plus, the M32 LIVE’s motorised faders can be switched to control the filter bands of the graphic EQ, with the channel LCDs showing the corresponding filter frequencies-and you can even put this on a user defined hot-key for immediate access. (Modeled after Klark Teknik DN360)

VINTAGE ROOM stands out head and shoulders over other competing reverberation strategies in the way it models sound propagation in air and room resonances. Invented in the early ’80s, the role model delivered authentic room character from an algorithmic reverb long before convolution-based processing was available.

It is an ideal reverb for mixes or sub-groups, as it adds space to complex signals, which is highly desirable in classical music and broadcasting environments. (Inspired by Quantec QRS *)

PLATE REVERB emulates the characteristics of a plate reverb chamber with control over the damping pad, modulation depth and speed, and crossover. PLATE REVERB will give your tracks the sound heard on countless hit records since the late 1950’s. (Inspired by Lexicon PCM70 *)

The 3-TAP DELAY in the M32 LIVE records the input signal and then echoes it back after a user-definable period of time and number of repeats. What makes the stereo and triple delay useful and outstanding is the linked tap-timing and musical choice of echo patterns.

Use the 3-TAP DELAY to fatten up vocals and instruments, or to add an enhanced spatial element to any performance.

The HALL REVERB effect provides a broad spectrum of reverberation possibilities, from small room to large, or even cavernous proportions. When softly mixed with the original signal, Hall Reverb can be used to create a warm, more natural sound. (Inspired by Lexicon 480L * )

This handy dynamic FLANGER & DELAY duo blends the “whoosh” of soaring jet planes with classic Delay, and can be adjusted from mild to wild. This combination effect only takes up one FX slot. (Inspired by Lexicon PCM70 *)

WAVE DESIGNER is a powerful tool for adjusting signal transients and dynamics such as attack and sustain. Use it to make a snare drum really “crack” in the mix or level out volume inconsistencies of slap bass tracks. (Inspired by SPL Transient Designer *)

The STEREO PRECISION LIMITER is perfect for setting a precise volume limits, ensuring distortion-free and optimal signal integrity. Use the Stereo Precision Limiter to boost quiet signals or reduce the level of “hot” signals to prevent clipping. (Inspired by Sony Oxford Dynamics *)

The DE-ESSER is a “must-have” tool for reducing the amount of sibilance in vocal mics while adeptly preserving the natural voice timbre of a performance. Use it to enhance the smoothness of the upper mid to high frequencies in vocals as well as drum overheads and strings, etc. (Inspired by SPL 1239 *)

Based on the legendary EMT250, the VINTAGE REVERB delivers a shimmering, bright reverb that won’t overpower your live or recorded tracks. Use the VINTAGE REVERB to sweeten vocals and snare drums without sacrificing clarity. (Inspired by EMT250 Plate Reverb *)

Occupying only one FX slot, the CHORUS & CHAMBER effect combines the shimmer and doubling characteristics of a studio-grade Chorus with the sweet sound of a traditional Chamber reverb. (Inspired by Lexicon PCM70 *)

You Are Connected

Each M32 LIVE comes loaded with all of the connectivity, I/O and functionality you need, right out of the box – but it doesn’t end there. Onboard USB 2.0 connectivity delivers a full 32 x 32 channels of audio and MIDI to your DAW. Integrated multi-channel digital audio interfaces connect to remote stage boxes and/or the P16 Personal Monitor System. Native Ethernet control enables remote operation by computer, iPad or iPhone over a wired or wireless network, across the room – or across the planet!

Dual AES50 network ports featuring Klark Teknik SuperMAC technology support up to 96 inputs and 96 outputs over shielded (STP) CAT5 cable, allowing remote stage boxes and sharing signals among several connected M32 LIVEs and other Midas, Klark Teknik and AES50-equipped products.

On-board ULTRANET provides a 16-channel digital mix direct to P16 Personal Monitor Mixers, without added hardware, cost or latency.

Ethernet, USB and MIDI are all standard features on M32 LIVE.

An additional expansion slot is also included, so that the M32 LIVE can connect to current and future digital audio networks and link protocols via a wide range of expansion cards including USB, FireWire * , ADAT * , MADI and Audinate Dante * .

POWERPLAY P16

Easy as a handshake. Plug the P16-M personal monitor mixer into M32 LIVE’s ULTRANET port with a shielded (STP) CAT5 cable, and let the performer dial in the ideal 16-channel personal monitor mix. You can daisy-chain additional P16-M units, or use several P16-D ULTRANET distributors to easily set up a plug and play monitor system that can accommodate 64 individual P16-M units – and provide them with operating power over CAT5.

DL16

The Midas DL16 digital stage box closes the gap between stage and FOH (Front of House) by placing 16 fully-programmable, remotely controllable high-end Midas mic preamps and 8 analogue, balanced XLR returns at the stage end. Connecting over a single shielded (STP) CAT5 cable, up to three DL16 or Midas DL150 stage boxes can be daisy-chained to deliver 48 channels in and 24 out to the stage. Dual AES50 ports on the M32 LIVE allow up to 96 input channels to be connected and routed in the same system.

•   AES50 network ports featuring Klark Teknik SuperMAC technology for ultra-low latency (in-ear compatible)

•   Dual AES50 ports, each for cascading up to three DL16 units – no merger or router required

•   Precise LED metering plus 7-segment displays for signal control on stage

•   Phones output assignable to any of the inputs/outputs for on-stage monitoring

•   Connectivity for P16-M Personal Monitoring System for in-ear applications (not included)

•   Dual ADAT outputs for use in splitter mode and stand-alone digital multi-core applications

•   MIDI in/out for bidirectional communication between FOH console and on-stage MIDI devices

What are AES50 and SuperMAC?

AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry.

This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure. SuperMAC is a proprietary implementation of AES50 owned by Klark Teknik. Originally developed by Sony Pro-Audio Labs in Oxford, UK, it forms the basis of the Audio Engineering Society’s AES50 open standard for digital audio networking – High Resolution Multi-channel Audio Interconnection (HRMAI), as published by the Audio Engineering Society, Inc.

•   48 bidirectional audio channels @ 48 kHz over Neutrik etherCON-terminated shielded (STP) CAT5 cable

•   Single cable duplex interconnection for audio and sample clocks

•   Ethernet physical layer audio data transmission

•   High channel count and ultra-low deterministic latency (2x3 samples = 1/8 ms per node)

•   Accurate phase-aligned clock distribution

•   Comprehensive error detection and management

•   Provision for redundant networking

•   Minimal configuration - total ease of deployment and use

•   Ethernet TCP/IP protocol-compatible auxiliary data channel

Real-Time Recording

A versatile powerhouse of a live console, the M32 LIVE also provides robust studio functionality. Record and play back up to 32 tracks which run on Windows XP, Windows Vista, Windows 7, and Windows 8 operating systems or Mac computers via integrated USB 2.0 connectivity. M32 LIVE supports a variety of sample rates, allowing you to record up to 32 tracks of live audio directly to your computer for mixing down later. Take advantage of M32 LIVE’s built-in FX engines to augment your DAW’s plug-in collection, or to free up valuable computer resources.

M32 LIVE’s recall capability makes it easy for both project and professional studio engineers to stay organised by storing projects as scenes, either internally or externally on a USB stick.

Optional Expansion Cards

The M32 LIVE’s expansion slot provides flexible and expandable connectivity for many different applications. A wide array of Klark Teknik expansion cards can easily be used in place of the pre-installed DN32-USB card to release the power of M32 LIVE into existing MADI * , Dante * and ADAT networks. Fully compatible with these widely available audio protocols, the M32 LIVE delivers a seamless integration in digital live sound, recording and broadcast environments.

DN32-USB

Hi-Speed FireWire/USB 2.0 Audio Interface for Professional Recordings

The DN32-USB Expansion Card ensures a stable and fast solution for professional live and studio recordings. It provides 400 Mbit/second throughput to transfer your high-track count session to popular Software DAWs on Mac and PC via FireWire or USB 2.0. Additionally, the DN32-USB turns your M32 LIVE into a sophisticated control surface, and includes remote HUI* and Mackie Control * emulation.

DN32-ADAT

High-Performance 32-Channel ADAT Expansion Card for M32 LIVE

The DN32-ADAT Expansion Card allows you to digitally integrate your M32 LIVE with any equipment featuring ADAT I/O. This includes stand-alone recorders, digital audio workstations, and other digital mixers and signal processing gear. The DN32-ADAT card provides 32-channels of ADAT inputs and outputs on its 8 fiber-optic Toslink * connectors. The card features 24-bit signal transmission and operates at both 44.1 and 48 kHz sample rates, maintaining your signal integrity. The DN32-ADAT card also has a BNC word-clock in/out capability allowing it to sync with an external clock, or provide the clock signal for other devices. External clock synchronisation is possible through the BNC connection, as well as any of the 4 Toslink inputs.

DN32-MADI

High-Performance 32-Channel MADI Expansion Card for M32 LIVE

The DN32-MADI Expansion Card brings even more I/O options to the M32 LIVE by instantly enabling it for MADI networking. The MADI, or AES10, protocol has become the industry standard for multichannel audio distribution in both installations and broadcast applications. DN32-MADI provides optical duplex SC-plugs (IEC874-19) to connect with other MADI devices via multimode fiber-optic cable, allowing to bridge distances of over 500 metres with galvanic isolation. Dual BNC terminals are also provided for transmission via standard 75-Ohm coaxial cable of up to 100 m in length. The BNC and fibre-optic connectivity can also be used simultaneously, providing reliable redundancy in mission-critical applications. DN32-MADI card is the perfect solution for integrating the M32 LIVE into current installations using the MADI protocol.

DN32-DANTE

High-Performance 32-Channel Audinate Dante Expansion Card for M32 LIVE

By installing the DN32-DANTE card in place of the DN32-USB card, your M32 LIVE will interface with Dante networks using virtually any 100Mbit/s or Gigabit Network infrastructure with DSCP-based QoS – providing dependable multi-channel audio that coexist with other IP-based data traffic on the same network. The DN32-DANTE card utilises 24-bit signal transmission with sample-accurate synchronisation and low latency, ensuring the highest audio integrity. And a secondary input allows you to set up a seamless, redundant network. Full remote control of the M32 LIVE is possible using the integrated Ethernet switch. When the DN32-DANTE card is connected to a computer, Audinate’s Dante Controller application gives you full control over configuration and signal routing among your Dante-enabled devices.

DAW Ready-MIDI Plus Mackie Control* & HUI* Protocols

Thanks to its onboard MIDI ports, the M32 LIVE console can function as a high-level, large-format control surface, similar to Mackie Control and HUI, and integrates seamlessly with most popular DAW platforms. M32 LIVE’s motorised faders can be used to send position information to the onscreen DAW faders, while each bus’ mute and solo buttons control their onscreen counterparts. This powerful control surface relationship, which functions bidirectionally between the M32 LIVE and your DAW, allows you to work more quickly and attend to the finer nuances of the overall mix. After all, mixing with your hands puts you in “touch” with your project, providing a level of finesse that can mean the difference between a good recording session-and a work of art! Or, would you rather use a mouse?

M32-EDIT (PC, Mac, Linux)

Just as in life, you can never have too many connections – and this applies to controlling the console itself. Simply connect the M32 LIVE to a laptop or desktop computer via LAN, wireless network or Ethernet cable, and take total remote command of the M32 LIVE. Move a fader on the PC, it moves on the M32 LIVE; press a button on the computer, the button toggles on the M32 LIVE. The M32-EDIT app is designed for maximum flexibility, allowing you to use any MCU (Mackie Control Universal) compatible control surface to remotely control the M32 LIVE. This feature provides an extremely-powerful and useful solution for side of stage monitor control, individual control of multiple installed M32 LIVEs, as well as multiple remote control stations of the same M32 LIVE. The M32-EDIT also lets you create scenes on your PC beforehand to minimise the time required for sound checks.

With the M32-EDIT software for PC, Mac and Linux, your computer becomes your virtual M32 LIVE.

M32 MIX (iPad)

Front of House is wherever you and your iPad are-thanks to the new M32 MIX App for iPad. Just plug in a wireless router via Ethernet cable to the M32 LIVE, and then wirelessly connect up to 10 iPad devices, which is especially handy for custom monitor mixes.

The M32 MIX App lets you control all 32 mic inputs, 8 Aux inputs and 16 buses – plus the FX stereo returns and the Matrix, Main, and DCA levels. Select a fader bank on the iPad, slide the virtual faders and M32 LIVE’s motorised faders instantly mirror your action. Additionally, thanks to the Sends on Faders functionality, your iPad now controls 16 independent monitor mixes. The M32 MIX App gives you the flexibility and mobility to make running sound a breeze!

Download the free M32 MIX App from the Apple App Store.

M32-Q (iPhone, iPod Touch)

M32-Q is the perfect tool for setting up your personal monitoring mix with the Midas M32 LIVE Digital Mixing Console. Compatible with iPhone models and iPod touch devices, each artist can run their own M32-Q App to adjust and tweak their personal wedge’s mix. M32-Q includes an assignable MCA (Mix Control Association) feature that makes monitor mixing simple enough to be adjusted during performance. Assign any input or combination of inputs to one of the 4 MCA controls inside M32-Q and instantly get “more me”, “less band”, “more click track”… with a single sweep of your finger. Download the free M32-Q App from the Apple App Store.

M32-Q (Android)

M32-Q is also available for Android devices, allowing you to set up your personal monitoring mix with the Midas M32 LIVE Digital Mixing Console. Compatible with Android (2.2 or higher) mobile devices, each artist can run their own M32-Q Android app to adjust and tweak their personal IEM or wedge monitor mix with an interface similar to the iPhone app. The app includes an assignable MCA (Mix Control Association) feature for monitor mixing simple enough to be adjusted during performance. Assign any input or combination of inputs to one of the 4 MCA controls inside M32-Q Android and instantly get “more me,” “less band,” “more click track…” with a single sweep of your finger.
