COLORstrip Mini

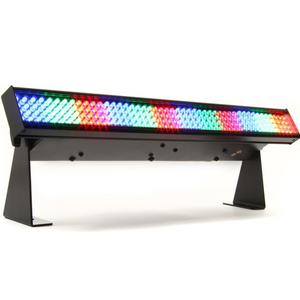

The COLORstrip Mini is a 19-inch long four-channel DMX-512 controlled LED linear wash light. Static colors and RGB color mixing can be done with or without a DMX controller. Blackout, static, dimmer and strobe are included.
Additional features include built-in automated and sound-activated programs via master/slave or DMX. Up to 31 units can be linked master/slave for a color-changing runway effect.
Highlights
-
Compact, linear wash light designed for uplighting applications or great eye-candy effects
-
Increase effects by power linking multiple units together to create runway chases
-
Create coordinated light shows by linking other COLORstrip&trade,, and COLORstrip&trade, Mini fixtures in Master/Slave mode
-
Convenient, wireless non-DMX control using the optional IRC-6 remote
-
Save time running cables and extension cords by power linking multiple units
-
Fits best in the CHS-60 VIP Gear Bag
Specifications
- DMX Channels:4
- DMX Connectors:3-pin XLR
- Light Source:192 LEDs (64 red, 64 green, 64 blue) 0.25 W (20 mA), 100000 hours life expectancy
- Beam Angle:37°, x 33°,
- Illuminance:1,192 lux @ 2 m
- Power Linking:20 units @ 120 V, 38 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:38 W, 0.3 A @ 120 V, 60 Hz
40 W, 0.2 A @ 230 V, 50 Hz
- Weight:3.3 lb (1.5 kg)
- Dimensions:19 x 2.1 x 6.1 in (482 x 52 x 155 mm)
- Approvals:CE, MET
- Optional Controllers:LED-FS1, IRC-6
WHAT'S INCLUDED
- Power cord
- Hanging bracket with mounting hardware
- Warranty card
- Quick Reference Guide
