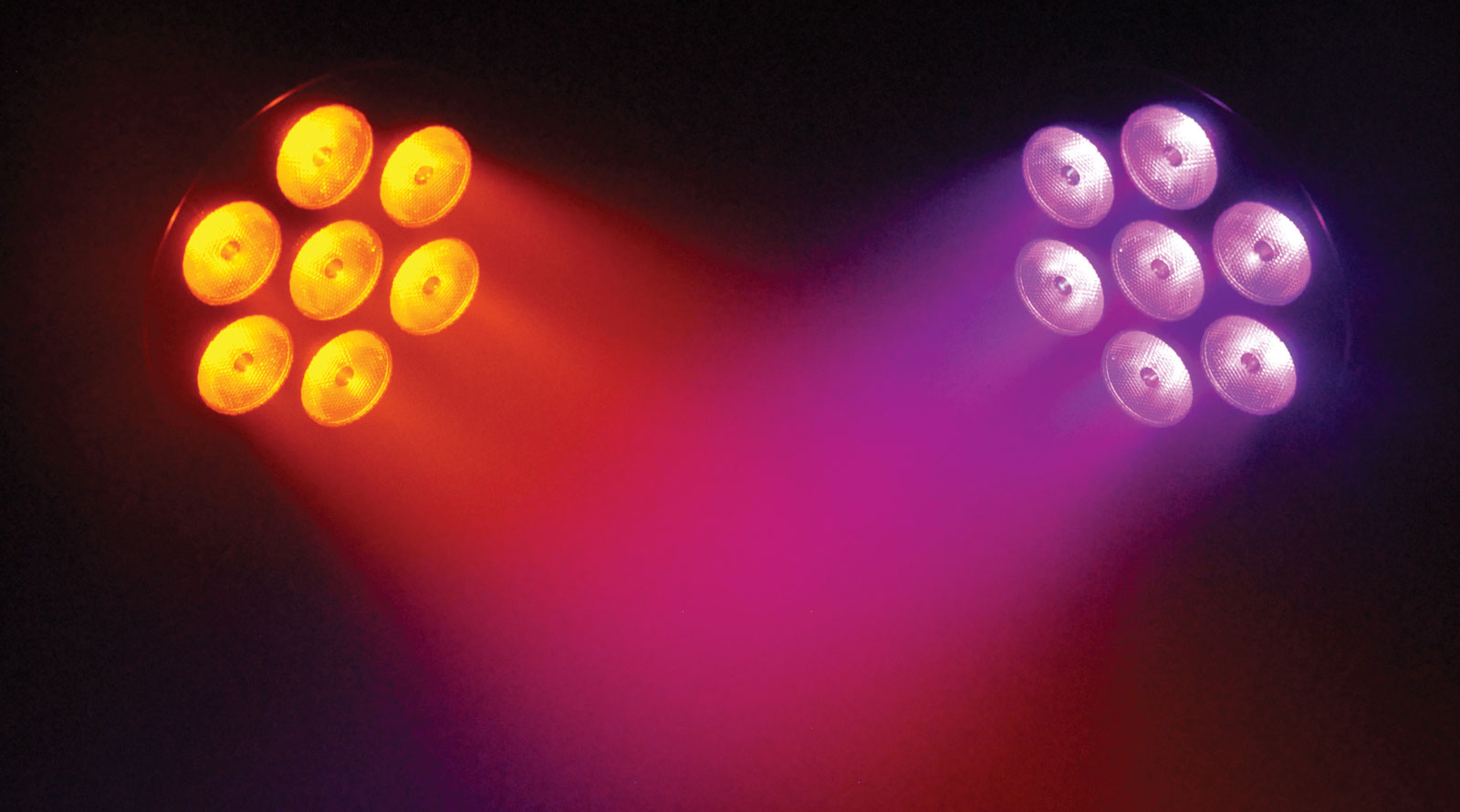

COLORdash Par-Quad 7 is an ultra compact and durable wash light that fits in places where other fixtures cannot. Seven quadcolored RGBA LEDs project deeply saturated colors and variations of white at a variety of preset Color Temperatures and without multi-colored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors ease connections and setup. COLORdash Par-Quad 7 also includes a gel frame holder and gel frame.
AT A GLANCE
-
4, 6 or 10 DMX channels
-
Silent flicker-free operation
-
Lightweight, easy to install
-
Metal construction for added durability
SPECIFICATIONS
OPTICAL
- Light Source: 7 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Installed Optics: 20°
- Beam Angle: 18°
- Field Angle: 32.5°
- Illuminance: 434 lux @ 5 m
- PWM Frequency: 600 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 9.59 x 4 x 9.93 in (243 x 101 x 252 mm)
- Weight: 5.4 lb (2.5 kg)
- Exterior Color: Black
- Accessory Holder/Gel Frame Size: 7.5 in/191 mm accessories

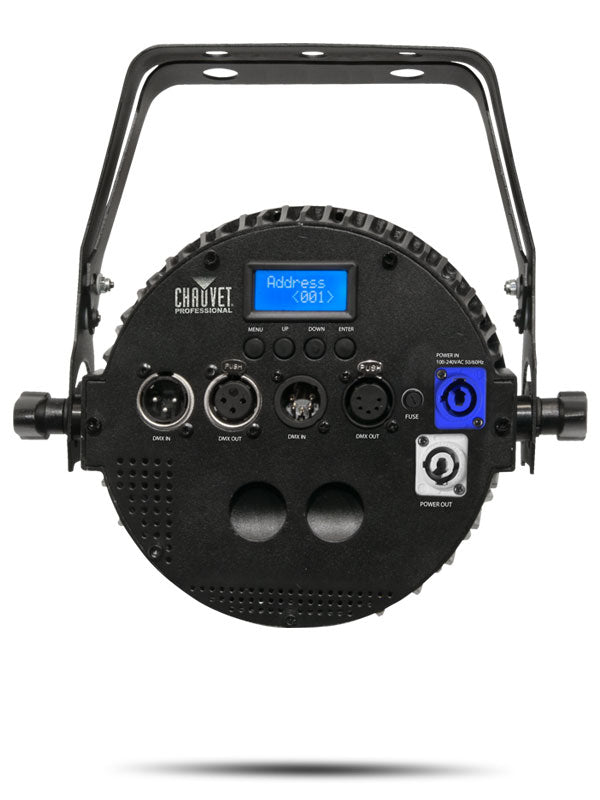

CONNECTIONS
- Power Connection: Local plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX
- DMX Channels: 4, 6 or 10
- Modes/Personalities: 3 personalities (4, 6, 10)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 21 units @ 120 V; 36 units @ 208 V; 39 units @ 230 V
- Power and Current: 73 W, 0.60 A @ 120 V, 60 Hz
- Power and Current: 73 W, 0.36 A @ 208 V, 50 Hz
- Power and Current: 74 W, 0.35 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
WHAT'S INCLUDED
- COLORdash Par-Quad 7
- NEURIK POWERCON CHORD
- Gel frame holder (7.5 in/191 mm accessories)
- Gel frame
