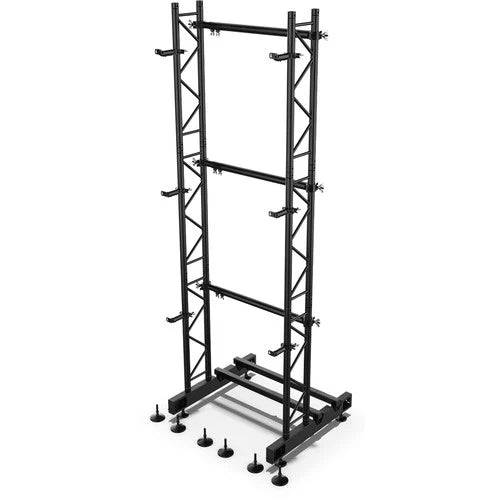

CHAUVET VIDEO GROUNDSUPPORT2KIT - Chauvet Professional Video GROUNDSUPPORT2KIT Floorstanding Video Wall Support for F Series Displays

Roll over image to zoom in Click on image to zoom

CHAUVET VIDEO GROUNDSUPPORT2KIT - Chauvet Professional Video GROUNDSUPPORT2KIT Floorstanding Video Wall Support for F Series Displays

Name: CHAUVET VIDEO GROUNDSUPPORT2KIT - Chauvet Professional Video GROUNDSUPPORT2KIT Floorstanding Video Wall Support for F Series Displays
Brand: CHAUVET VIDEO
SKU: GROUNDSUPPORT2KIT
Price: 6625.99 CAD
Availability: InStock

CHAUVET VIDEOSKU: GROUNDSUPPORT2KIT

Price:

$6,625.99

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

Video Wall Ground Support 2 Kit.

FEATURES

Complete ground support solution for stacking video wall on the floor
Works for walls between 4.92 ft (1.5 m) and 8.2 ft (2.5 m) wide and as high as 9.85 ft (3 m) tall; combine additional groundsupport2kits to achieve wider walls
Use multiple kits to stack wider video walls
Support for flat and concave video walls, including 5° and 10° curves

Dimensions: 10.24 x 3.28 x 3.28 ft (3.12 x 1 x 1 m)
Weight (total with case): 322 lb (146 kg)
Weight (ground support without case): 165 lb (74 kg)
Weight (empty case): 157 lb (71 kg)
Exterior Color: Black
Housing Material: Aluminum extrusion and Steel
Maximum vertical stack supported: 3 m tall
Minimum width supported: 1.5 m wide
Ballast needed per 1 M height stack: 100 lb (45 kg)
Ballast needed per 2 M height stack: 175 lb (80 kg)
Ballast needed per 3 M height stack: 250 lb (113.4 kg)

Create a video wall at your next gig with your F series video panels and the CHAUVET DJ Ground Support 2 Kit Floorstanding Video Wall Support. It is designed for use with CHAUVET PROFESSIONAL F2, F3, F4IP, F5IP, and Vivid 4 LED panels to create a floorstanding video wall 4.92 to 8.2' wide and up to 9.85' tall. Video walls of greater width can be achieved with additional Ground Support 2 Kits.

A dual-function rig bar is required to support each column of displays that make up your video wall. Ballast is also required, the weight of which is dependent on the overall height of your video wall. To simplify transportation of your system, a road case is included.

Features

For Use with CHAUVET F Series Panels
Supports Video Walls up to 8.2' Wide
Supports Video Walls up to 9.85' Tall
Includes Road Case
Aluminum & Steel Construction

Specifications

Supported Models	CHAUVET PROFESSIONAL F2, F3, F4IP, F5IP, and Vivid 4 Video Panels
Screen Size Supported	Width: 4.92 to 8.2' / 1.5 to 2.5 m Height: Up to 9.85' / 3 m
Required Accessories	One DRB-F50CM or DRB-F100CM per Display Column
Ballast	Required for 3.28' / 1 m Stack Height: 100 lb / 45 kg Required for 6.56' / 2 m Stack Height: 175 lb / 80 kg Required for 9.84' / 3 m Stack Height: 250 lb / 113.4 kg
IP Rating	IP65 Rated for Temporary Outdoor Use
Certification	CE, as per Manufacturer
Ambient Temperature	-4 to 140°F / -20 to 60°C
Construction Material	Aluminum Extrusion and Steel
Dimensions	3.45 x 10.24 x 3.28' / 1.05 x 3.12 x 1 m (Excluding Feet)
Weight	Ground Support Without Case: 165 lb / 74 kg Empty Case: 157 lb / 71 kg
