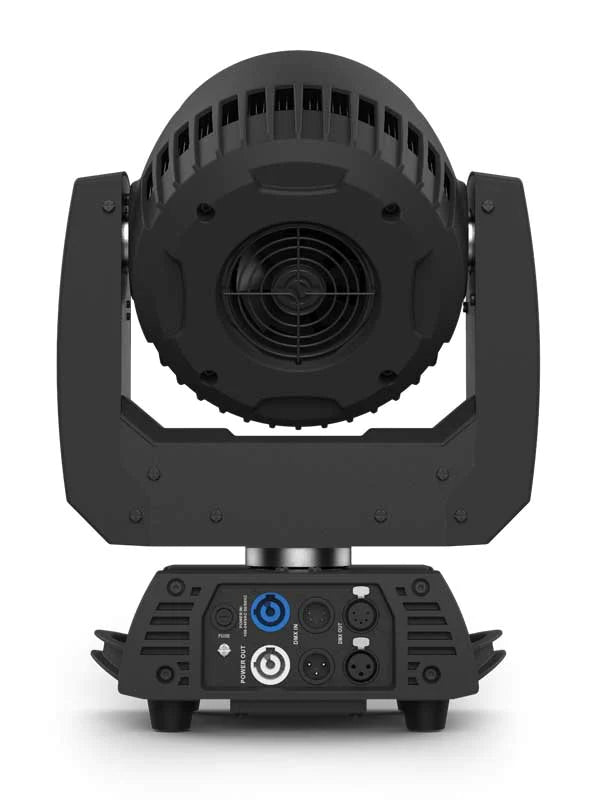

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.
- Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- 19 RGBW LEDs, 25 W each
- 3- and 5-pin DMX input/output connections
- 5 zones of LED control for pixel mapping control
- Unique lens design for excellent color blending
- Fast, smooth pan and tilt movement
- RDM enabled for remote addressing and trouble shooting
- Selectable LED maximum output to match legacy Rogue R2 Washes
- 6 distinct dimming modes for advanced control
- Omega mounting bracket, fits all Rogue and Maverick fixtures
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility
Specifications
Optical
- Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 8° to 30°
- Field Angle: 12° to 49°
- Zoom Angle: 12° to 49°
- Lumens – Source: 10,300
- Lumens – Output: 7,300
- Illuminance (12°): 10,000 lux @ 5 m
- Illuminance (49°): 840 lux @ 5 m
- PWM Frequency: 1,200 Hz
Dynamic Effects
- Pan and Tilt: 540°/230°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
Construction / Physical
- Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
- Weight: 22.8 lb (10.3 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
Connections
- Power Connection: Edison (Local) plug to Neutrik® powerCON®
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 33, 54, or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
- Power and Current: 346 W, 2.8 A @ 120 V, 60 Hz
- Power and Current: 337 W, 1.6 A @ 208 V, 60 Hz
- Power and Current: 342 W, 1.4 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET
- IP Rating: IP20, dry location
What's Included
- Rogue R2X Wash
- Neutrik® powerCON® power cord
- Omega bracket with mounting hardware
LED Moving Wash LED Source:19 x 25W RGBW Quad Colour
Zoom Angle: 12° to 49° (motorized)
Illuminance (12°): 10,000 lux @ 5m
Illuminance (49°): 840 lux @ 5m
Color Temperature (range): 2800K to 10000K
Dimming Modes: 6
Bubble lens design for smooth colour blending
5 zones of LED control for amazing eye candy effects
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
DMX Channels: 15, 17, 22, 33, 54 or 56
Data Connections: 3- and 5-pin XLR
