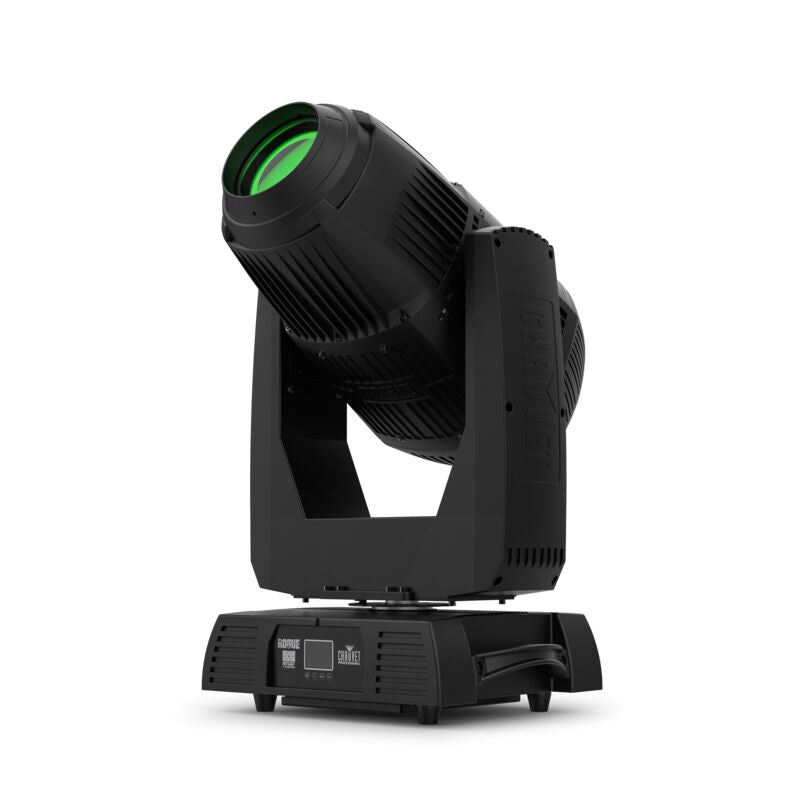

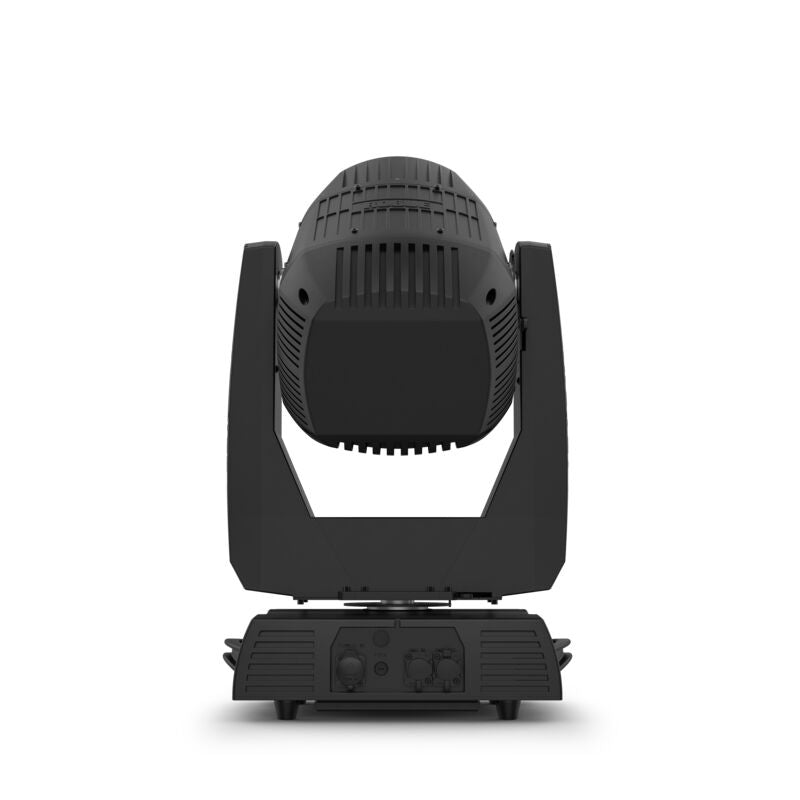

CHAUVET PRO ROGUE-OUTCAST1-HYBRID - outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events.

Rogue Outcast 1 Hybrid is an outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events. Powered by an intense 400W lamp, Rogue Outcast 1 Hybrid delivers a 6500 K output with tight beam angles of 1° to 5° in Beam Mode and a zoom range of 2.2° to 29.1° in Spot Mode and 4.9° to 28.3° in Wash Mode for maximum visual impact. This feature-packed unit offers 1 rotating and 1 static gobo wheel, 2 individually controllable 8 and 5-facet layerable prisms, and a 14-hue color wheel for solid and split colors. Control is over DMX and RDM.

• Fully featured, IP 65 rated, high powered Spot/Beam/Wash combination fixture with an USHIO 400W, 6500K with 6000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, and linear zoom

• Rugged housing designed to withstand the elements in a temporary outdoor setting

• Individually controllable and layerable 6 facet linear and 8 facet round prisms for maximizing visual impact

• Frost and beam flattening options for even light distribution

• Tight 2° narrow beam angle for focused air effects

• Linear zoom of 1 ° to 15.3° in beam mode, 2.2° to 29.1° in spot mode and 4.9° to 28.3° in wash mode for coverage in any application

• 9 rotating and 13 static gobos for massive visual effect

• DMX and RDM protocol control

• True 1 compatible power input

• OPTICAL

  • Light Source: USHIO NSL-400 W lamp, 6632 K, 6,000 hours life expectancy
  • Color Temperature (at full): 6483 K
  • Beam Angle: 2.2° to 12.4° (Spot mode)
  • Field Angle: 4.3° to 24.3° (Spot mode)
  • Cutoff Angle: 5.2° to 29.1° (Spot mode)
  • Beam Angle: 1° to 5.2° (Beam mode)
  • Field Angle: 1.8° to 12.6° (Beam mode)
  • Cutoff Angle: 2.1° to 15.3° (Beam mode)
  • Beam Angle: 4.9° to 18° (Wash mode)
  • Field Angle: 9.3° to 25.6° (Wash mode)
  • Cutoff Angle: 12.4° to 28° (Wash mode)
  • Zoom Range (Spot mode): 2.2° to 29.1°
  • Zoom Range (Beam mode): 1° to 15.3°
  • Zoom Range (Wash mode): 4.9° to 28.3°
  • Lumens – Source: 14,575
  • Lumens – Output: 9,263
  • Illuminance (4.3°): 209326 lux @ 5 m (Spot mode)
  • Illuminance (24.3°): 5742 lux @ 5 m (Spot mode)
  • Illuminance (1.8°): 123,124 lux @ 15 m (Beam mode)
  • Illuminance (12.6°): 3,517 lux @ 15 m (Beam mode)
  • Illuminance (9.3°): 17,118 lux @ 5 m (Wash mode)
  • Illuminance (25.6°): 1,570 lux @ 5 m (Wash mode)



  DYNAMIC EFFECTS

  • Pan and Tilt: 540°/260°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
  • Colors: 13 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating glass): 15.9 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism: 6 Facets, motorized, rotating
  • Prism: 8 Facets, motorized, rotating
  • Move-in-Black: Yes



  CONSTRUCTION / PHYSICAL

  • Dimensions: 15.91 x 12.20 x 30.16 in (404 x 310 x 766 mm)
  • Weight: 83.8 lb (38 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast



  CONNECTIONS

  • Power Connection: Bare-wired to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP rated
  • Cable Length (power): 5 ft (1.5 m)



  CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 20 or 25
  • Modes/Personalities: 2 personalities (20, 25)



  ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 514 W, 4.329 A @ 120 V, 60 Hz
  • Power and Current: 513 W, 2.501 A @ 208 V, 60 Hz
  • Power and Current: 520 W, 2.267 A @ 230 V, 50 Hz



  CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)



  WHAT'S INCLUDED

  • Rogue Outcast Hybrid IP
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Quick Reference Guide
