RDM and 5-pin DMX Opto-Splitter Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present Control Protocol: DMX, RDM Pass-thru Modes: 2 (1x8, 2x4).

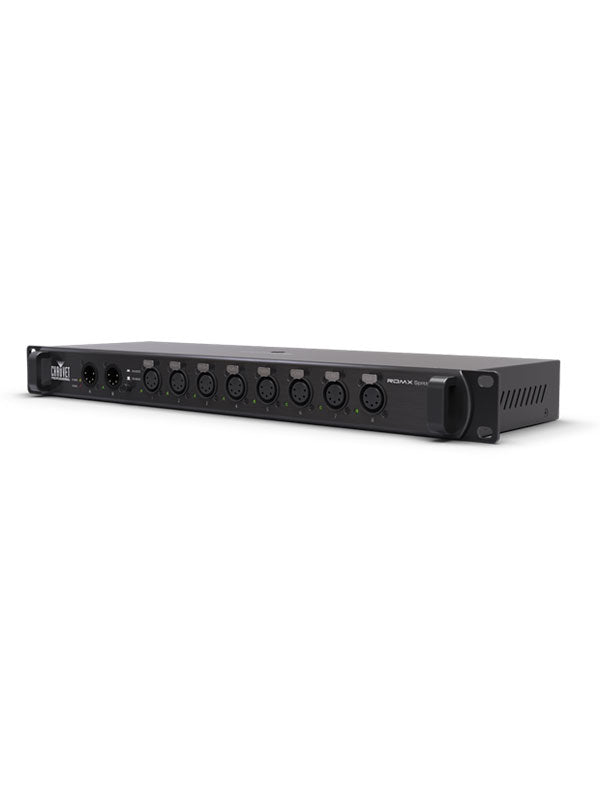

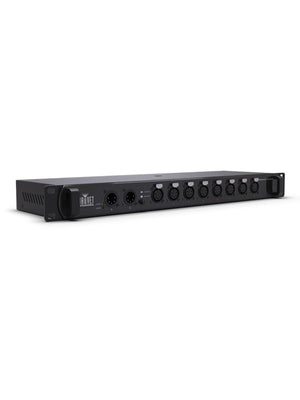

RDMX Splitter 8 is a versatile RDM and 5-pin DMX opto-splitter with a rugged, durable housing. It features 8 outputs and 2 inputs, so it can instantly go from a 1×8 splitter to a 2×4 splitter for two different universes. To simplify installation next to existing fixtures, PowerCON power linking is also supported to make it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack or trust-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.
AT A GLANCE
- Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter
- Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever
- Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories
- Electrical isolation between inputs and outputs up to 1,000 V between ports
- PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present
OPTICAL
- Dimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)
- Weight: 4.2 lb (1.9 kg)
- Exterior Color: Black
- Housing Material: Steel and aluminum
- Rackmount: 1U
CONNECTIONS

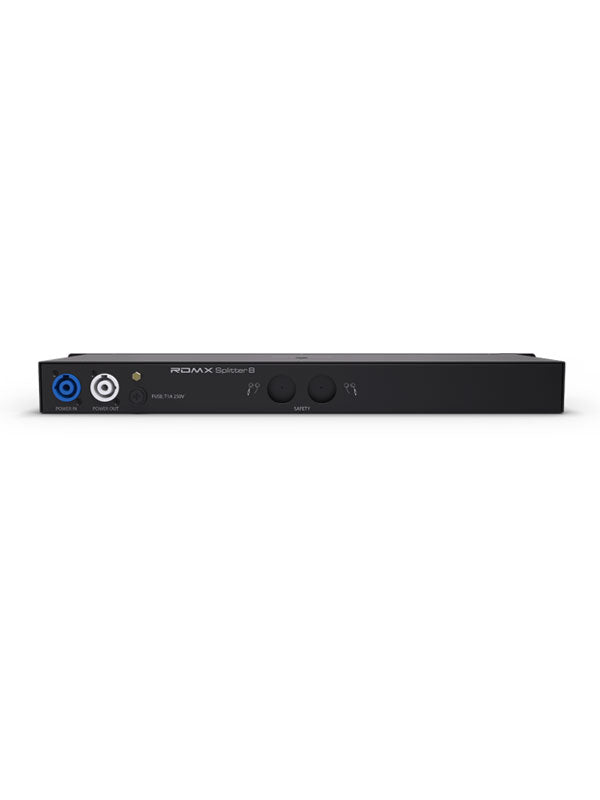

- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Device Data Inputs: 5-pin XLR (2 total)
- Device Data Outputs: 5-pin XLR (8 total)
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM Pass-thru
- Modes: 2 (1x8, 2x4)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 15A
- Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
