Description
Designed to perform as the brightest outdoor-rated LED ellipsoidal fixture available anywhere, capable of projecting an even field of high CRI light for superior gobo projection with exceptionally long reach. Compatibility with standard Ovation lenses, integrated GR-1 Gobo Rotator power/data port, and dedicated Focus Mode button make for convenient operation. 3000K Warm White output with smooth 16-bit dimming to the very bottom of selectable dimming curves along with selectable PWM ensure brilliant performance both live and on camera.

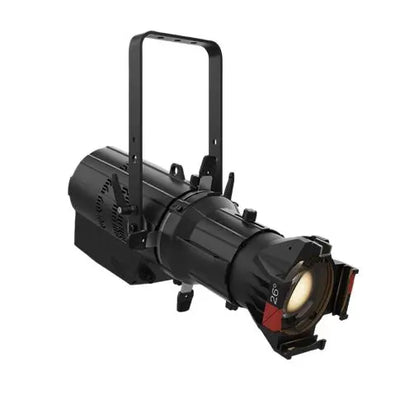

Chauvet Professional Ovation E-4WW IP LED Ellipsoidal Features:
- Warm white ERS-style fixture with exceedingly bright output.
- Fully IP65 rated for seasonal use indoors or out.
- Use of standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture.
- Ultra-smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
- Flat, even field of light for superior gobo projection with tremendous color rendering.
- Dedicated power/data port for Ovation GR-1 Gobo Rotator.
Optical
Light Source: 1 LED (WW) 400W, 50,000 hours life expectancy
Color Temperature (at full): 3200 K
CRI: 97.8
Beam Angle (w/5° lens): 6.9°
Beam Angle (w/10° lens): 9.9°
Beam Angle (w/14° lens): 13.6°
Beam Angle (w/19° lens): 17°
Beam Angle (w/26° lens): 18.9°
Beam Angle (w/36° lens): 25.2°
Beam Angle (w/50° lens): 38.7°
Beam Angle (w/15°–30° lens)(Narrow): 12.3°
Beam Angle (w/15°–30° lens)(Wide): 20.1°
Beam Angle (w/25°–50° lens)(Narrow): 21.2°
Beam Angle (w/25°–50° lens)(Wide): 29.2°
Field Angle (w/5° lens): 9.3°
Field Angle (w/10° lens): 12.5°
Field Angle (w/14° lens): 16.6°
Field Angle (w/19° lens): 21°
Field Angle (w/26° lens): 27.1°
Field Angle (w/36° lens): 36.1°
Field Angle (w/50° lens): 53.1°
Field Angle (w/15°–30° lens)(Narrow): 17.1°
Field Angle (w/15°–30° lens)(Wide): 30.4°
Field Angle (w/25°–50° lens)(Narrow): 28.1°
Field Angle (w/25°–50° lens)(Wide): 41.4°
Dimming Modes: 4
Lumens (w/5° lens): 13,989
Lumens (w/10° lens): 16,250
Lumens (w/14° lens): 17,524
Lumens (w/19° lens): 16,766
Lumens (w/26° lens): 21,213
Lumens (w/36° lens): 21,219
Lumens (w/50° lens): 20,831
Lumens (w/15°–30° lens)(Narrow): 15,302
Lumens (w/15°–30° lens)(Wide): 19,171
Lumens (w/25°–50° lens)(Narrow): 21,049
Lumens (w/25°–50° lens)(Wide): 20,936
Illuminance (w/5° lens): 45,552 lux @ 5 m
Illuminance (w/10° lens): 25,479 lux @ 5 m
Illuminance (w/14° lens): 15,080 lux @ 5 m
Illuminance (w/19° lens): 9,627 lux @ 5 m
Illuminance (w/26° lens): 8,883 lux @ 5 m
Illuminance (w/36° lens): 4,983 lux @ 5 m
Illuminance (w/50° lens): 2,199 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 15,632 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 6,829 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 7,668 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 3,733 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25KHz
Dynamic Effects
Dimmer: Electronic
Shutter/Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction/Physical
Dimensions (fixture only): 19.5 x 11.2 x 19.2 in (496 x 284.9 x 487 mm)
Dimensions (w/5° lens extended): 40.4 x 14.5 x 19.2 in (1026 x 368 x 487 mm)
Dimensions (w/10° lens extended): 32.2 x 12.4 x 19.2 in (817 x 314 x 487 mm)
Dimensions (w/14° lens extended): 28.9 x 11.9 x 19.2 in (734 x 302 x 487 mm)
Dimensions (w/19° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
Dimensions (w/26° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
Dimensions (w/36° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
Dimensions (w/50° lens extended): 26 x 11.9 x 19.2 in (660 x 302 x 487 mm)
Dimensions (w/15°–30° lens): 32.3 x 11.9 x 19.2 in (820 x 302 x 487 mm)
Dimensions (w/25°–50° lens): 25.1 x 11.9 x 19.2 in (637 x 302 x 487 mm)
Weight (fixture only): 21.6 lb (9.79 kg)
Weight (w/5° lens): 26.4 lb (11.9 kg)
Weight (w/10° lens): 24.8 lb (11.2 kg)
Weight (w/14° lens): 26.8 lb (12.1kg)
Weight (w/19° lens): 25.6 lb (12.1kg)
Weight (w/26° lens): 25.6 lb (12.1kg)
Weight (w/36° lens): 25.6 lb (12.1kg)
Weight (w/50° lens): 25.6 lb (12.1kg)
Weight (w/15°–30° lens): 30.4 lb (13.7kg)
Weight (w/25°–50° lens): 27.4 lb (12.4kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

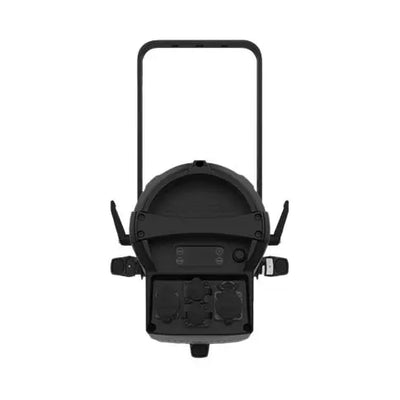

Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 2, 3, 4, or 7
Modes/Personalities: 4 personalities (2, 3, 4, 7)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 3 units @ 120 V; 6 units @ 208 V; 6 units @ 230 V; 7 units @ 240 V
Power and Current: 433 W, 4.34 A @ 100 V, 60 Hz
Power and Current: 428 W, 3.57 A @ 120 V, 60 Hz
Power and Current: 416 W, 2.0 A @ 208 V, 60 Hz
Power and Current: 416 W, 1.81 A @ 230 V, 50 Hz
Power and Current: 413 W, 1.73 A @ 240 V, 60 Hz
Certifications/Qualifications
CE, MET, UKCA, RoHS
IP Rating: IP65, temporary outdoor/wet use
Color Temperature (at full): 3200 K * CRI: 97.8 Dimming Modes: 4 * Dimmer: Electronic
Shutter/Electronic * Strobe Rate: 0 to 30 Hz
Color Temperature Presets: No
Dim Modes: 4 * Dim Curves: 4
Built-in Automated Programs: Yes Beam Angle (w/26° lens): 18.9°
Field Angle (w/26° lens): 27.1°
Lumens (w/26° lens): 21,213
Illuminance (w/26° lens): 8,883 lux @ 5 m
Housing Material: Aluminum die-cast
Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Power Input/Output: Seetronic Powerkon IP65 * Data Connectors: 5-pin XLR
Weight (fixture only): 21.6 lb (9.79 kg)
Dimensions (fixture only): 19.5 x 11.2 x 19.2 in (496 x 284.9 x 487 mm)
