Description

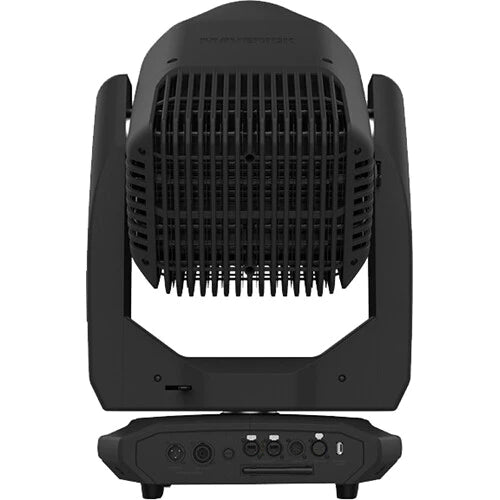

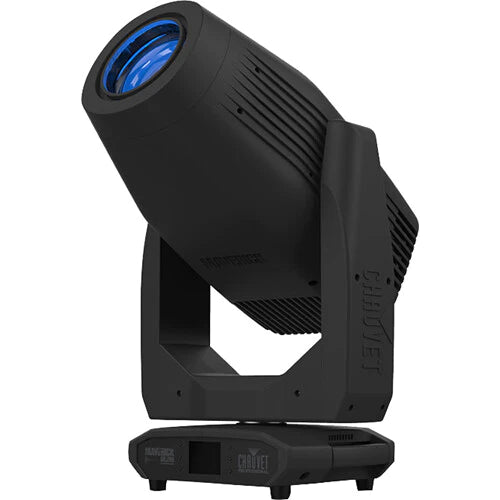

Lighting designers looking for a completely silent, fully featured moving head will be thrilled with the CHAUVET PROFESSIONAL Maverick Silens 2 Profile, a flexible, moving head LED light fixture designed to perform a wide variety of functions in theatrical, house of worship, and studio applications.
Ideal for use in theaters and studios, the completely fanless fixture operates in total silence without comprimise. The instrument is powered by a bright, 500W, cool-white LED and a 60W RGB LED, which combine for an illuminance of 29,598 lux at 16.4' and motorized zoom angles ranging from 5 to 58°. It features a four-blade framing shutter system with rotation, a color wheel, two rotating gobos, as well as motorized focus, a 5-facet prism, and frost and iris effects. With variable strobe, fast and accurate head movements, movement macros, move-in-black functionality, and more, this fixture is capable of producing a myriad of precisely shaped beam to energize your show.
The Maverick Silens 2 Profile provides CMY and CTO color mixing with a color temperature of 6000K, a color temperature of 6000K and a CRI of 95.6. Use the 16-bit electronic dimming to create a palette of vibrant colors with smooth fades. The color wheel comes with six colors plus white, split colors, and is capable of continuous or variable-speed scrolling. The two gobo wheels include one wheel with seven rotating gobos plus an open position, and another wheel with eight positions plus open, as well as continuous or variable-speed scrolling.
The unit can be controlled via DMX, W-DMX, sACN, and Art-Net protocols and features two personalities (32 or 41-channels). The Maverick Force 2 Profile ships with two Omega brackets with mounting hardware and a Seetronic Powerkon IP65 power cord.
Features
- Completely silent, fully featured 560W 95+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, an animation wheel, 10:1 zoom, a prism, variable frost, as well as static and rotating gobo wheels.
- 100% convection cooled for zero fan noise along with silent motion and effects
- 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
- Variable CMY + CTO color mixing system to create a wide pallet of colors
- One rotating and one static gobo wheel with unique, theatrical based designs
- Interchangeable gobos between rotating and static wheels
- Variable frost system
- Plus or minus 60-degree rotation framing shutter system to allow for better framing positioning
- Animation wheel for enhanced visual effects
- Iris for total beam control
- RDM control over DMX for fixture reporting
- 5° to 58° zoom range for variable beam sizes
- True 1 compatible power input and throughput
- Battery backup display with auto-rotate depending on fixture orientation
SPECIFICATIONS
OPTICAL
- Light Source: 1 LEDs (CW) 500 W, (15.5 A), 6000 K, 30,000 hours life expectancy
- Light Source: 1 LED (RGB) 60 W, (3.2 A), 50,000 hours life expectancy
- Color Temperature (at full): 6000 K
- CRI: 95.6
- Beam Angle: 5° to 50°
- Field Angle: 6° to 54°
- Zoom Range: 5° to 58°
- Cutoff Angle: : 7° to 58°
- Lumens – Source: 20,672
- Lumens – Output: 10,549
- Illuminance (6.4°): 29,598 lux @ 5 m
- Illuminance (53.7°): 640 lux @ 5 m
- Selectable PWM: 20,000, 40,000
DYNAMIC EFFECTS
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 6 + white, split colors, continuous scroll at variable speeds
- Colors: CMY flags, CTO flag, color correction
- Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm (image)
- Effect Wheel: 1 effect
- Framing Shutters: Yes
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Variable Frost - Motorized
- Iris: Motorized – 15 Leaf
- Prism: 5 Facets, round, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
CONSTRUCTION / PHYSICAL
- Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
- Weight: 75.5 lb (34.4 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant Polymer
CONNECTIONS
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, DMX, CRMX, RDM, sACN
- DMX Channels: 32 or 41
- Art-Net Channels: 32 or 41
- Modes/Personalities: 2 personalities (32, 41)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
- Power and Current: 650 W, 6.53 A @ 100 V, 60 Hz
- Power and Current: 640 W, 5.45 A @ 120 V, 60 Hz
- Power and Current: 639 W, 3.10 A @ 208 V, 60 Hz
- Power and Current: 648 W, 2.82 A @ 230 V, 50 Hz
- Power and Current: 654 W, 2.75 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Maverick Silens 2 Profile
- Seetronic Powerkon IP65 power cord
- 2 Omega brackets with mounting hardware
- Gel Frame Holder and Gel Frame
OPTIONAL ACCESSORIES
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- IP Rated Seetronic® Powerkon Extensions
- DMX cables
- Ethernet cables
Color Temperature (at full): 6000 K * CRI: 95.6
Beam Angle: 5° to 50°, Field Angle: 6° to 54° , Zoom Angle: 6° to 54°
Lumens – Source: 20,672 Lumens – Output: 10,549
Illuminance (6°): 29,598 lux @ 5 m
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 6 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag, color correction
Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing,
slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 glass), continuous scroll at variable speeds
Framing Shutters: Yes
Dimmer / Shutter/Strobe: Electronic
Zoom/ Focus/ Iris: Motorized
Frost 1: Variable Frost - Motorized
Prism: 5 Facets, round, motorized, rotating
Strobe Rate: 0 to 20 Hz
Dimensions: 17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
Weight: 75.5 lb (34.4 kg)
