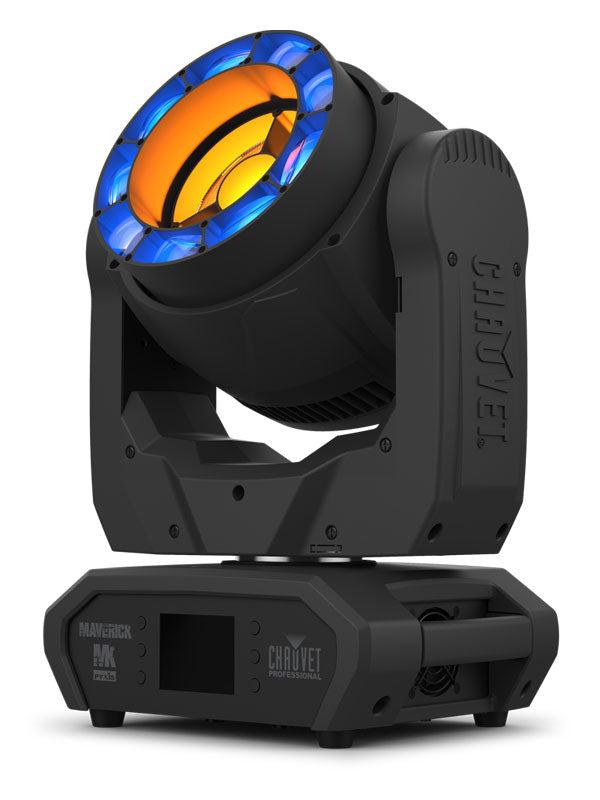

Maverick MK Pyxisempowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.
AT A GLANCE
A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
A (9) 15 W RGBW LED outer ring of LEDs with a 4.9°— 58.4° zoom range and pixel control for wash and narrow effects
A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
Virtual Color wheel with instantaneous access to 21 colors
Built in color effects for quick design possibilities
Built in virtual gobo wheel with background colors for impressive atmospheric effects
Quiet operation for a wide range of installation situations
DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
RDM enabled for remote addressing and trouble shooting
Converts TCP/IP to DMX for shorter data cable runs
2.8°— 58.4° zoom range for variable beam sizes
True 1 compatible power input
Battery backup touchscreen display with auto rotate depending on fixture orientation
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
SPECIFICATIONS
OPTICAL
Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
DMX Channels Single Mode: 26,66,113,131
DMX Channels Dual Mode – Function: 13,26,33
DMX Channels Dual Mode – Pixel: 30,40,80
Art-Net Channels Single Mode: 26,66,113,131
Art-Net Channels Dual Mode – Function: 13,26,33
Art-Net Channels Dual Mode – Pixel: 30,40,80
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V;7 units @ 208 V; 8 units @ 230 V
Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz
Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz
Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE
IP Rating: IP20, dry location
WHAT'S INCLUDED
Maverick PYXIS
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamp:CTC-50HC, CTC-50HCN
Safety Cable:SC-07
DMX Cables
IP Rated Seetronic® Powerkon Extensions
Ethercon extension cables
UPLOAD 08 software uploader
High Powered Beam/Wash Effect Fixture Light Source:9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy) Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy Zoom Angle: 7° to 45° Illuminance (center pixel / outer ring): 27,560 lux @ 5 m Illuminance (center pixel): 20,300 lux @ 5 m Illuminance (outer ring): 7,330 lux @ 5 m Dimmer: ElectronicShutter/Strobe: ElectronicZoom: Motorized Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX DMX Channels Single Mode: 26,66,113,131DMX Channels Dual Mode – Function: 13,26,33DMX Channels Dual Mode – Pixel: 30,40,80Art-Net Channels Single Mode: 26,66,113,131 Art-Net Channels Dual Mode – Function: 13,26,33 Art-Net Channels Dual Mode – Pixel: 30,40,80 Data Connections: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
