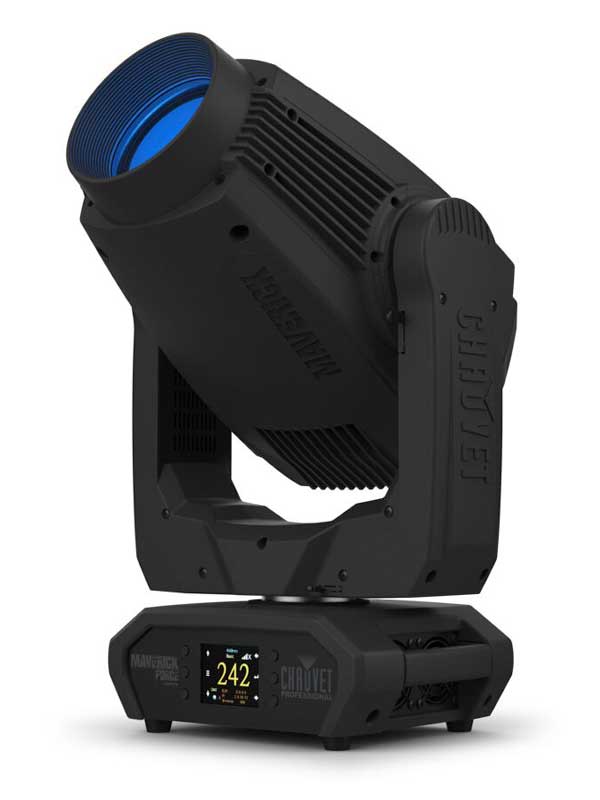

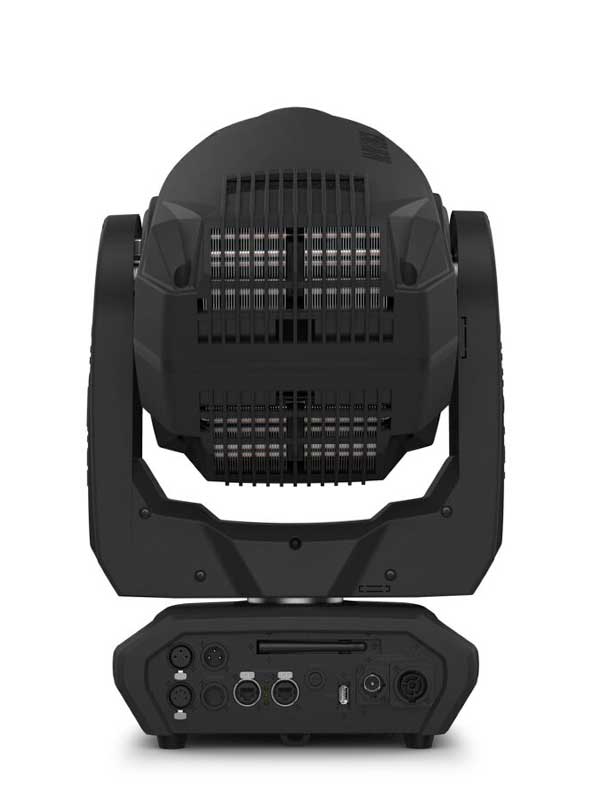

CHAUVET PRO MAVERICK-F2-PROFILE- You gotta watch this video to get it..! Really - Chauvet Professional MAVERICK-F2-PROFILE 580W LED Moving Head Profile Fixture

Name: CHAUVET PRO MAVERICK-F2-PROFILE- You gotta watch this video to get it..! Really - Chauvet Professional MAVERICK-F2-PROFILE 580W LED Moving Head Profile Fixture
Brand: CHAUVET PRO
SKU: MAVERICK-F2-PROFILE
Price: 15166.99 CAD
Availability: InStock

CHAUVET PROSKU: MAVERICK-F2-PROFILE

Price:

$15,166.99

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

Fully featured, 580 W LED Moving head profile fixture. Maverick Force 2 Profile is a lightweight, tour-grade moving head with a big presence. The powerful unit features an output of over 20,000 lumens and an artillery of speedy effects housed in a deceptively compact frame, under 60lbs. Maverick Force 2 Profile features CMY + CTO color-mixing, a color wheel with a CTB and CRI option, and an extensive zoom range of 7 to over 50 degrees that maintains a flat field of focus even when fully wide. A custom-built framing system containing 4 dual axis shutters with a 120-degree field of rotation, motorized iris, focus, zoom, and frost capabilities, alongside a 5-facet rotating prism give an abundance of tools for beam shaping. Two rotating glass gobo wheels featuring gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

AT A GLANCE

Fully featured, compact and lightweight 580 W LED yoke profile fixture including CMY + CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, 8:1 zoom, a 5 facet prism wheel, and two rotating gobo wheels
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
CRI and CTB filters on color wheel for added flexibility
Two rotating, indexing and interchangeable slot and lock gobo wheels
DMX , WDMX, sACN, and Art-Net for full flexibility of control options
RDM control over DMX for fixture reporting
6.8° to 55.9° zoom range for variable beam sizes
Iris, 5-facet prism and frost for beam control
True 1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation

OPTICAL

Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7055 K, 50,000 hours life expectancy
Color Temperature (at full): 7055 K
CRI: 70.8
CRI with CRI Filter: 89.3
Front Lens Diameter: 127 mm
Beam Angle: 6.8° to 48.1°
Field Angle: 7.6° to 54.9°
Cutoff Angle: 8.4° to 55.9°
Zoom Range: 6.8° to 55.9°
Lumens – Source: 39,000
Lumens – Output: 20,856
Illuminance (7°) 51,865 lux @ 5 m
Illuminance (55.9°) 1,648 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY flags, CTO flag
Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
Gobo Size: Gobo Wheel 2 (rotating): 25.5 mm (outside), 18.5 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement.
Framing Shutter rotation: 120° total rotation.
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL

Dimensions: 15.51 x 10.71 x 26.38 in (394 x 272 x 670 mm)
Dimensions (shipping size): 30.12 x 13.58 x 19.1 in (765 x 345 x 485 mm)
Weight: 57.3 lb (26 kg)
Weight (shipping weight): 61.73 lb (28 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
DMX Channels: 33 or 50
Art-Net Channels: 33 or 50
Modes/Personalities: 2 personalities (33, 50)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 800 W, 8.01 A @ 100 V, 60 Hz
Power and Current: 780 W, 6.41 A @ 120 V, 60 Hz
Power and Current: 764 W, 3.68 A @ 208 V, 60 Hz
Power and Current: 754 W, 3.31 A @ 230 V, 50 Hz
Power and Current: 762 W, 3.19 A @ 240 V, 50 Hz
Power and Current (resting): 102 W, 1.02 A @ 100 V, 60 Hz
Power and Current (resting): 101 W, 0.801 A @ 120 V, 60 Hz
Power and Current (resting): 111 W, 0.532 A @ 208 V, 60 Hz
Power and Current (resting): 123 W, 0.485 A @ 230 V, 50 Hz
Power and Current (resting): 125 W, 0.467 A @ 240 V, 50 Hz
Fuse Size: F13 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC
IP Rating: IP20, dry location
Noise Level (ambient): 37 dB level @ 1 m
Noise Level (static - Full): 47.3 dB level @ 1 m
Noise Level (static - ECO): 40.7 dB level @ 1 m
Noise Level (Static - Auto): 40.9 dB level @ 1 m
Noise Level (Static - Max): 51.7 dB level @ 1 m
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED

Maverick Force 2 Profile
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
Warranty Card
Quick Reference Guide or User Manual

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
DMX cables
Ethercon Extension cables
Flight Case
UPLOAD 08 software uploader
