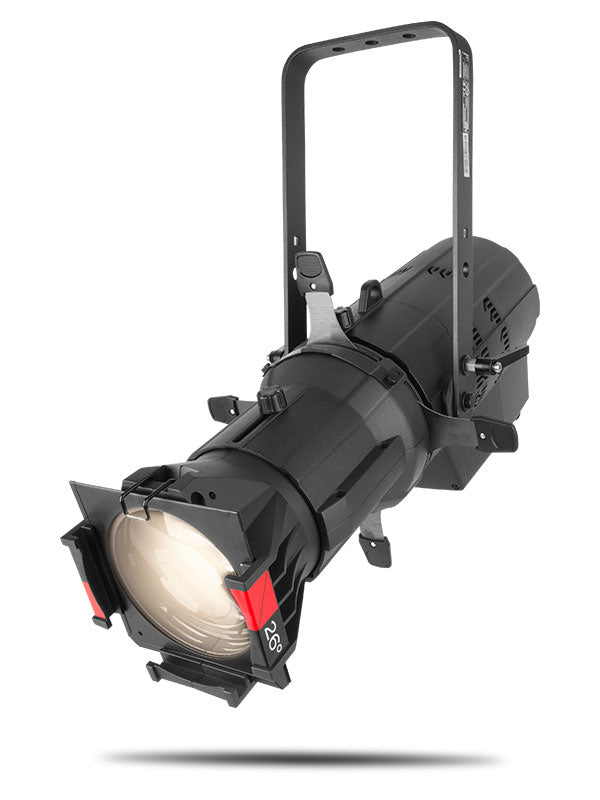

Ovation E-260WW IP - boasts extremely smooth dimming down to the very bottom of the curve

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Our standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750 W HPL. This groundbreaking ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

• Warm white ERS-style fixture with output exceeding a tungsten 750 W source

• Fully IP65 rated for seasonal use indoors or out

• Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture

• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.

• Flat, even field of light for superior gobo projection

• RDM (Remote Device Management) for added flexibility

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3149 K
  • CRI: 96
  • Beam Angle (w/5° lens): 6°
  • Beam Angle (w/10° lens): 8°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 13°
  • Beam Angle (w/26° lens): 16°
  • Beam Angle (w/36° lens): 20°
  • Beam Angle (w/50° lens): 28°
  • Beam Angle (w/15°–30° lens)(Narrow): 12°
  • Beam Angle (w/15°–30° lens)(Wide): 14°
  • Beam Angle (w/25°–50° lens)(Narrow): 21°
  • Beam Angle (w/25°–50° lens)(Wide): 22°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens): 18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 46°
  • Dimming Modes: 4
  • Lumens (w/19° lens): 7,587
  • Lumens (w/26° lens): 10,284
  • Lumens (w/36° lens): 10,121
  • Lumens (w/50° lens): 9,655
  • Illuminance (w/5° lens): 41,400 lux @ 5 m
  • Illuminance (w/10° lens): 23,000 lux @ 5 m
  • Illuminance (w/14° lens): 14,149 lux @ 5 m
  • Illuminance (w/19° lens): 9,256 lux @ 5 m
  • Illuminance (w/26° lens): 6,910 lux @ 5 m
  • Illuminance (w/36° lens): 4,053 lux @ 5 m
  • Illuminance (w/50° lens): 1,703 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 16,827 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 10,626 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 7,210 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 3,295 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz


  DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Color Temperature Presets: No
  • Dim Modes: 4
  • Built-in Automated Programs: Yes


  CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 19.49 x 11.14 x 18.42 in (495 x 342 x 506 mm)
  • Dimensions (w/5° lens extended): 43.58 x 14.17 x 14.48 in (1107 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 34.88 x 12.16 x 12.48 in (886 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 28.7 x 11.14 x 18.42 in (790 x 342 x 506 mm)
  • Dimensions (w/26° lens extended): 23.5 x 13.46 x 19.92 in (597 x 342 x 506 mm)
  • Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 20.2 (9.2 kg)
  • Weight (w/5° lens): 26 lb (11.9 kg)
  • Weight (w/10° lens): 24 lb (11 kg)
  • Weight (w/14° lens): 25.6 lb (11.6 kg)
  • Weight (w/26° lens): 24.4 lb (11 kg)
  • Weight (w/15°–30° lens): 34.2 lb (15.5 kg)
  • Weight (w/25°–50° lens): 31.8 lb (14.4 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

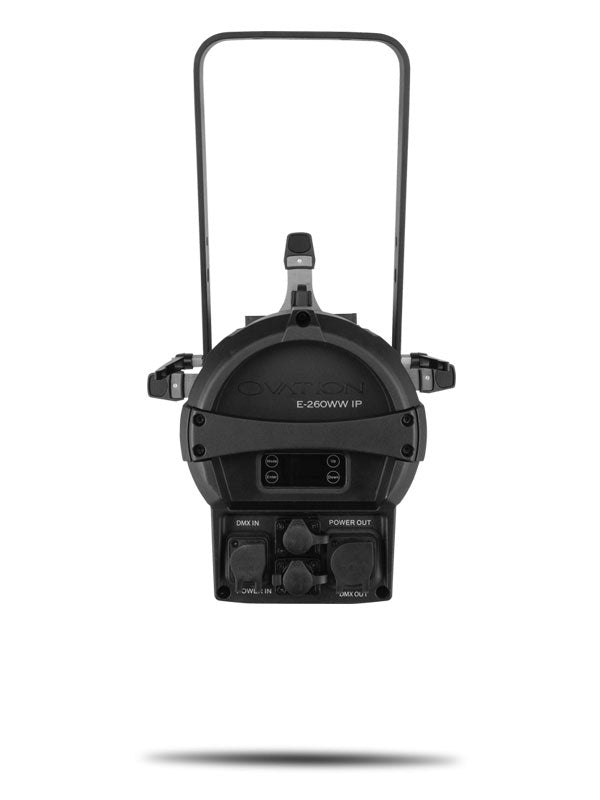

  CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)


  CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 2, 3, 4 or 7
  • Modes/Personalities: 4 personalities (2, 3, 4, 7)


  ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 221 W, 1.85A @ 120 V, 60 Hz
  • Power and Current: 215 W, 1.11 A @ 208 V, 60 Hz
  • Power and Current: 213 W, 1.01 A @ 230 V, 50 Hz


  CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve


  WHAT'S INCLUDED

  • Ovation E-260WW IP
  • IP65 Power cord
