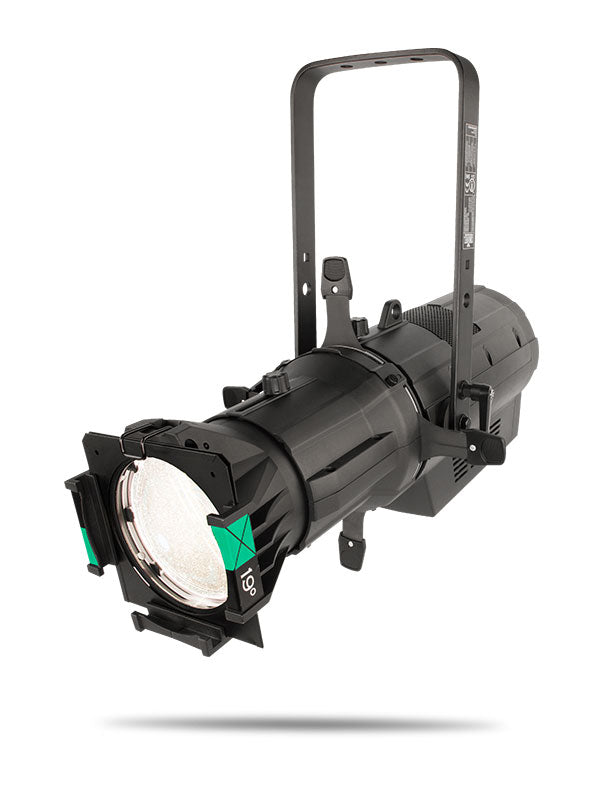

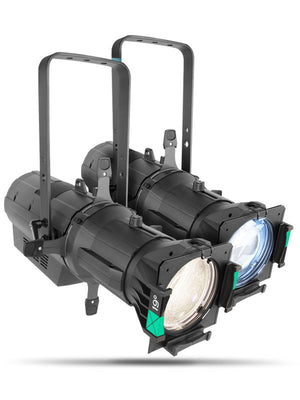

Ovation E-260WW / E-260CW - boasts extremely smooth dimming down to the very bottom of the curve - Chauvet Professional OVATION-E260WW-ENG LED Ellipsoidal

Powered by a single source 260W LED, the Ovation E-260WW is the next step in the evolution of the Ovation series. With an output that exceeds a tungsten 750W light source, this fixture also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection, fully featured control options like Selectable PWM, RDM, and onboard dimming curve selections round out this virtually silent ellipsoidal.

Features

• Warm white ERS style fixture with output exceeding a tungsten 750w source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Specifications

Optical

• Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy.
• Color Temperature (at full): 3149 K
• CRI: 91
• Beam Angle (w/14° lens): 11°
• Beam Angle (w/19° lens): 13°
• Beam Angle (w/26° lens): 16°
• Beam Angle (w/36° lens): 20°
• Beam Angle (w/50° lens): 28°
• Beam Angle (w/15°–30° lens)(Narrow): 12°
• Beam Angle (w/15°–30° lens)(Wide): 14°
• Beam Angle (w/25°–50° lens)(Narrow): 21°
• Beam Angle (w/25°–50° lens)(Wide): 22°
• Field Angle (w/14° lens): 14°
• Field Angle (w/19° lens): 18°
• Field Angle (w/26° lens): 25°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 50°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 46°
• Dimming Modes: 4
• Lumens (w/19° lens): 7,587
• Lumens (w/26° lens): 10,284
• Lumens (w/36° lens): 10,121
• Lumens (w/50° lens): 9,655
• Illuminance (w/14° lens): 13,439 lux @ 5 m
• Illuminance (w/19° lens): 9,256 lux @ 5 m
• Illuminance (w/26° lens): 6,910 lux @ 5 m
• Illuminance (w/36° lens): 4,053 lux @ 5 m
• Illuminance (w/50° lens): 1,703 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 12,430 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 5,339 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 4,997 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 3,295 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 27 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction / Physical

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7 kg)
• Weight (w/26° lens): 19.4 lb (8.80 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
• Weight (w/25°–50° lens): 27 lb (12.25 kg)
• Exterior Color: Black
• Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

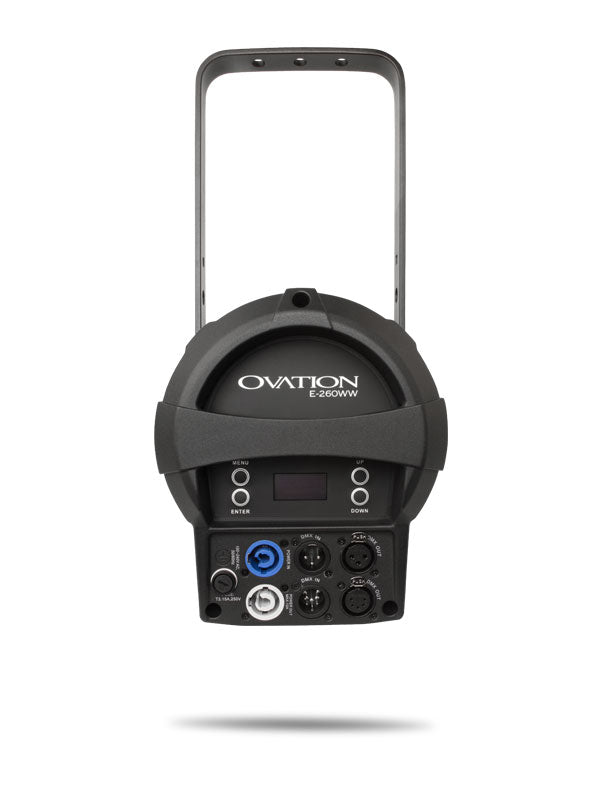

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current: 209 W, 1.655 A @ 120 V, 60 Hz
• Power and Current: 206 W, 1.026 A @ 208 V, 60 Hz
• Power and Current: 204 W, 0.925 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location

What's Included

• Ovation E-260WW
• Neutrik powerCON power cord

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• RDM2go
• Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
• Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos

Required Accessories

• Lens Tube: 19°, 26°, 36°, 50°



LED Ellipsoidal LED Source: 1 x 202W WW LED, (3.6 A) Color Temperature: 3149 K Illuminance (w/19° lens): 9,256 lux @ 5 m Illuminance (w/26° lens): 6,910 lux @ 5 m Illuminance (w/36° lens): 4,053 lux @ 5 m Illuminance (w/50° lens): 1,703 lux @ 5 m Illuminance (w/15°–30° lens): 12,430 lux @5m Illuminance (w/15°–30° lens): 5,339 lux @5m Illuminance (w/25°–50° lens): 4,997 lux @5m Illuminance (w/25°–50° lens): 3,295 lux @ 5 m 16 bit dimming Dimming Modes: 4 Adjustable PWM frequency to avoid flickering on camera RDM for added programming flexibility Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) DMX Channels: 1, 2,3 or 6 Data Connections: 3 or 5-pin DMX Cables Available in a white casing
