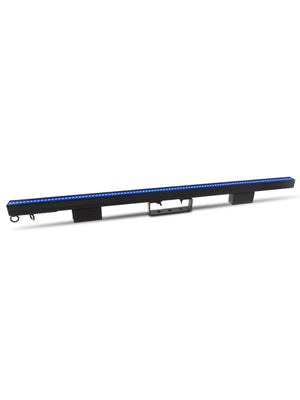

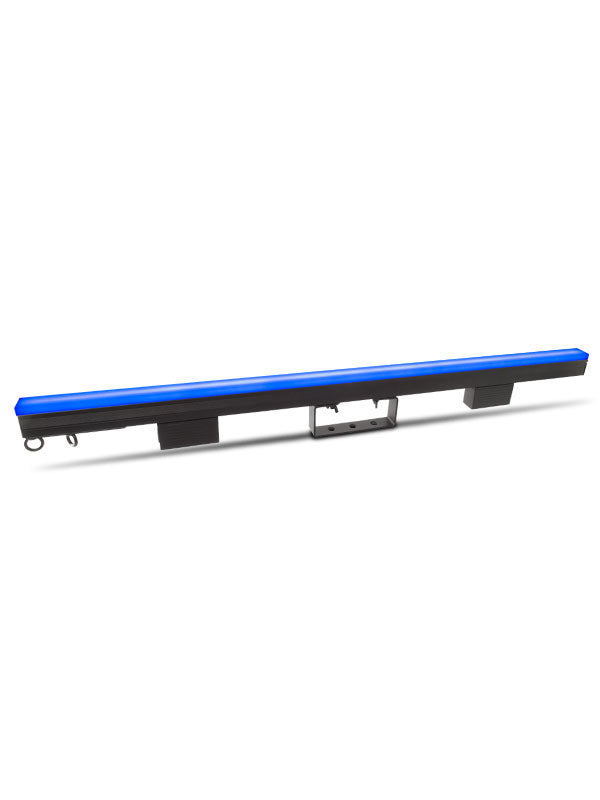

CHAUVET PRO EPIX-STRIP-IP - 1-meter LED strip fixture featuring 100 LEDs in a row - Chauvet Professional EPIX-STRIP-IP Pixel Mapping and Video Strip IP65

OPTICAL

• Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle (with installed square milky filter): 160°
• Viewing Angle (with optional dome filter): 160°
• Illuminance – open: 8,640 NITS
• Illuminance - square milky filter (installed): 2,470 NITS
• Illuminance - black stealth filter (included): 1,455 NITS
• Illuminance - round milky filter (optional): 1,360 NITS
• Pixels: 100 x 1
• Pixel Pitch: 10 mm
• Refresh Rate: 4800 Hz (S-PWM)

CONSTRUCTION / PHYSICAL

• Dimensions (with installed square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
• Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
• Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
• Weight: 6 lb (2.7 kg)
• Exterior Color: Black
• Housing Material: Aluminum

CONNECTIONS

• Data Connectors: 4-pin XLR
• Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
• Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)

CONTROL

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, 150 or 300

ELECTRICAL

• Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
• Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
• Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E113093-1101
• US Safety: UL 8750, UL 1573
• Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166

WHAT'S INCLUDED

• ÉPIX Strip IP 50
• Square milky filter (installed)
• Round milky filter (included in box)
• Black stealth filter (included in box)

REQUIRED ACCESSORIES

• Controller (required): ÉPIX Drive 2000 IP
• Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)

OPTIONAL ACCESSORIES

• ArKaos Media Master Express™ + KN software
• ÉPIX Strip Tour
• ÉPIX Bar Tour
• 4PINIPEXT16IN
• 4PINIPEXT5FT
• 4PINIPEXT50FT
• Seetronic Powerkon IP65 cables
• Seetronic Etherkon IP65 cables.
