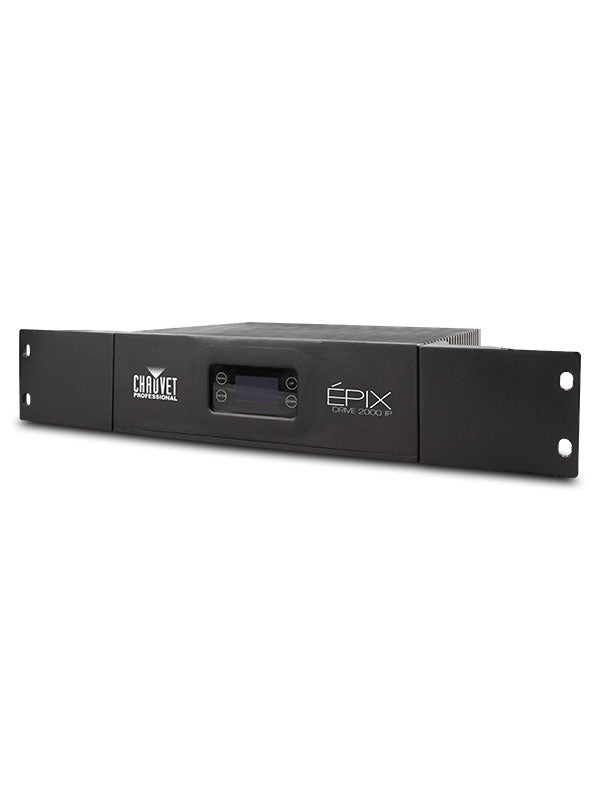

ÉPIX Drive 2000 IP is IP65 outdoor-rated and hosts the processing and power supply for the ÉPIX IP and Tour system. With a maximum capacity of 2000 LEDs, ÉPIX Drive 2000 IP supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX fixtures. Using the new 7 and 8 channel operating modes you can quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks.
AT A GLANCE
The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 2000 LEDs.
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets.
Quickly and easily configure the ÉPIX Drive 2000 IP using the built-in OLED display and touchscreen menu.
Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP).
Supports up to 20 ÉPIX Strip IP, 36 ÉPIX Strip Tours or 12 ÉPIX Bar Tours.
Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000 IP.
Advanced power management design allows you to position the Drive 2000 IP up to 150 ft away from your first fixture (using unshielded cable).
Works with Arkaos Media Master Express and the Kling-net control protocol for a plug-n-play system that requires almost no training to operate.
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
Weight: 12 lb (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum
Rackmount: 2U

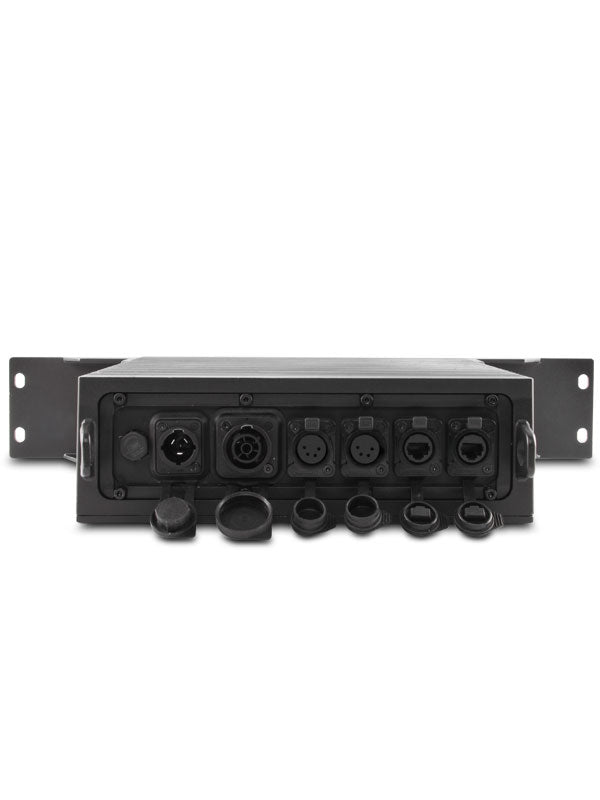

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Device Outputs (4-pin XLR): 2
Physical Linking (port A): 10 inline ÉPIX Strip IP Tour, 18 inlineÉPIX Strip Touror 6 inlineÉPIX Bar Tour
Physical Linking (port B): 10 inline ÉPIX Strip IP Tour, 18 inlineÉPIX Strip Touror 6 inlineÉPIX Bar Tour
Data Connectors: Seetronic Etherkon IP65
Cable Length (power): 5 ft (1.5 m)
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour or IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour or IP fixtures: 100 ft (30 m)
CONTROL
Control Protocol: Art-Net, Kling-Net, sACN
Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, or 150
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
Output Voltage: 48 VDC
Maximum Load: 10 ÉPIX Strip IP or 18ÉPIX Strip Touror 6ÉPIX Bar Tour(per output)
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E113093-1101
US Safety: UL 8750, UL 1573
Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166
WHAT'S INCLUDED
ÉPIX Drive 2000 IP
Seetronic Powerkon IP65 power cord
REQUIRED ACCESSORIES
Compatible Mounting Options: M12 Clamp
OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
Epix Strip Tour
Epix Strip IP
4PINIPEXT16IN
4PINIPEXT5FT
4PINIPEXT50FT
Seetronic Powerkon IP65 cables
Seetronic Etherkon IP65 cables
Processor/Power Supply for EPIX Tour products Easily control using Art-Net™ , Kling-Net, sACN Convenient and compatible with industry-standard Neutrik® powerCON® in-and-out connectors for power Data Connectors: Seetronic Etherkon IP65 Intended Load:20 x EPIX STRIP IP or 36 x EPIX STRIP TOUR or 12 x EPIX BAR TOUR Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
