CHAUVET PRO COLORSTRIKE-M - versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need.

Roll over image to zoom in Click on image to zoom

CHAUVET PRO COLORSTRIKE-M - versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need.

Name: CHAUVET PRO COLORSTRIKE-M - versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need.
Brand: CHAUVET PRO
SKU: COLORSTRIKE-M
Price: 6867.99 CAD
Availability: InStock

CHAUVET PROSKU: COLORSTRIKE-M

Price:

$6,867.99

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

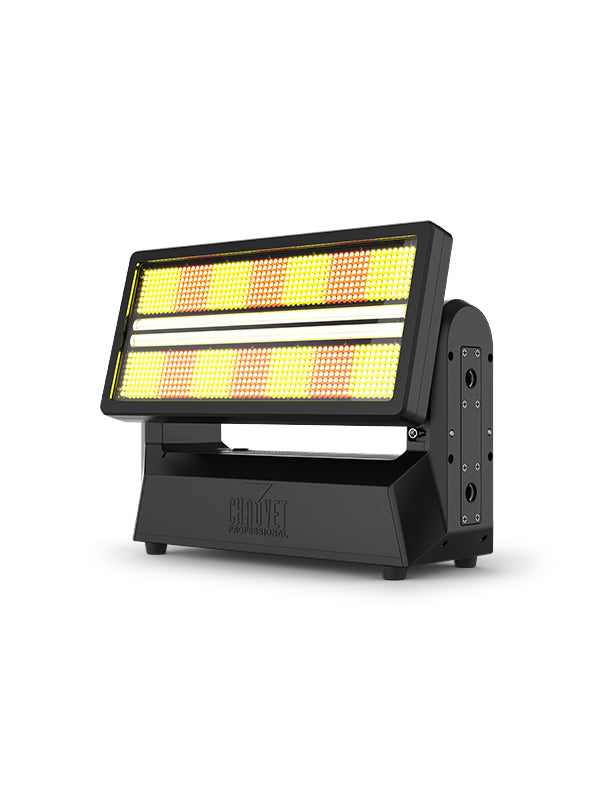

Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.

AT A GLANCE

High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use.
14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs.
Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations
Multitude of built-in effect macros with control parameters
DMX, ArtNet and sACN control capability
16-bit dimming control for smooth, perfect fades
Easy to use OLED display
Rugged design for years of rough use in the most extreme conditions.
Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility
USB port for fixture software updates
Built-in alignment pins to insure perfectly straight linear arrays

OPTICAL

Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
Color Temperature (at full): 7757 K
CRI: 90.3
Beam Angle (Combine): 98° x 57°
Beam Angle (Plate): 123°
Beam Angle (Beam): 95° x 50°
Field Angle (Combine): 146° x 122°
Field Angle (Plate): 160°
Field Angle (Beam): 138° x 100°
Lumens (Combined): 71,620
Lumens (Plate): 18,600
Lumens (Beam): 54,381
Illuminance (Combined): 1591 lux @ 5 m
Illuminance (Plate): 231 lux @ 5 m
Illuminance (Beam): 1432 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

Tilt: 180°
Tilt Ranges: 0° to 180°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
Weight: 26.6 lb (12.1 kg)
Exterior Color: Black
Housing Material: Magnesium alloy

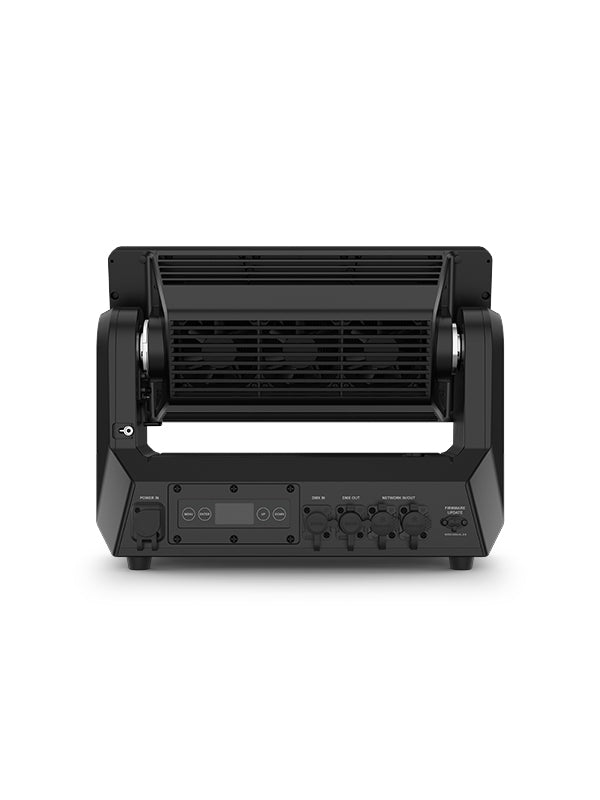

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, DMX, RDM, sACN
DMX Channels: 8, 11, 13, 24, 30, 47, 74 or 97
Art-Net Channels: 8, 11, 13, 24, 30, 47, 74 or 97
Modes/Personalities: 8 personalities (8, 11, 13, 24, 30, 47, 74, 97)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz
Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz
Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz
Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz
Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC,
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED

Color STRIKE M
Seetronic Powerkon IP65 power cord
Omega bracket

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
IP Rated Seetronic® Powerkon Extensions
IP Rated DMX cables
IP Rated EtherCon Cables
UPLOAD 03 software uploader

IP rated hybrid strobe / RGB wash Light Source: 896 LEDs (tri-color) Light Source: 432 LEDs, (CW) Color Temperature (at full): 7757 K Lumens (Combined): 86,690 Illuminance (Combined): 1077 lux @ 5 m Illuminance (Plate): 152 lux @ 5 m Illuminance (Beam): 1231 lux @ 5 m Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz Dim Modes: 4 Built-in Automated Programs: Yes Tilt: 180° Dimmer/ Shutter/Strobe: Electronic Control Protocol: Art-Net, DMX, RDM, sACN DMX Channels: 8, 11, 13, 22, 74 or 89 Art-Net Channels: 8, 11, 13, 22, 74 or 89 Modes/Personalities: 6 personalities (8, 11, 13, 22, 74, 89)
