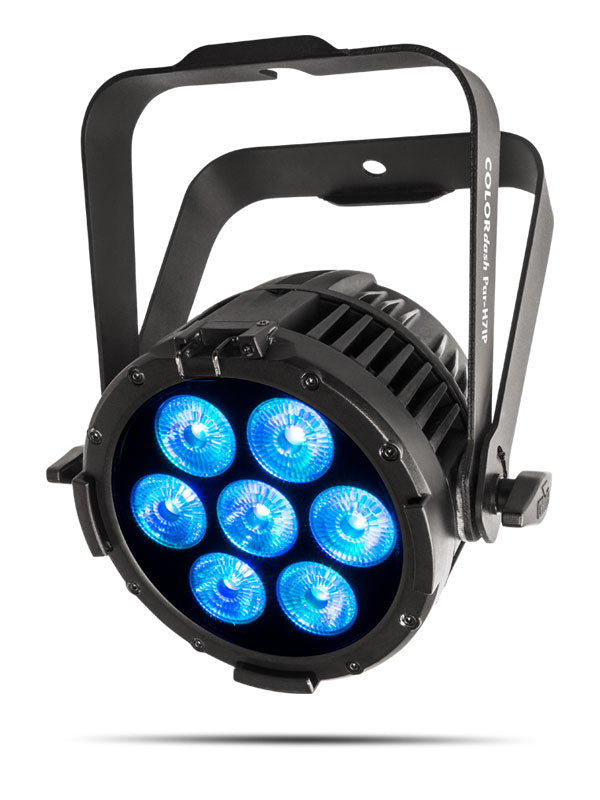

CHAUVET PRO COLORDASH-PAR-H7IP - Chauvet Professional COLORDASHPARH7XIP Color Dash Par H7 XOP IP Rated LED Hex Colour Wash

COLORdash Par H7IP is an ultra compact, all-weather RGBWAUV LED wash at home in any environment. It delivers a beautifully mixed, soft field of deeply saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed

• At home in any weather conditions with IP rated power and DMX connections

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• RDM (Remote Device Management) for added flexibility

• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

• Easy to read OLED display with password protection and touchscreen interface

• Advanced optics provide exceptional color mixing and high efficiency

• Double-bracketed yoke doubles as floor stand

• OPTICAL

  • Light Source: 7 LEDs (hex-color RGBAW+UV) 10 W, (500 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10,000 K
  • Beam Angle: 21°
  • Field Angle: 47°
  • Illuminance (total): 674 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz


  DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes


  CONSTRUCTION / PHYSICAL

  • Dimensions: 11.02 x 9.44 x 6.06 in (280 x 240 x 154 mm)
  • Weight: 7.8 lb (3.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

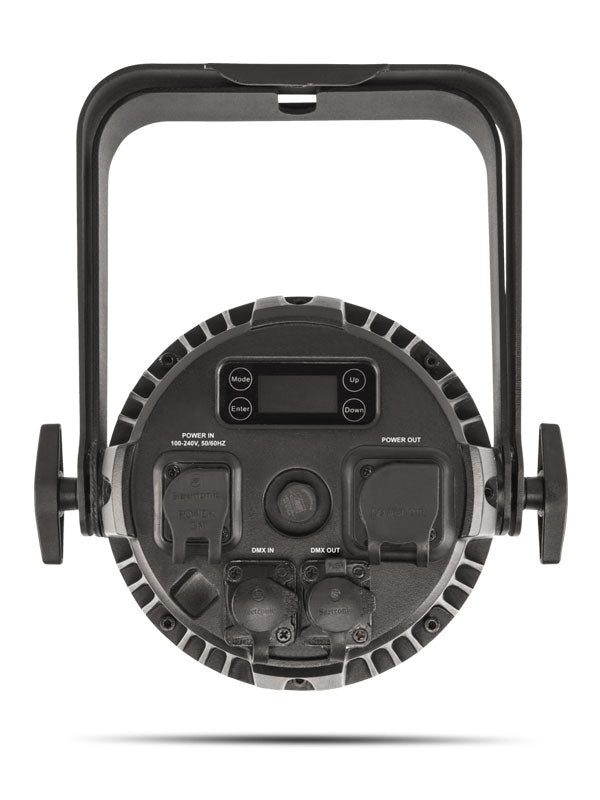

  CONNECTIONS

  • Power Connection: Edison(Local plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)


  CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 6, 8 or 13
  • Modes/Personalities: 3 personalities (6, 8, 13)


  ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 23 units @ 120 V; 39 units @ 208 V; 42 units @ 230 V
  • Power and Current: 68 W, 0.569 A @ 120 V, 60 Hz
  • Power and Current: 72 W, 0.347 A @ 208 V, 60 Hz
  • Power and Current: 74 W, 0.318 A @ 230 V, 50 Hz


  CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


  WHAT'S INCLUDED

  • Seetronic Powerkon IP 65 Power Cord
  • Gel frame


  OPTIONAL ACCESSORIES

  • Professional Clamps:
