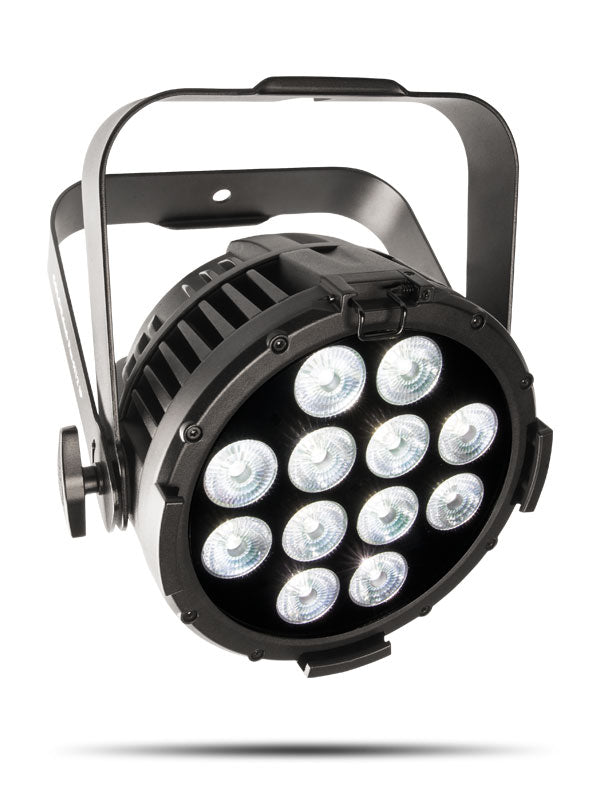

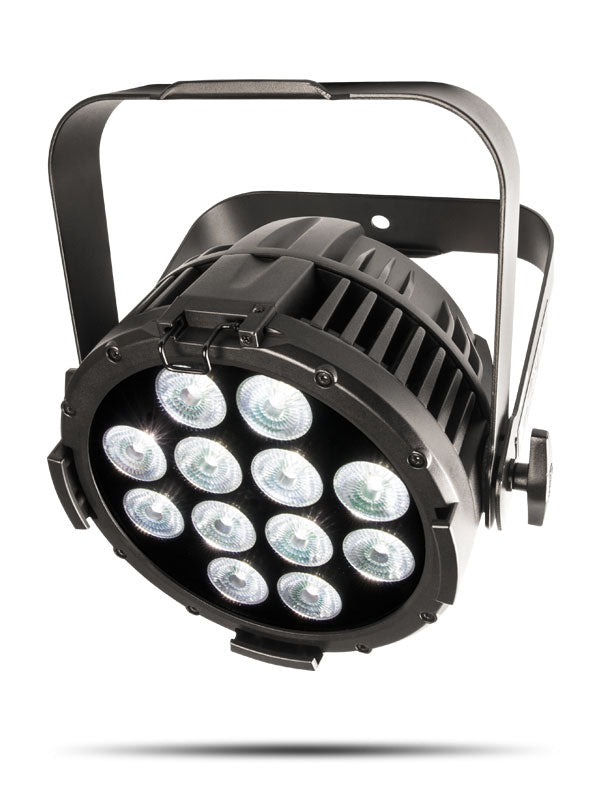

CHAUVET PRO COLORDASH-PAR-H12IP - LED wash delivering a beautifully mixed, soft field of richly saturated colors - COLORdash Par H12IP

COLORdash Par H12IP is a compact, yet powerful IP-rated RGBWAUV LED wash delivering a beautifully mixed, soft field of richly saturated colors. It features a user-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed

• At home in any weather conditions with IP rated power and DMX connections

• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

• RDM (Remote Device Management) for added flexibility

• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

• Easy to read OLED display with password protection and touchscreen interface

• Advanced optics provide exceptional color mixing and high efficiency

• Double-bracketed yoke doubles as floor stand

• OPTICAL

  • Light Source: 12 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Installed Optics: 15°
  • Beam Angle: 22°
  • Field Angle: 34°
  • Illuminance (total): 1180 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz


  DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes


  CONSTRUCTION / PHYSICAL

  • Dimensions: 12.3 x 11.9 x 6.9 in (322 x 305 x 177 mm)
  • Weight: 13.4 lb (6.1 kg)
  • Exterior Color: BLACK
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame size: 8.5 in ( 216 mm)

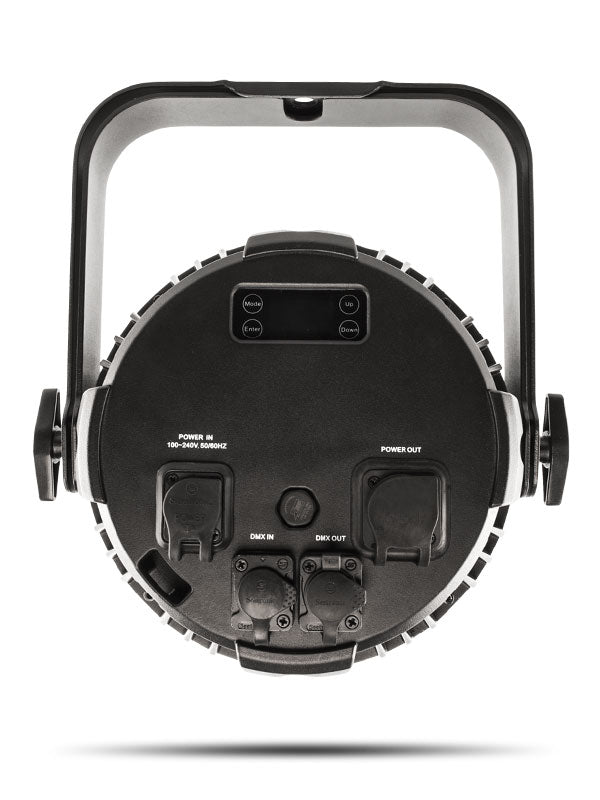

  CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)


  CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 6, 8 or 13
  • Modes/Personalities: 3 personalities (6, 8, 13)


  ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 14 units @ 120 V; 23 units @ 208 V; 25 units @ 230 V
  • Power and Current: 115 W, 0.963 A @ 120 V, 60 Hz
  • Power and Current: 119 W, 0.575 A @ 208 V, 60 Hz
  • Power and Current: 120 W, 0.529 A @ 230 V, 50 Hz


  CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve


  WHAT'S INCLUDED

  • Seetronic Powerkon IP65 power cord
  • Gel frame


  OPTIONAL ACCESSORIES

  • Professional Clamps:
