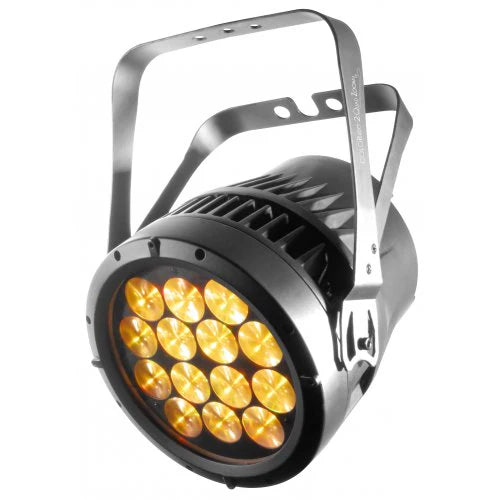

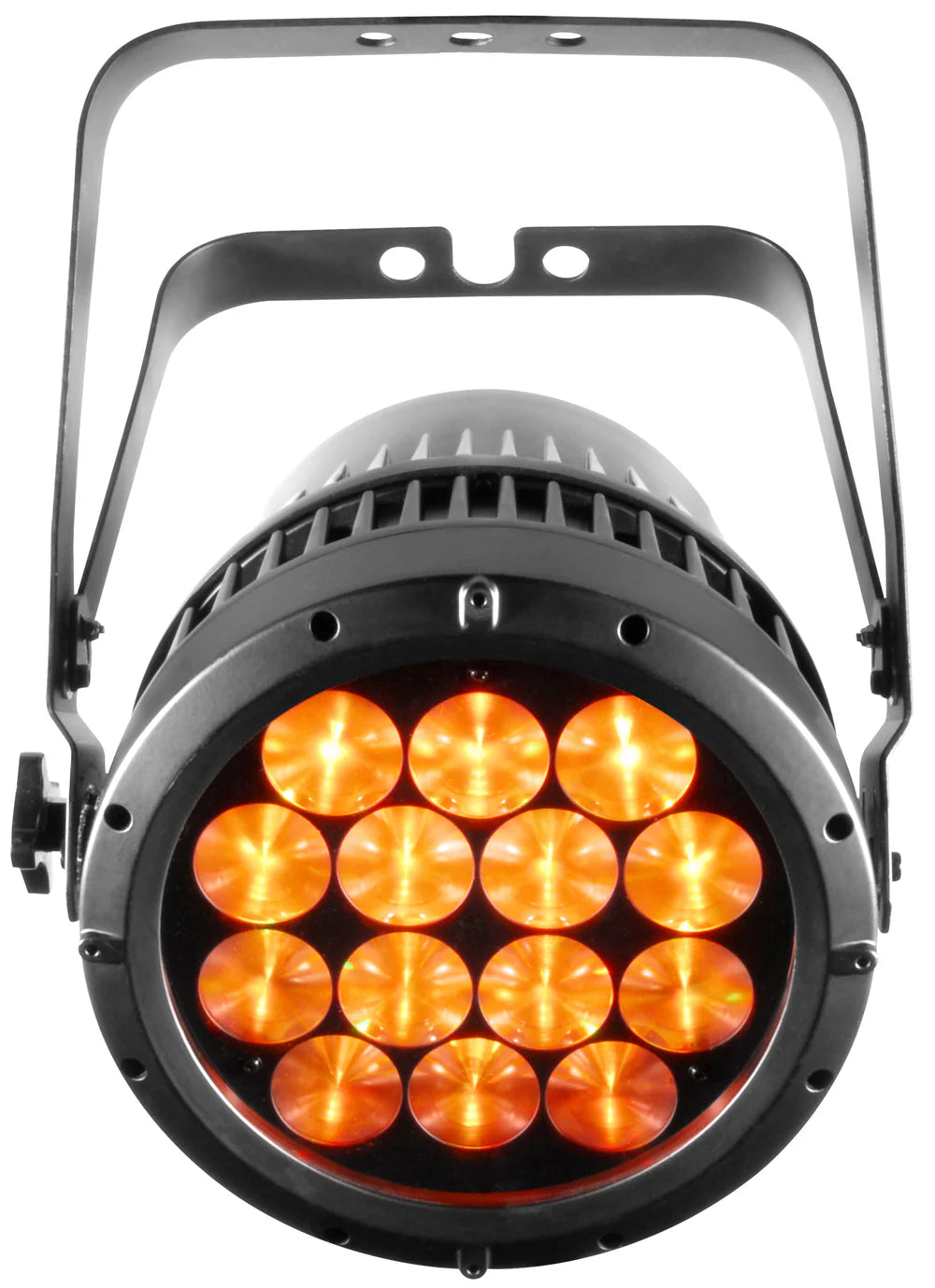

CHAUVET PRO COLORADO2-QDZM(NEWIP) - Chauvet Professional COLORADO2-QDZM(NEWIP) Quad Zoom IP LED Wash Light

Roll over image to zoom in Click on image to zoom

CHAUVET PRO COLORADO2-QDZM(NEWIP) - Chauvet Professional COLORADO2-QDZM(NEWIP) Quad Zoom IP LED Wash Light

Name: CHAUVET PRO COLORADO2-QDZM(NEWIP) - Chauvet Professional COLORADO2-QDZM(NEWIP) Quad Zoom IP LED Wash Light
Brand: CHAUVET PRO
SKU: COLORADO2-QDZM(NEWIP)
Price: 2087.99 CAD
Availability: InStock

CHAUVET PROSKU: COLORADO2-QDZM(NEWIP)

Price:

$2,087.99

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

COLORado 2-Quad Zoom is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 7° to 45° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allow for easy connections without the need for proprietary cabling.

AT A GLANCE

RGBW color mixing via DMX or manually
Zoom control via DMX or manually
Color temperature presets 3,200 to 10,000 K
Built-in auto and custom programs recalled via DMX and Master/Slave
16-bit dimming of individual colors as well as master dimmer
Selectable, smooth dimming curves for programming versatility
Color macros with included speed adjustment
Double-bracketed yoke doubles as a floor stand
All environment operation with IP rated power and DMX connections
3- and 5-pin DMX input/output connections
LED display with password protection

OPTICAL

Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 7° to 29°
Field Angle: 14° to 44°
Zoom Range: 7° to 45°
Illuminance (14°): 8,780 lux @ 5 m
Illuminance (44°): 921 lux @ 5 m
PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

Color Macros: 20 macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 12.9 x 11.1 x 9.2 in (330 x 284 x 236 mm)
Weight: 18.8 lb (8.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 9 in (229 mm)

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM
DMX Channels: 3, 4, 5, 6, 7, 12 or 17
Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power and Current: 201 W, 1.668 A @ 120 V, 60 Hz
Power and Current: 208 W, 1.02 A @ 208 V, 60 Hz
Power and Current: 208 W, 0.932 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET
IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED

COLORado 2-Quad Zoom
Seetronic Powerkon IP65 power cord
Gel frame holder (9 in/229 mm accessories)
Gel frame

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
3- or 5-pin DMX Cables

IP Rated LED Wash LED Source: 14 x 15W RGBW Quad Colour Zoom Angle: 14° to 44° (motorized) Accessory Holder/Gel Frame Size: 9 in (229 mm) Illuminance (14°): 7,180 lux @ 5 m Illuminance (45°): 737 lux @ 5 m 16 bit dimming of individual colours as well as master dimmer Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) DMX Channels: 3, 4, 5, 6, 7, 12 or 17 Data Connections: 3-5-pin XLR
