CHAUVET PRO COLORADO-SOLO-BATTEN4 - RGBAW 4-cell LED batten with seamless end-to-end color mixing - Chauvet Professional COLORADO-SOLO-BATTEN4 IP65 Wash With Pixel Mapping

Roll over image to zoom in Click on image to zoom

CHAUVET PRO COLORADO-SOLO-BATTEN4 - RGBAW 4-cell LED batten with seamless end-to-end color mixing - Chauvet Professional COLORADO-SOLO-BATTEN4 IP65 Wash With Pixel Mapping

Name: CHAUVET PRO COLORADO-SOLO-BATTEN4 - RGBAW 4-cell LED batten with seamless end-to-end color mixing - Chauvet Professional COLORADO-SOLO-BATTEN4 IP65 Wash With Pixel Mapping
Brand: CHAUVET PRO
SKU: COLORADO-SOLO-BATTEN4
Price: 2414.99 CAD
Availability: InStock

CHAUVET PROSKU: COLORADO-SOLO-BATTEN4

Price:

$2,414.99

Shipping calculated at checkout

Stock:

Available to order from our supplier!

Quantity:

Pay with Interac e-Transfer® at checkout

Share this product

IP Rated LED Batten with Pixel Mapping LED Source: 48 (8 red, 8 green, 8 blue, 8 amber, 16 white) x 3 W LEDs Installed Optics: 18° Color Temperature (range): 1800 to 8000 K CRI (3200K): 77.2 Illuminance (total): 1,270 lux @ 5 m Illuminance w/ Filter (total): 432 lux @ 5 m Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM Dimming Modes: 5 Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Data Connections: 5-pin XLR Glare Shield & Wall Wash Filter Included.

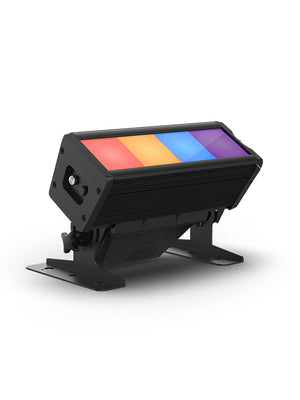

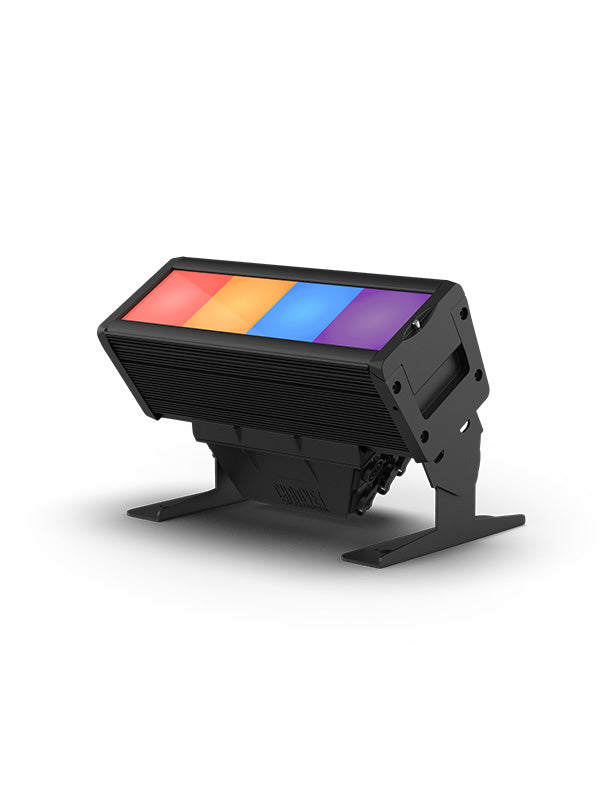

COLORado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments our COLORado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.

AT A GLANCE

RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping
Completely homogenized color with no separation or dimmed lens corners
All-environment operation with IP rated power, DMX, and Ethernet connections
Color temperature presets, from 1800K to 8000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy-to-navigate display with password protection

OPTICAL

Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy
Color Temperature (range): 1800 to 8000 K
CRI (3200 K): 77.2
Installed Optics: 18°
Beam Angle (Horizontal): 18°
Beam Angle (Horizontal w/ Filter): 35°
Beam Angle (Vertical): 17°
Beam Angle (Vertical w/ Filter): 16°
Field Angle (Horizontal): 34°
Field Angle (Horizontal w / Filter): 66°
Field Angle (Vertical): 30°
Field Angle (Vertical w / Filter): 32°
Lumens: 3,730
Illuminance (total): 1,270 lux @ 5 m
Illuminance w/ Filter (total): 432 lux @ 5 m
Selectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000

DYNAMIC EFFECTS

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)
Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)
Weight:17.2 lb (7.8 kg)
Weight (shipping weight): 20.50 lb (9.3 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
Modes/Personalities: 19 personalities

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 13 units @ 120 V; 24 units @ 208 V; 25 units @ 230 V
Power and Current: 114 W, 0.990 A @ 120 V, 60 Hz [4.2 A inrush]
Power and Current: 116 W, 0.558 A @ 208 V, 60 Hz [3.60 A inrush]
Power and Current: 116 W, 0.538 A @ 230 V, 50 Hz [2.6 A inrush]
Power and Current (resting): 10 W, 0.09 A @ 120 V, 60 Hz
Power and Current (resting): 23 W, 0.11 A @ 208 V, 60 Hz
Power and Current (resting): 26 W, 0.11 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

COLORADO SOLO BATTEN 4, with glare shield
Seetronic Powerkon IP65 power cord
Wall Wash Filter
Omega Brackets
Quick Reference Guide

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin DMX Cables
Ethercon Cables
Colorado Solo Batten 4 Barndoor
