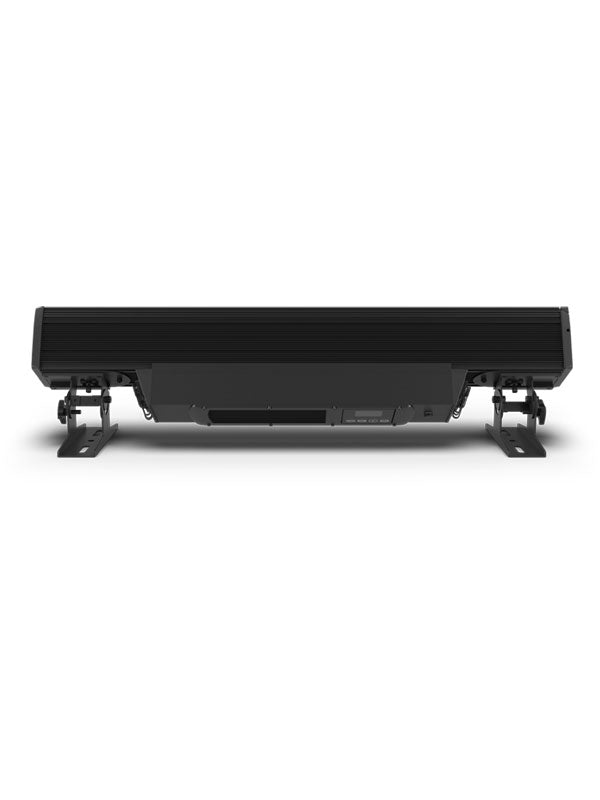

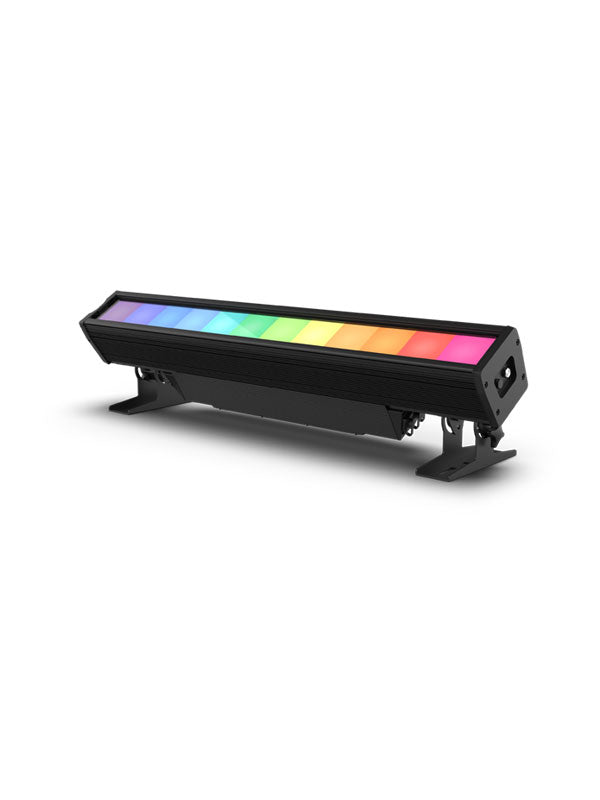

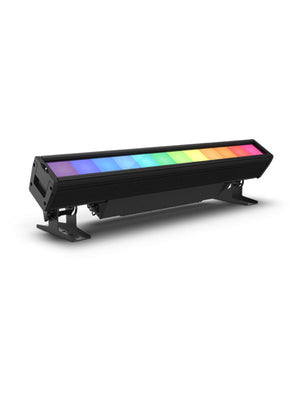

CHAUVET PRO COLORADO-SOLO-BATTEN - batten that projects a single homogenized wash with smooth color-mixing - Chauvet Professional COLORADO-SOLO-BATTEN IP Rated LED Batten with Pixel Mapping

OPTICAL

• Light Source: 144 LEDs (24 red, 24 green, 24 blue, 24 amber, 48 white) 3 W, (612 mA) 50,000 hours life expectancy
• Color Temperature (range): 1800 to 8000 K
• Installed Optics: 18°
• Beam Angle (Horizontal): 20°
• Beam Angle (Vertical): 16°
• Beam Angle (Horizontal w/filter): 37°
• Beam Angle (Vertical w/filter): 15°
• Field Angle (Horizontal): 34°
• Field Angle (Vertical): 29°
• Field Angle (Horizontal w/filter): 63°
• Field Angle (Vertical w/filter): 30°
• Lumens: 6,968
• Illuminance (total): 3,870 lux @ 5 m
• Illuminance (w/filter): 1,230 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 39.86 x 9.06 x 9.84 in (1012.5 x 230 x 249.8 mm)
• Weight: 41.9 lb (19 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 38.75 x 3.81 in (984.25 x 97 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, DMX, RDM, sACN
• DMX Channels:
  1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
  2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
  3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
  12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
• Art-Net™ Channels:
  1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
  2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
  3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
  12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
• Modes/Personalities: 37 personalities

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
• Power and Current: 336 W, 3.046 A @ 120 V, 60 Hz
• Power and Current: 336 W, 1.610 A @ 208 V, 60 Hz
• Power and Current: 339 W, 1.602 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• COLORado Solo Batten, with glare shield
• Seetronic Powerkon IP65 power cord
• Wall Washing filter

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
