IP Rated Quad-Color RGBW LED BattenLight Source: 15LEDs (quad-color RGBW) 20 W, (800 mA), 50,000 hours life expectancy. Color Temperature (range): 3200 to 10,000 K Installed Optics: 16° Dimmer: Electronic, 5 modes Shutter/Strobe: Electronic, Strobe Rate: 0 to 25 Hz Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm) Weight: 28.8 lb (13 kg) Data Connectors: 5-pin IP65 XLR Control Protocol: DMX, RDM Modes/Personalities: 9 personalities

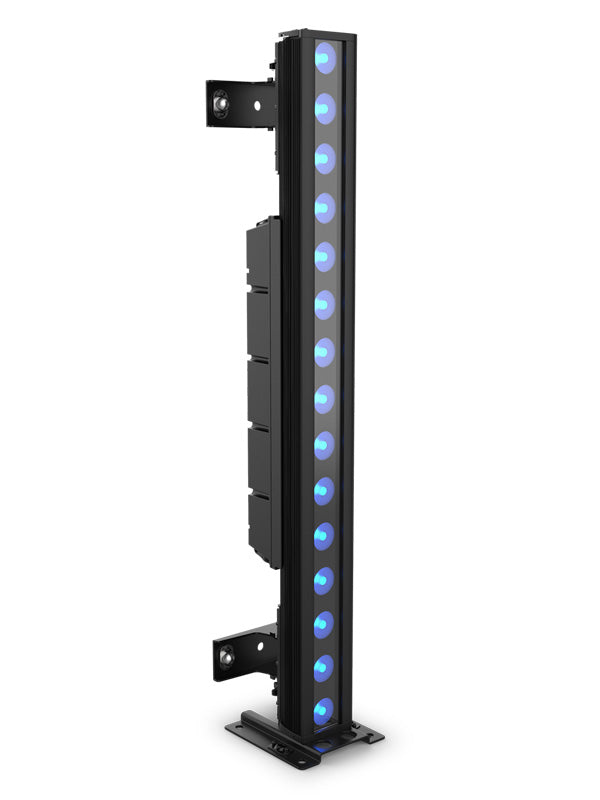

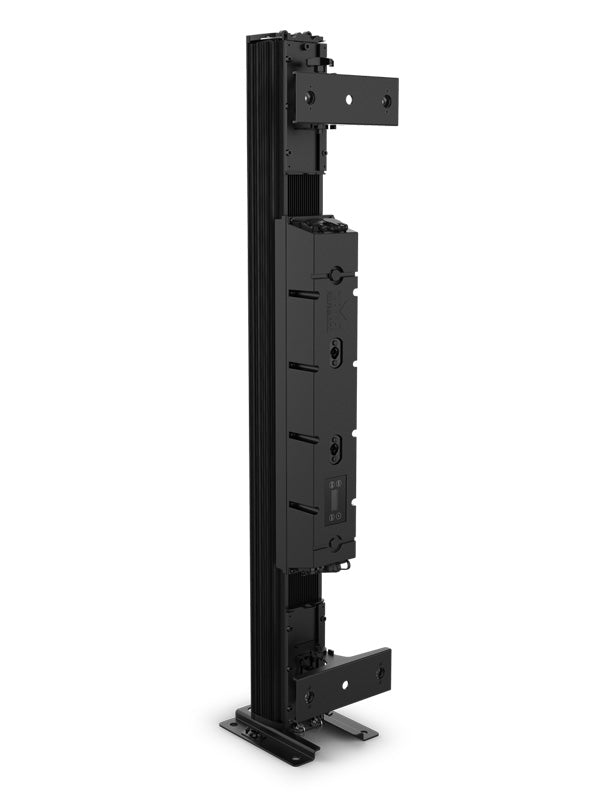

COLORado Batten Q15 is a rugged, tour-ready, quad-color RGBW LED batten with 15 individually controllable LEDs that eliminate the appearance of “skittles” and allow for awesome pixel-mappable looks. The IP65-rated unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16° by 43° beam spread for guaranteed smoothness. Mount it your way by adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The unit also includes a stowable glare shield.
AT A GLANCE
Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
All environment operation with IP rated power and DMX connections
Unique end-cap and back plate mounting options
Color temperature presets, from 1800 K to 8000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy to navigate display with password protection
