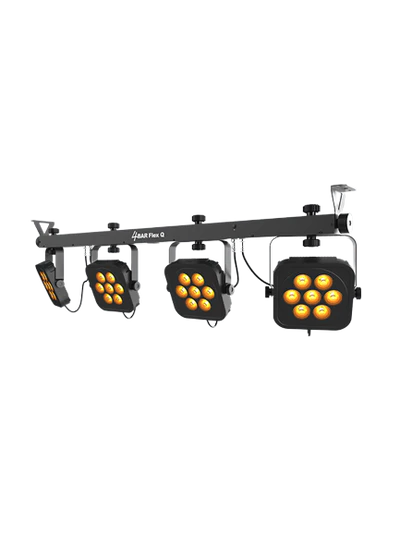

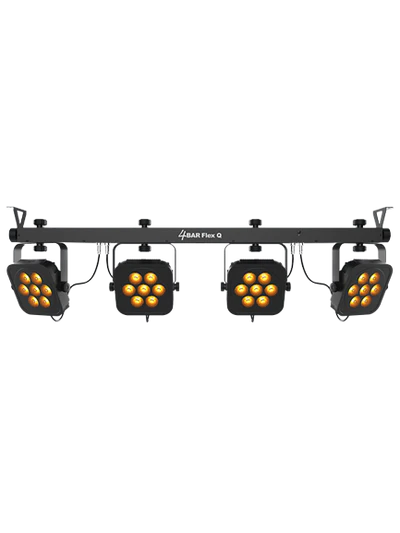

Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
-
ILS compatibility for use in the ILS ecosystem
-
Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
-
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
-
D-Fi™ USB compatibility for wireless master/slave or DMX control
-
Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
-
Provide electricity to the additional lights by using the built-in Edison plugs
-
Maximize setup possibilities and configurations with 2 included L-brackets
-

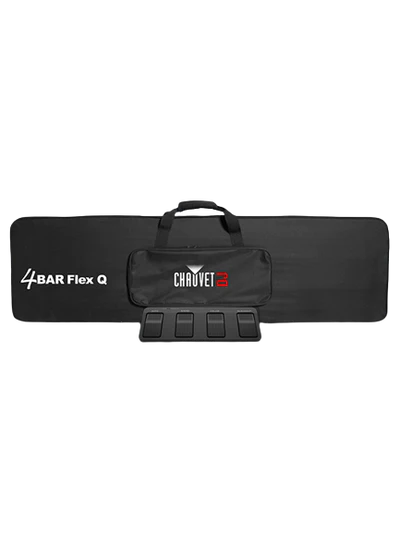

Easily set up and tear down in minutes with the included carrying bag
-
Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
-
Safely mounts to truss using built-in bolts
Description
Complete wash lighting convenience reaches new heights with 4BAR Flex Q ILS. This all-in-one system is fitted with four par fixtures on one bar. Because 4BAR Flex Q ILS is compatbile with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. No DMX required. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q ILS easily sets up and tears down in minutes and includes a handy carry bag. Adding to the unit’s versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4BAR Flex Q ILS and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi™ USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.
HighlightS
Specifications
- DMX Channels:4, 6 or 19
- DMX Connectors:3-pin XLR
- Max Unobstructed Distance:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:14°
- Field Angle:23°
- Illuminance:2,353 lux @ 2 m (per pod)
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current:
80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz - Approvals:CE, RoHS, UKCA
- Operating Frequency (D-Fi): 2.412 to 2.484 GHz
- Operating Frequency (foot switch): 433 MHz
- Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
- Footswitch battery: 9 V
- Fits Tripod Sizes: 1.5 in (36.80 mm)
- Bracket Mounting Hole: M10 (1.5 mm pitch)
- Weight: 12.2 lb (5.5 kg)
- Weight (Controller): 1.2 lb (0.6 kg)
- Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Included controller: IRC-6
- Optional controller: D-Fi USB
