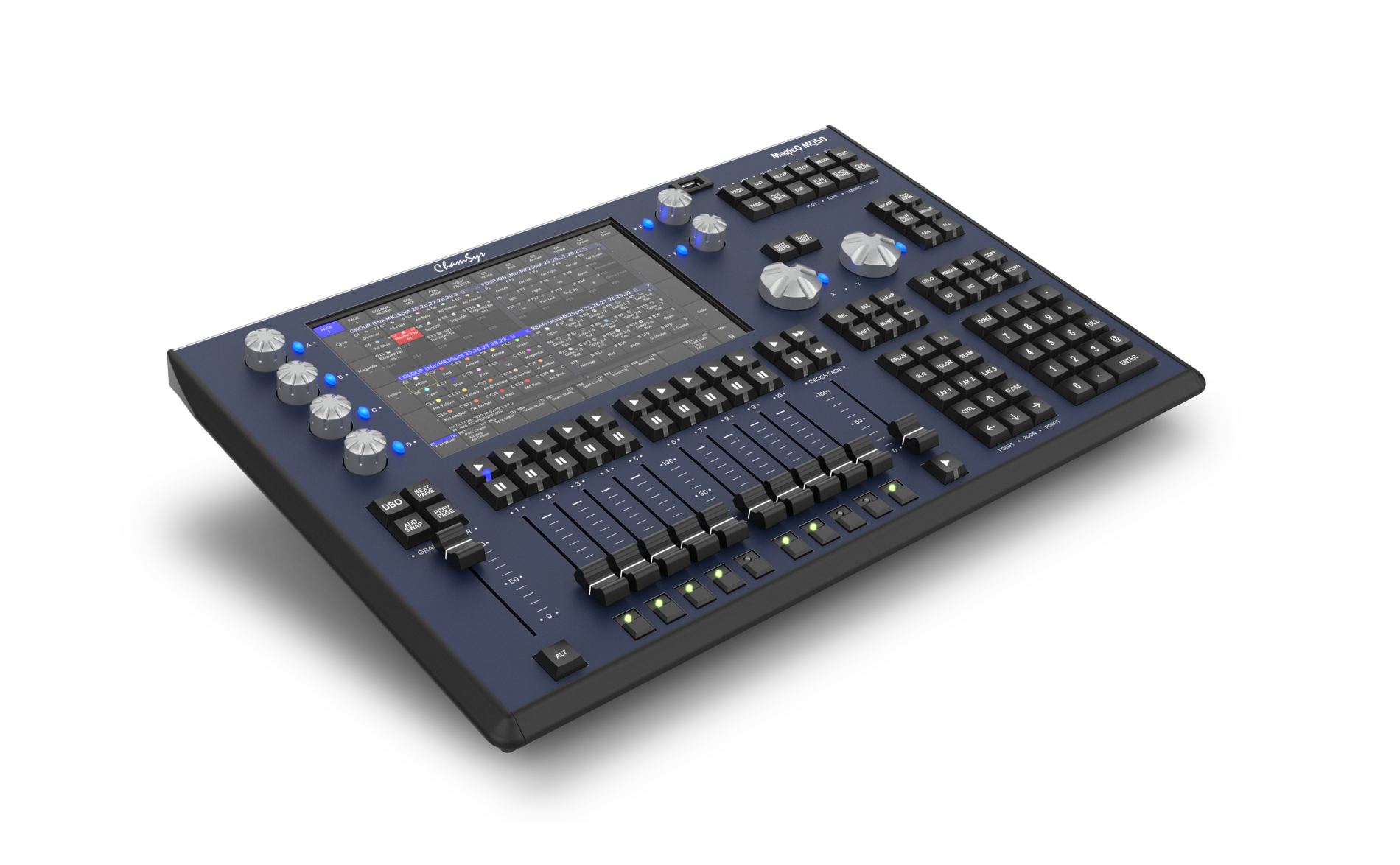

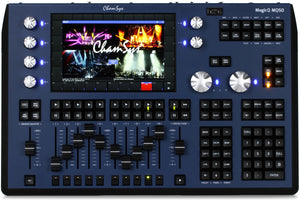

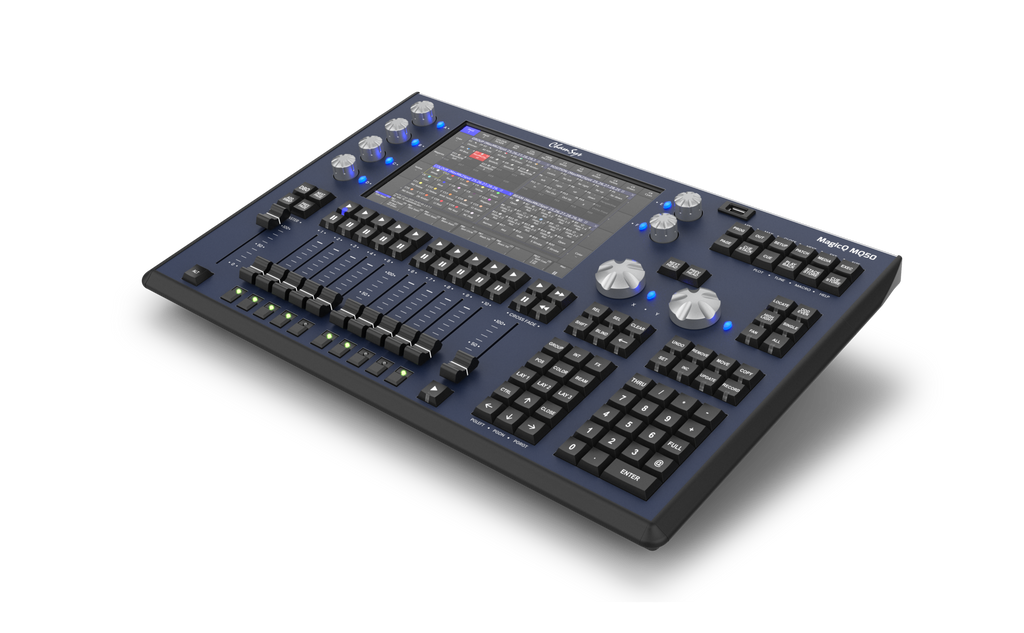

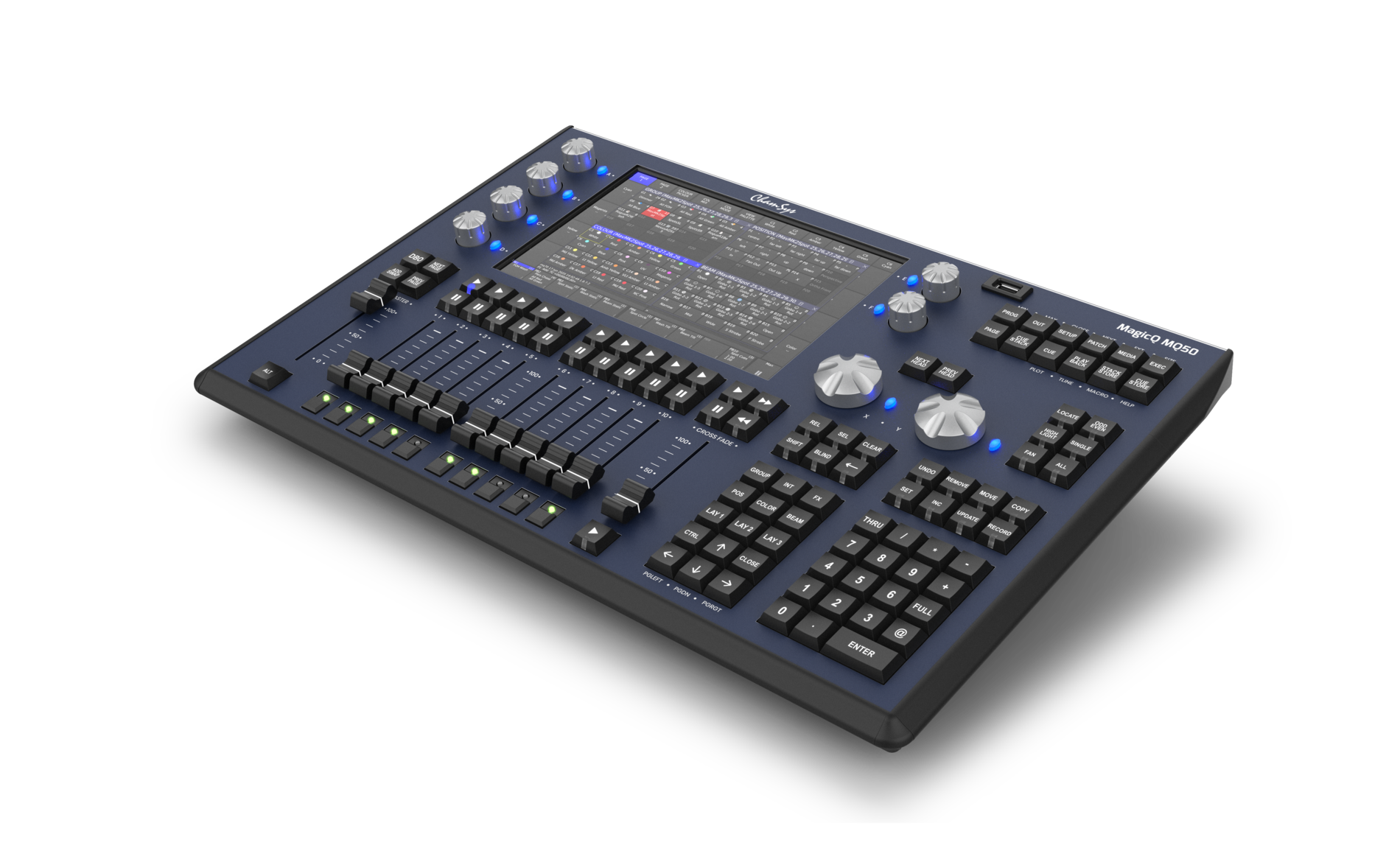

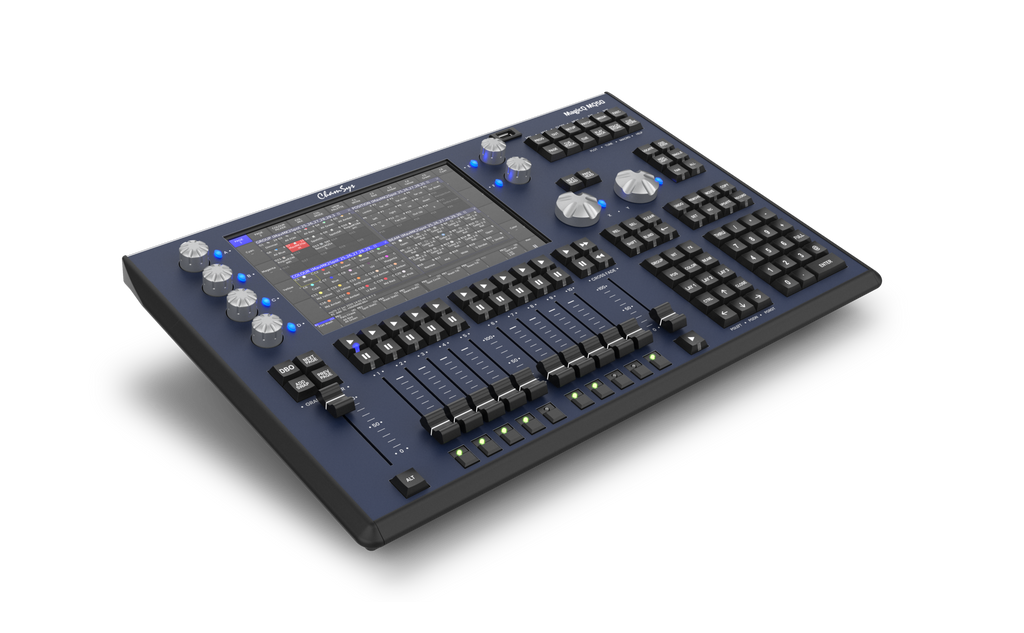

MagicQ MQ50 is part of the new generation of compact consoles, ideal for small to medium sized venues. The MQ50 features a 10.1” Multi touch display and ten full Cue Stack playbacks in a compact format.
The console supports 8 universes, with 4 assignable physical DMX outputs supporting RDM and a network port for ArtNet and sACN output. This feature packed console also includes WIFI inbuilt to the console for quick and easy connection to ChamSys MagicQ Remote focus application without the need for external networking hardware or any networking knowledge.
MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.
8 universes direct from the console
High resolution 10.1″ multi touch display
In built WiFi for quick connection to MagicQ Remote App
RDM support via direct DMX Ports and Network
Silent operation, ideal for theatres
MagicQ Stadium Software
In addition to its rich feature set of core lighting control, MagicQ MQ500M Software has inbuilt plot and visualisation, audio timeline editor, and a multi emitter colour picker.
Specifications
Hardware Specifications:
Universes direct from the console (via Artnet/sACN/Pathport): 8
Direct DMX Outputs: 4
RDM Support: Yes
In-built WiFi: Yes
Playbacks: 10
Grand Master Fader: 1
Crossfade Master Fader: 1
Attribute Encoders: 8
Network Ports: 1
Inbuilt 10.1″ HD Multi-Touch Display: 1
External Monitor up to 1920×1200 Resolution – HDMI: 1
USB Ports: 5
Audio Input (1 channel, 7 band): Yes
Audio Output: Yes
MIDI Ports: 1 in, 1 out (Notes Only)
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Max Power Consumption (mains): 35w
Software Specifications:
Max Number of DMX Channels: 4096
Max Number of Fixtures Supported: 4096
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Numbers of Shows: Virtually unlimited
Timecode Support (Midi, LTC, Virtual, USB): No
Included Accessories:
Dual Colour Desk light: 1
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
Boxed Weights and Dimensions:
Width: 680mm (26.7 inches)
Depth: 290mm (11.4 inches)
Height: 500mm (19.6 inches)
Weight: 10kg (22 lb)
Console Weights and Dimensions:
Width: 525mm (20.6 inches)
Depth: 350mm (13.7 inches)
Height: 60mm (2.3 inches)
Weight: 7kg (15.4lb)
Flight Cased Weights and Dimensions:
Width: 600mm (23.6 inches)
Depth: 202mm (7.95 inches)
Height: 421mm (16.5 inches)
Weight (console in flightcase): 17kg (37.4 lb)
