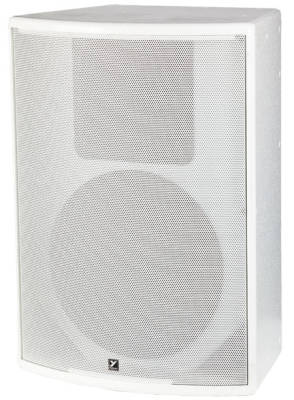

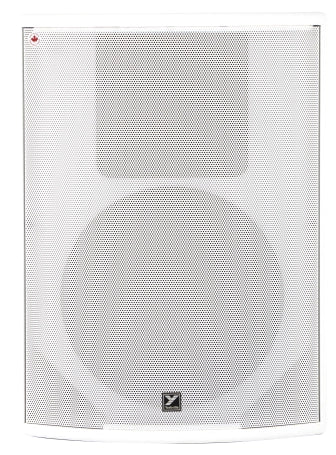

COLISEUM 15"+1" 80X50 HORN 500W. The new Canadian made Coliseum C15W installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80 x 50 horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.
Additional Omnimount compatible rigging points make the 500 watt C15 an ideal solution for larger commercial installation or House of Worship PA applications.
Optional FH2W - C12W / C15W Flying Hardware
The FH2W hardware kit has been specifically designed to expand the C12W and C15W's already advanced mounting capabilities. A single FH2W installation kit is the ideal rigging solution for installing either Yorkville Coliseum Series C12W or C15W speakers in single point hangs for solo cabinets or two-box arrays.
The staggered hole pattern in the FH2W allows for a multitude of tilt angles simply by moving the shackle towards front or the rear of the bracket. If further down-tilt is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When using C12W or C15W cabinets in two cabinet arrays, the FH2W splays the loudspeakers at the ideal angles to minimize interference and lobing.
Features:
• 500 Watts / 8 ohms
• 15-inch Woofer
• 1.75-inch Horn Driver with 3-inch Voicecoil
• 80 x 50 Rotatable Horn
• Nine Integrated 1/4-20 flypoints
• Optional Versatile FH2W Flying Hardware Available
• Also Compatible with 120.0WA Omnimount Bracket
• Solid Birch Cabinet Construction
• Extensive Internal Metal Bracing for Added Security and Long Term Reliability
• All Metal Grille
• Speakon & Terminal Strip Input
Specifications:
• System Type: Two Way
• Active or Passive: Passive
• Program Power (Watts): 500
• Biampable: No
• Nominal Impedance (Ohms): 8
• Sensitivity (dB @1Watt/1m): 99
• Max SPL (dB): 126
• Frequency Response (Hz +/- 3dB): 50 - 20k
• Crossover Frequency (Hz): 1100
• Driver Configuration: 15 inch / 1.75 inch
• HF Driver(s): 1.75 inch Mylar
• HF Horn: Rotatable ABS Waveguide
• HF Dispersion ( DEG H x DEG V): 80 x 50 Rotatable
• HF Protection: CTL
• Inputs - Speakon 4-pin: 2
• Inputs - Screw Terminal: 1 Pair
• Flying Hardware: 1/4 inch
• Optional Flying Hardware: FW2W Flyware is available
• Enclosure Materials: 15mm (5/8inch) 11-ply Russian birch
• Grille: Perforated Metal
• Covering / Finish: Two Part White Epoxy
• Other Details: Has rear mounted rigging points for Omnimount 120.0WA bracket
• Dimensions (DWH xbackW COM inches): 15.4 x 20.9 x 28.7 x 15.7
• Dimensions (DWH xbackW COM cm): 39.1 x 53.1 x 72.9 x 39.8
• Weight (lbs/kg): 75 / 34.2
