Created for use with intercom systems, the Audio-Technica BPHS1-XF4 is a rugged communications headset that offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom.
The headset's microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.
Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
Closed-back circumaural ear cups help seal out crowd noise and other background distractions
Neodymium magnets in microphone and headphones for high output level and detailed sound reproduction
Rugged design with user-replaceable cable and ear pads
Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
Boom-mounted microphone can be positioned on the left or right side
Adjustable cushioned headband and lightweight design for long-wearing comfort
Detachable cable (BPCB4) terminates in 4-pin XLRF-type connector for use with intercom systems

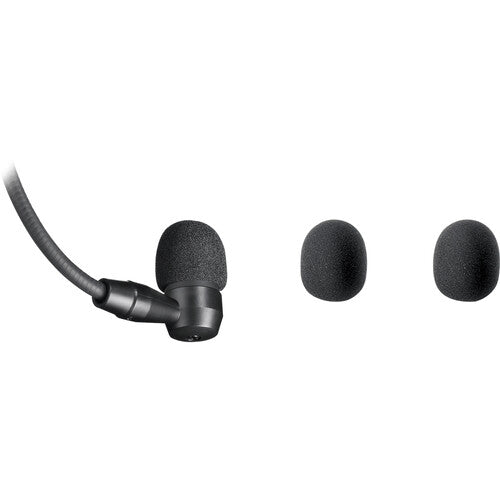

Includes three windscreens
Audio-Technica BPHS1 Specs
Headphone
| Earpiece Design | Over-Ear (Circumaural), Closed-Back |
| Number of Earpieces | Dual Earpiece |
| Earpad Size | 3.2" / 82.0 mm |
| Driver Type | Dynamic |
| Driver Size | 1.6" / 40 mm |
| Voice Coil | Copper-Clad Aluminum Wire |
| Impedance | 65 Ohms |
Performance
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | 100 dB |
| Maximum Power Handling | 1600 mW |
Microphone
| Type | Dynamic |
| Pickup Pattern | Cardioid (Unidirectional) |
| Frequency Response | 40 Hz to 20 kHz |
| Sensitivity | -57 dB1.4 mV |
| Impedance | 560 Ohms |
Wired Connectivity
| Audio Connector to Source | XLR 4-Pin Female |
| Audio Connector to Earpiece | Proprietary |
| Cable Length | 6.6' / 2 m |
Physical
| Dimensions | Headband: 1.81" / 46 mm Boom: 7.09" / 180.1 mm Microphone: 0.94" / 24 mm |
| Weight | 9.3 oz / 264 g |
Packaging Info
| Package Weight | 1.12 lb |
| Box Dimensions (LxWxH) | 10.3 x 7.6 x 3.8" |
