Description
PRODUCT DETAILS
What is the Beta 98AMP/C best suited to?
This premium drum microphone is ideal for use with snares and toms.
What are the characteristics of the Beta 98AMP/C?
The Beta 98AMP/C provides a smooth and natural sound, and features an integrated XLR preamplifier with a flexible gooseneck.
What is the difference between the Beta 98AMP/C and the other versions of the Beta 98?
The Beta 98AMP/C is a cardioid condenser instrument microphone and comes complete with an integrated preamplifier and the A75M universal drum mount. None of the other versions of the Beta 98 contain an integrated preamplifier. The Beta 98AMP/C has a wider dynamic range with a SPL level 7dB higher than Beta 98AD/C and the Beta 98A/C. The Beta 98AD/C is for the same applications and instead contains an A98D drum mount which features a flexible gooseneck. The Beta 98S & Beta 98D/S will continue to be available and have a supercardioid polar pattern.
Please note - any Beta drum microphone featuring the letter 'A' following the model number contains a new capsule and as a result you can expect a more natural high frequency response.
- Uniform cardioid polar pattern provides maximum gain-before-feedback and rejection of off-axis sound for smooth high-end response and control
- Precision-engineered design features integrated preamplifier and XLR connector to maximize setup efficiency while minimizing stage clutter
- Frequency response tailored for drums and percussion applications with a wide dynamic range for use in high SPL environments
- Flexible gooseneck for precise placement and easy adjustment
- Ships with A75M Universal Microphone mount with quick release, for versatile and secure instrument and/or stand mounting
- Furnished with snap-fit windscreen and zipper pouch
General Description

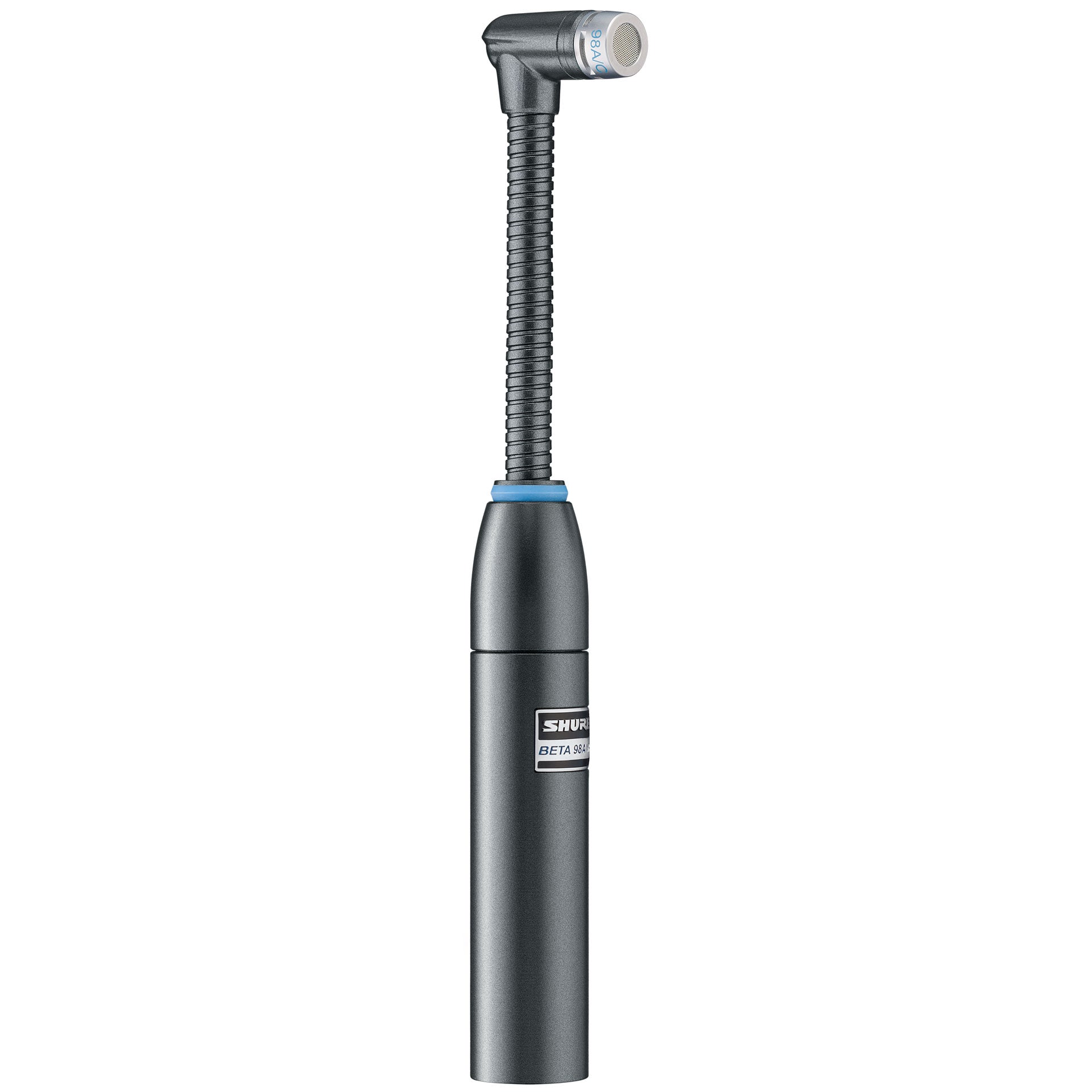

The Shure Beta 98AMP is a compact, high-output, condenser microphone for professional sound reinforcement and studio recording. An extremely uniform cardioid polar pattern provides excellent gain before feedback, off-axis rejection of unwanted noise, and performance in high sound pressure level (SPL) environments.
The Beta 98AMP features an integrated preamplifier with XLR connection, a flexible gooseneck, and is packaged with the A75M Universal Microphone Mount accessory for precision adjustments and minimal stage clutter. For use with drums, percussion, and other fixed-placement applications.
Variations
- Beta 98AMP/C: Beta 98AMP microphone furnished with the A75M Universal Microphone Mount.
- Beta 98AMP/C-3PK: includes three Beta 98AMP microphones and three A75M Universal Microphone Mounts.
Performance Characteristics
- Exceptional low-frequency reproduction
- Extremely high SPL handling
- High output level
- No crossover distortion
Features
- Premier live performance microphone with Shure quality, ruggedness, and reliability
- Uniform cardioid polar pattern for maximum gain before feedback and superior rejection of off-axis sound
- Tailored frequency response shaped for drums and percussion
- Wide dynamic range for use in high SPL environments
- Compact design and integrated preamp reduce stage clutter and ease setup
- Flexible gooseneck for precise placement and easy adjustments
- Enamel coated metal construction and stainless steel inner grille resist wear and abuse
Applications
General Rules for Use
- Do not cover any part of the microphone grille with your hand, as this will adversely affect microphone performance.
- Aim the microphone toward the desired sound source (such as the talker, singer, or instrument) and away from unwanted sources.
- Place the microphone as close as practical to the desired sound source.
- Work close to the microphone for extra bass response.
- Use only one microphone to pick up a single sound source.
- For better gain before feedback, use fewer microphones.
- Keep the distance between microphones at least three times the distance from each microphone to its source (“three to one rule”).
- Place microphones as far as possible from reflective surfaces.
- Add a windscreen when using the microphone outdoors.
- Avoid excessive handling to minimize pickup of mechanical noise and vibration.
Applications and Placement
The following table lists the most common applications and placement techniques. Keep in mind that microphone technique is largely a matter of personal taste; there is no one “correct” microphone position.
Application | Suggested Microphone Placement | Tone Quality |
---|---|---|
Tom-Toms | One mic on each tom or between a pair of toms, 2.5 to 7.5 cm (1 to 3 in.) above drum heads. | Medium attack; full, balanced sound. |
Remove bottom head and place a mic inside pointing up toward top drum head. | Maximum isolation; full, balanced sound. | |
Snare Drum | 2.5 to 7.5 cm (1 to 3 in.) above rim of top head of drum. Aim mic at drum head. | Most "snap" from drumstick. |
Cymbals | Close-mike with A75M mount, avoiding range of cymbal movement. | Maximum isolation; bright, with plenty of attack. |
Before each use, make sure the cartridge is tightly secured on the microphone, as vibration and accidental hits with drumsticks may loosen it, resulting in signal loss.
Positioning the Microphone
The flexible gooseneck allows precise adjustments to the microphone without moving the mount.
Excessive twisting or forcing the gooseneck into extreme positions can permanently damage the microphone.
A75M Universal Microphone Mount
The Shure A75M mounts the Beta 98AMP on a variety of surfaces and instrument hardware. Reference the furnished A75M guide to correctly mount the microphone.
BETA 98AMP MOUNTED WITH A75M
Load Impedance
Maximum SPL capability, output clipping level, and dynamic range vary with the input load impedance of the preamplifier to which the microphone is connected. Shure recommends a minimum input load impedance of 1000 Ohms. Most modern microphone preamplifiers meet this requirement. Higher impedance results in better performance for these specifications.
Power Requirements
This microphone requires phantom power and performs best with a 48 Vdc supply (IEC-61938). However, it will operate with slightly decreased headroom and sensitivity with supplies as low as 11 Vdc.
Most modern mixers provide phantom power. You must use a balanced microphone cable: XLR-to-XLR or XLR-to-TRS.
Specifications
Type
Electret Condenser
Frequency Response
20 to 20,000 Hz
Polar Pattern
Cardioid
Output Impedance
150 Ω
Sensitivity
at 1kHz, open circuit voltage, typical
-50.5 dBV/Pa(2.5 mV)[1]
Maximum SPL
1 kHz at 1% THD[2]
2500 Ω load | 157.5 dB SPL |
1000 Ω load | 153.0 dB SPL |
Signal-To-Noise Ratio[3]
63 dB
Dynamic Range
at 1kHz
2500 Ω load | 126.5 dB |
1000 Ω load | 122.0 dB |
Clipping Level
at 1 kHz,at 1% THD
2500 Ω load | 12.5 dBV |
1000 Ω load | 7.5 dBV |
Self Noise
equivalent SPL,A-weighted,typical
31.0 dB SPL-A
Common Mode Rejection
10 Hz to 100 kHz
≥60 dB
Power Requirements
11–52 V DCphantom power[4], 5.5 mA
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Net Weight
130 g(4.6oz.)
[1] 1 Pa=94 dB SPL
[2] THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL
[3] S/N ratio is the difference between 94 dB SPL and equivalent SPL of self-noise, A-weighted
[4] All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity
Typical Frequency Response
Typical Polar Patterns
Overall Dimensions
