The Zoom B3n lets you create your own original sound, no matter the kind of music you play. This bass pedal has countless amp, cabinet, and stompbox effects that you can use on stage or in the studio. Plus, its editing features are simple enough that you can tweak your sound even when you're on the road.
KEY FEATURES
67 high-quality stompbox DSP effects
5 amp emulators plus 5 cabinet emulators
Free ZOOM Guitar Lab Mac/Windows software allows for downloading of additional effects and patch management
Use up to 7 effects simultaneously, chained together in any order
3 stompbox switches allow effects to instantly be brought in and out
Intuitive user interface with 3 independent editing displays
Onboard chromatic tuner with dedicated footswitch supports all standard bass tunings, including open and drop tunings (tuner range of 435 - 445 Hz)
Stereo/mono looper allows recording of up to 80 seconds of phrase recording
68 built-in rhythm patterns that can be used in conjunction with the looper
Tap Tempo with dedicated footswitch
Auxiliary stereo input jack for connection of smartphones and music players
Dual output jacks for connection to bass amps and mono or stereo PA systems
Dedicated stereo headphone output
Control input for ZOOM FP02M external expression pedal
SPECS
Specs
EFFECT TYPES:
67
NUMBER OF SIMULTANEOUS EFFECTS :
7
NUMBER OF USER BANKS/PATCHES:
150
SAMPLING FREQUENCY:
44.1 kHz
A/D CONVERSION:
24-bit with 128x oversampling
D/A CONVERSION :
24-bit with 128x oversampling
SIGNAL PROCESSING :
32-bit
FREQUENCY CHARACTERISTICS :
20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
DISPLAY:
128 x 32 dot-matrix LCD (x3)

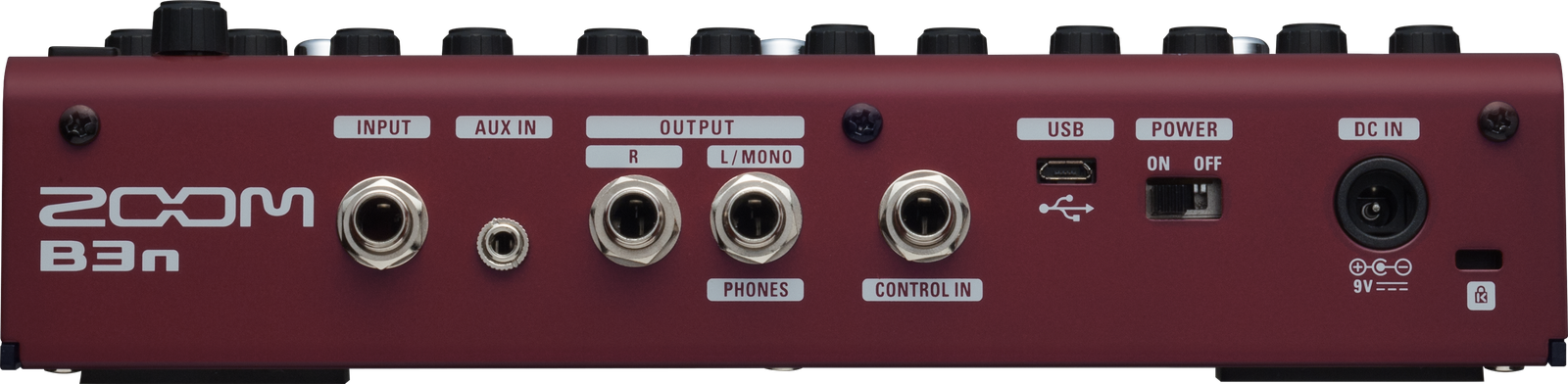

INPUTS
INPUTS:
Standard monaural phone jack Rated input level: -20 dBu* Input impedance (line): 470 kΩ
AUX IN
Stereo mini jack (3.5 mm) Rated input level: -10 dBu* Input impedance (line) : 10 kΩ
OUTPUTS
OUTPUT R
Standard monaural phone jack
MAXIMUM OUTPUT LEVEL
Line +5 dBm* (with output load impedance of 10 kΩ or more)
L/MONO/PHONE
Standard stereo phone jack (combined line/headphone)
MAXIMUM OUTPUT LEVEL
Line +5 dBm (with output load impedance of 10 kΩ or more) Headphones 15 mW + 15 mW (into 32 Ω load)
EQUIVALENT INPUT NOISE
-119 dBu
NOISE FLOOR (RESIDUAL NOISE)
-100 dBu
CONTROL INPUT
Zoom FP02M
POWER
AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
USB
USB MIDI USB Micro-B
DIMENSIONS
181 mm (D) X 234 mm (W) X 58 mm (H) 7.1 in (D) X 9.2 in (W) X 2.2 in (H)
WEIGHT
1.28 kg / 2.8 lbs
OPTIONS
FP02M expression pedal * 0 dBm=0.775 Vrms
