Description

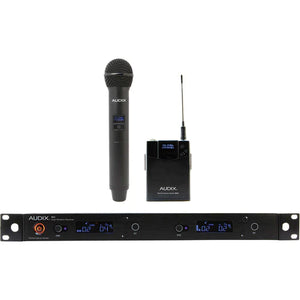

The 522 to 554 MHz Audix R42 Dual-Channel Diversity Receiver with B60 Bodypack Transmitter and H60 OM2 Handheld Transmitter is designed to deliver strong, clear wireless audio for two musicians, presenters, or vocalists in houses of worship, concert venues, and live stage applications. It includes an R42 Kit-A dual-channel UHF diversity receiver, a B60 bodypack transmitter, an H60 OM2 handheld microphone transmitter, BNC and audio cables, AA batteries, a power supply, and a rackmount kit. With adjustable AF gain, selectable RF output power, and one-touch sync and auto scan, the system is versatile and easy to use.
Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver (A: 522 to 554 MHz)
The Audix R42 Kit-A is a Performance Series dual-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use two wireless microphones (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup.
The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R42 Kit-A ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit.
Audix B60 Performance Series Bodypack Transmitter (522 to 586 MHz)
The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.
The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.
Audix H60 OM2 64 MHz Handheld Microphone Transmitter with OM2 Hypercardioid Dynamic Capsule (522 to 586 MHz)
The Audix H60 OM2 is a Performance Series handheld microphone transmitter with an OM2 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 50 Hz to 16 kHz frequency response with a mild bass boost, and a high maximum SPL of approximately 140 dB.
A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM2 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
Audix R42 Kit-A Performance Series Dual-Channel UHF Diversity Receiver (A: 522 To 554 MHz) Specs
| Frequency Band | 522 to 554 MHz |
| Bandwidth | 32 MHz |
| # Of Simultaneous Systems | Up to 8 |
| Switchable Frequencies | 106 pre-coordinated frequencies |
| Wireless Range | Up to 300' / 91 m |
| Antenna Connector | 2 x BNC (8 VDC, 150 mA) |
| Outputs | 2 x XLR 3-pin balanced 2 x 1/4" TS unbalanced |
| Audio Output Level | XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain |
| Audio Level Control | -12 to +9 dB in 3 dB steps |
| Frequency Response | 45 Hz to 18 kHz |
| Compander | 2:1 |
| Pilot Tone | 32 kHz |
| Receiving System | Single tuner, antenna diversity |
| Signal to Noise Ratio | 105 dB at 30 kHz deviation (A-weighted) |
| Total Harmonic Distortion (THD) | ≤0.7% (33 kHz deviation at 1 kHz) |
| Sensitivity | 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted) |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A |
| Dimensions (W x D x H) | 16.0 x 8.2 x 1.7" / 406 x 209 x 44 mm |
| Weight | 4.8 lb / 2.2 kg |
Audix B60 Performance Series Bodypack Transmitter (522 To 586 MHz) Specs
| RF Power Output | 10/30 mW |
| Bandwidth | 64 MHz |
| Gain Adjustment | 0 dB, -6 dB, -12 dB, -24 dB |
| Inputs | 1 x mini-XLR 3-pin |
| Input Impedance | Mic: 10 kOhms Line: 1 MOhm |
| Maximum SPL | Approximately 128 to 140 dB (depending on microphone) |
| Battery Life | Approximately 14 hours |
| Current Consumption | 110 mA typical |
| Power Requirement | 2 x AA 1.5 V batteries |
| Dimensions (W x L x D) | 2.6 x 3.5 x 0.7" / 67 x 90 x 17 mm |
| Weight | 3 oz / 85 g without batteries |
| Package Weight | 0.66 lb |
| Box Dimensions (LxWxH) | 11.45 x 4.75 x 2.8" |
Audix H60 OM2 64 MHz Handheld Microphone Transmitter With OM2 Hypercardioid Dynamic Capsule (522 To 586 MHz) Specs
| Type | Dynamic |
| Polar Pattern | Hypercardioid |
| Capsule | VLM Type B |
| Frequency Response | 50 Hz to 16 kHz |
| Maximum SPL | ≥140 dB |
| Impedance | 290 Ohms |
| Sensitivity | 1.6 mV/Pa at 1 kHz |
| Off-Axis Performance | Rejection >25 dB |
| RF Power Output | 10/30 mW |
| Bandwidth | 64 MHz |
| Gain Adjustment | 0 dB, -6 dB, -12 dB |
| Battery Life | Approximately 14 hours |
| Current Consumption | 110 mA typical |
| Power Requirement | 2 x AA 1.5 V batteries |
| Dimensions (Diam. x L) | 2.1 x 10.4" / 53 x 265 mm |
| Weight | 11 oz / 312 g without batteries |
