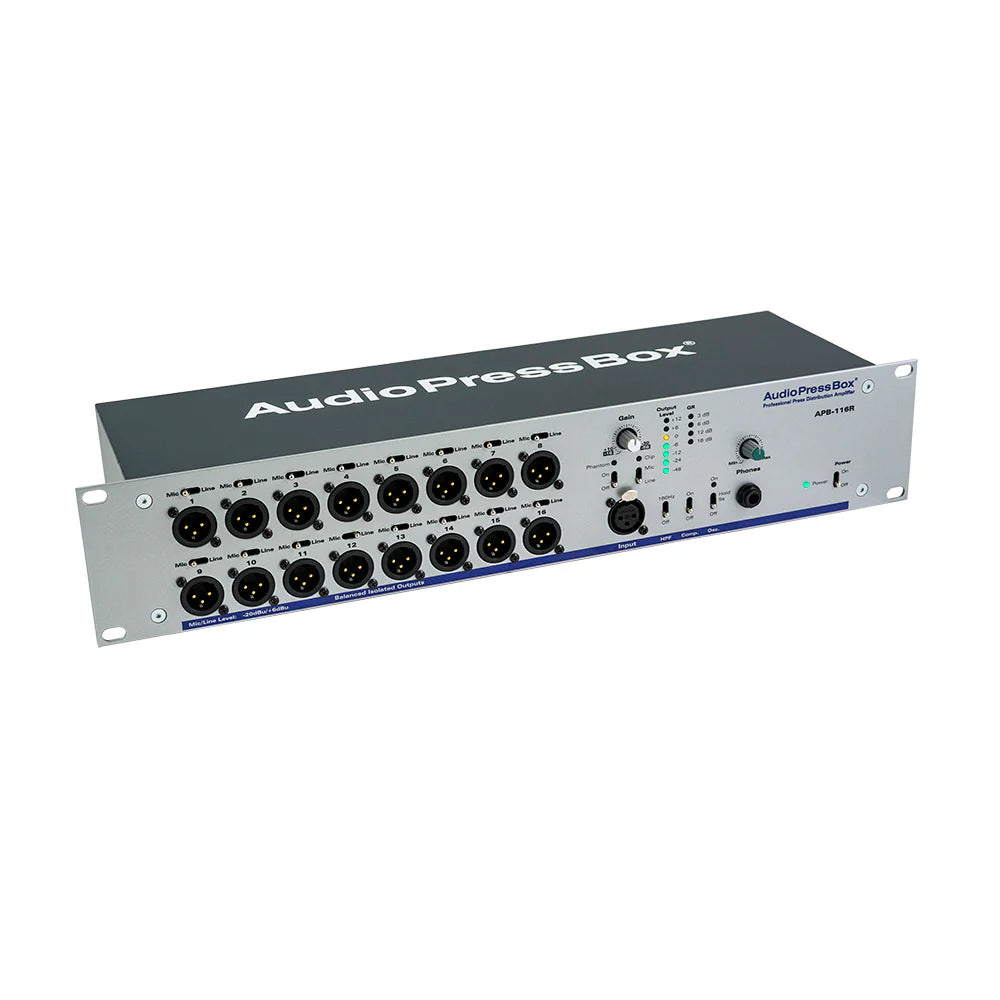

AUDIOPRESSBOX APB-116 R - Active, 1x MIC/LINE Input, 16 internal Lline/MIC Outputs

Dante-enabled AudioPressBoxes are the perfect match for your Dante system. Our mult box devices are suitable for both indoor (fixed installation and rack) and outdoor (portable). Their ability to swap between analog and digital input/s make them flexible for every press event.

1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD

16 High quality independent transformer balanced and isolated outputs

Each Output is switchable between MIC or LINE level

2 internal Output Groups: 8x Output A and 8x Output B

Switchable High-Pass filter for each Input channel

Switchable Compressor and Limiter for each Input channel

Constant level Test signal oscillator with no mistake switch operation

Headphones control Output

AudioPressBox delivers audio in broadcast quality

Features

+48V If you are about to use condenser microphone, turn Phantom power switch ON to feed your microphone with 24/48V. If you use dynamic microphone or microphone with his own power, you can switch this OFF.

PAD If you are using microphone as an input, this button should be set to “Off” position. If you are using input from the mixing console or CD player, please set this switch to “On” position.

HPF (High Pass Filter) This button helps to avoid distributing low-end rumble like a microphone handling noise or pops. You have 2 options – full range or 160Hz low-cut frequency. The one you choose depends on the sound, you want to filter out.

COMP (Compressor/Limiter operation button) To provide perfect output signal without clipping or distortion, you can switch the Comp button ON. If you switch this OFF, signal in output could contain signal clipping or distortion.

OSC (Oscillator operation switch) To test signal level, which is coming to the outputs, you can switch this Test 1kHz sine signal oscillator on. After recipients set the levels in their recording devices, you should switch this function OFF. When compressor switch is set to ON, output signal level won’t exceed this maximum output level.

Transformer Separately transformer isolated outputs.

Rechargeable batteries Optional Built-in Li-Ion battery pack with microprocessor controlled battery management, 10 hour working time at full load. No self-discharge and memory effect, always ready to use. Short charging time compared to conventional batteries.
