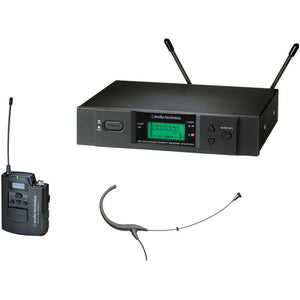

3000 Series (4th Gen) diversity receiver, 470-530 MHz
Audio-Technica ATW-R3100bD True Diversity UHF Wireless Receiver Specs
| System |
|
| System Type |
Frequency-Agile True Diversity UHF Wireless |
| Operating Frequency |
Band D: 655.500MHz to 680.375MHz |
| Miscellaneous |
Minimum Frequency Step: 25 kHz
Maximum Deviation: ±35 kHz |
| Modulation Mode |
FM |
| Dynamic Range |
>110 dB (A-Weighted), Typical |
| THD |
|
| Operating Range |
300' (100 m) typical (open range environment with no interfering signals) |
| Operating Temperature Range |
23° F (-5° C) to 113° F (+45° C) Battery and LCD performance may be reduced at very low temperatures |
| Frequency Response |
70 Hz to 15 kHz (+1 dB, -3 dB) |
| Receiver |
|
| Type of Receiver |
True Diversity |
| Image Rejection |
60 dB Nominal, 55 dB Minimum |
| Type of Outputs |
1 x 1/4" TS Unbalanced
1 x XLRM-type |
| Image Rejection |
60 dB Nominal, 55 dB Minimum |
| RF Sensitivity |
24 dBuV at 60 dB S/N ratio (50Ω Termination) |
| Maximum Output Level |
Balanced: +9 dBV
Unbalanced: +7 dBV |
| Output Connectors |
Unbalanced: 1/4"
Balanced: XLR |
| Antenna Inputs |
BNC-Type, 50Ω
Bias Voltage 12V DC, 60 mA, Each |
| Power Requirements |
12-18V DC, 500 mA |
| Dimensions (WxDxH) |
8.27 x 6.47 x 1.73" (210.0 x 164.4 x 44 mm)
Not Including BNC Connectors or Feet |
| Weight |
38.8 oz (1.1 kg) |
Packaging Info
| Package Weight |
3.75 lb |
| Box Dimensions (LxWxH) |
12.1 x 9 x 2.5" |
Audio-Technica ATW-T310B Wireless Bodypack Transmitter Specs
| Type of Input Connector |
Four-Pin Locking Connector:
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V |
| RF Output Power |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Type/Approx. Life |
(2) 1.5 V AA Alkaline not included
High: 6 hours (alkaline)
Low: 8 hours (alkaline)
Depending on battery type and use pattern |
| Mute Switch |
Power / Mute switch dual function |
| RF Output Power |
High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Antenna Type |
BNC Flexible UHF |
| Display |
Back-Lit LCD Display & Battery / Signal Status LED |
| Dimensions (WxHxD) |
2.60 x 3.43 x 0.94" (66.0 x 87.0 x 24.0 mm) |
| Weight |
2.9 oz (81 g) without batteries |
Packaging Info
| Package Weight |
0.35 lb |
| Box Dimensions (LxWxH) |
11.6 x 3.9 x 3.5" |
Audio-Technica BP894cW MicroSet Subminiature Cardioid Condenser Headworn Microphone (Black) Specs
| Element |
Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern |
Cardioid |
| Frequency Response |
20 Hz to 20 kHz |
| Sensitivity |
Open Circuit Sensitivity: -49 dB (3.5 mV) re: 1 V at 1 Pa |
| Maximum Input Sound Level |
135 dB SPL, 1 kHz at 3% T.H.D. |
| Signal to Noise Ratio |
63 dB, 1 kHz at 1 Pa |
| Current Consumption |
0.1 mA typical at 5 V |
| Voltage Range |
2.5 to 11 V |
| Cable Length |
55" (1.4 m)
Diameter: 0.06" (1.6 mm) |
| Connector |
Locking 4-pin |
| Dimensions |
Microphone: 0.26" (6.5 mm) long, 0.11" (2.8 mm) diameter
Boom: 4.23" (107.4 mm) long, 0.04" (1.09 mm) diameter |
| Weight |
0.07" (2 g), without cable |
Packaging Info
| Package Weight |
0.4 lb |
| Box Dimensions (LxWxH) |
7.3 x 4.6 x 1.4" |
