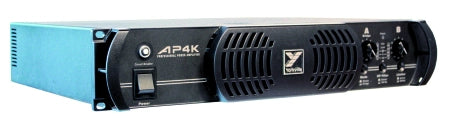

The AP4K is Yorkville Sound’s flagship amplifier. This no-compromise, 2U powerhouse is our premier solution for virtually any touring or installed sound system. A rear panel switch selects 2Ω or 4Ω operation, and bridging the amp delivers up to 3600 watts of pure, clean power into 4Ω or 8Ω loads. The AP4K features a meticulously optimized signal path, with a toroidal transformer to reduce hum and interference. The 3-tier Class H design approaches the efficiency of Class D amplifiers while maintaining the superior transient response and low distortion of the best analog designs. With transparent limiting, advanced protection, all-steel construction, and exceptional sound quality, the AP4K is designed to excel in the most demanding conditions and power exceptional performances.
Features
- 2-Channel Class H Design
- 1800 W per Channel @ 2Ω or 4Ω
- 3600 W Bridged @ 4Ω or 8Ω
- Balanced XLR and 1/4" Inputs
- Binding Post and speakON® Outputs
- Short Circuit, DC, and Thermal Protection
- Soft Turn-On Circuit to Protect Speakers
- All-Steel Construction
- Made in Canada
Specifications
| Amplifier class |
Class H |
| Continuous Average Power AT 8 Ohms (Watts) |
1000 W x2 (4Ω), 600 W x2 (2Ω) |
| Continuous Average Power AT 4 Ohms (Watts) |
1800 W x2 (4Ω),1000 W x2 (2Ω) |
| Continuous Average Power AT 2 Ohm (Watts) |
1800 W x2 (2Ω) |
| Continuous Average Power Bridged (Watts) |
3600 W (8Ω, 4Ω) |
| Burst Average Power AT 8 Ohms (Watts) |
1800 W x2 (4Ω), 1000W x2 (2Ω) |
| Burst Average Power AT 4 Ohms (Watts) |
3500 W x2 (4Ω), 1800 W x2 (2Ω) |
| Burst Average Power AT 2 Ohms (Watts) |
2500 W x2 (2Ω) |
| Burst Average Power Bridged (Watts) |
7000 W (8Ω), 5000 W (4Ω) |
| Frequency Response (Hz CM +/- 1dB) |
20 Hz - 20 kHz |
| Hum and Noise (un / Aweighted -dB) |
-100 dB Unweighted, -115 dB A-Weighted |
| THD -1kHz- 4 OHMS |
<0.1% |
| THD - 20Hz-20kHz CM 4 Ohms |
<0.1% |
| Slew Rate (V/uS) |
25 V/uS Average, 50 V/uS Bridged |
| Damping Factor (30 Hz - 400 Hz AT 8 Ohms) |
600 |
| Crosstalk (1kHz / 20Hz-20kHz) |
-75 / -60 dB |
| Input Impedance - Bal/Unbal (Ohms) |
10 kΩ / 5 kΩ |
| Input Sensitivity (Vrms) For Full Power Out |
1.0 V (2Ω) / 1.4 V (4Ω) |
| Max Voltage Gain (dB) |
36 dB |
| CMRR AT 60Hz (min/typ) |
48 dB / 56 dB |
| Stereo / Bridge (S/B) |
Yes |
| Protection |
DC, Load, Thermal |
| Limiter |
Peak (Defeatable) |
| High Pass Filter |
18 dB per Octave at 50 Hz |
| Cooling |
Fan |
| Cooling Path |
Front to Rear |
| Inputs - XLR |
2 |
| Inputs - 1/4 IN Jacks |
4 |
| Outputs - Speakon 4-pin |
2 |
| Outputs - Binding Post |
2 |
| Power Consumption (typ/max) |
1130 W / 1800 W |
| Rack Spaces |
2 |
| Transformer Type |
Toroidal |
| Exterior Finish |
Black Paint |
| Dimensions (DWH /D fm ears inches) |
16.5" x 19" x 3.5" (41.5 cm x 48.3 cm x 8.9 cm) |
| Weight (lbs / kg) |
41 lbs / 18.5 kg |
Specifications subject to change without notice
