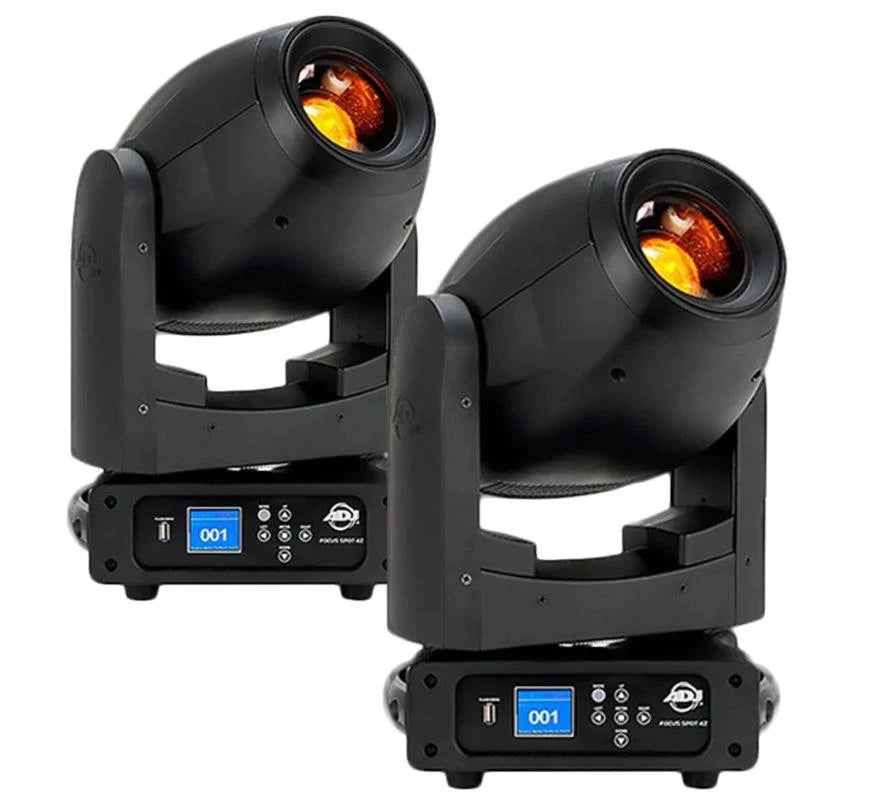

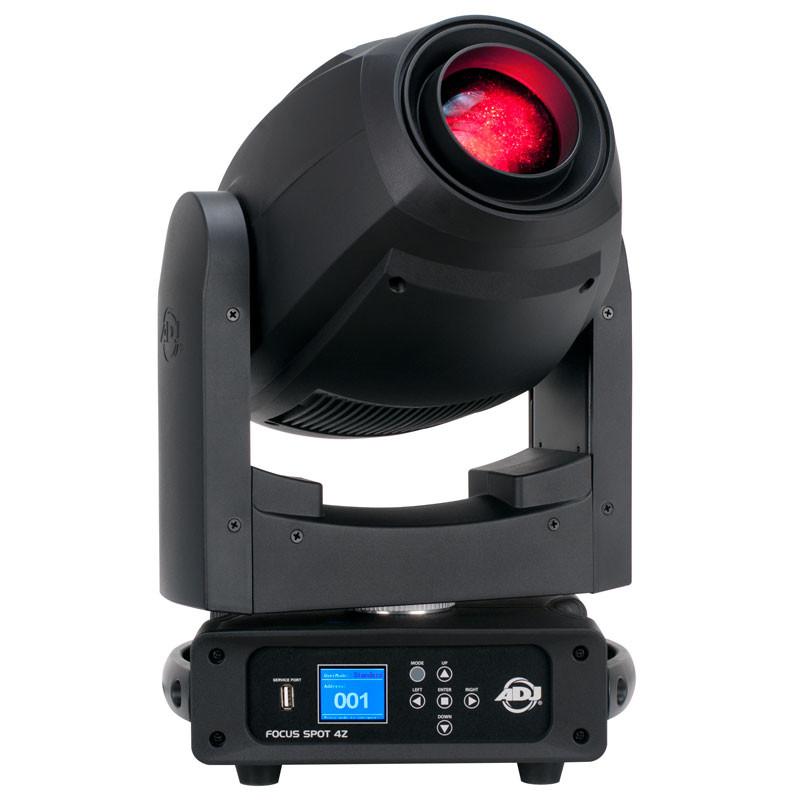

AMERICAN DJ FOCUS-SPOT-4Z (THE PAIR- OPEN BOXES) 200 Watts Led Spot moving head

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans

Color Wheel:

• 8 dichroic colors + white

GOBO Wheel:

• 6 aluminum GOBOs + open
• All GOBOs removable & rotatable
• GOBO Shake Effect
• GOBO size: 22.5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Prism Indexing

Control:

• 3 DMX Channel Modes: 16/18/22 Channels
• Color LCD display with 6-button function menu

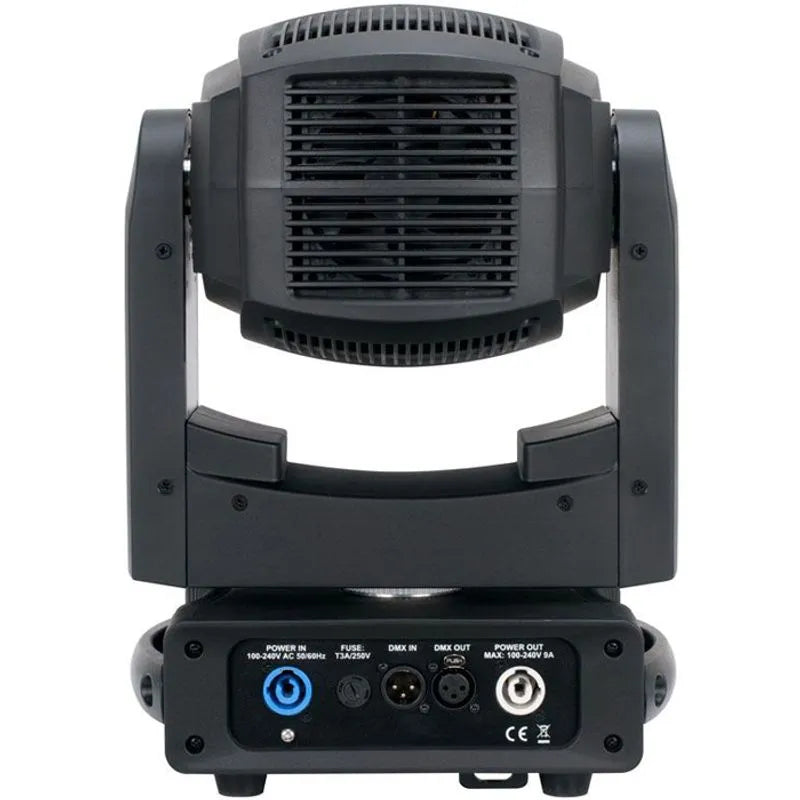

• Data In/Out: 5-pin DMX
• Power In/Out: Locking power In/Out connections (Daisy chain 4 units @ 120V; 10 units @ 240V)
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 540 & 630 degrees
• Tilt: 270 degrees

Dimensions & Weight:

• Dimension: 7.15 (L)” x 10.97” (W) x 18” (H) / 181.5 x 278.6 x 457.4mm
• Weight: 23 lbs. / 10 kg

What’s Included:

• Omega Bracket
• 6 ft/3M Locking power to Edison cable
• Safety Cable

Optional Road Cases:

• DRC MH: 2 Focus Spot 4Z fit in the DRC MH Road Case
• QRC MH: 4 Focus Spot 4Z fit in the QRC MH Road Case

Rating/Approvals:

• cETLus approved (Control #4010765)
