Description

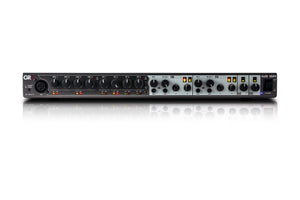

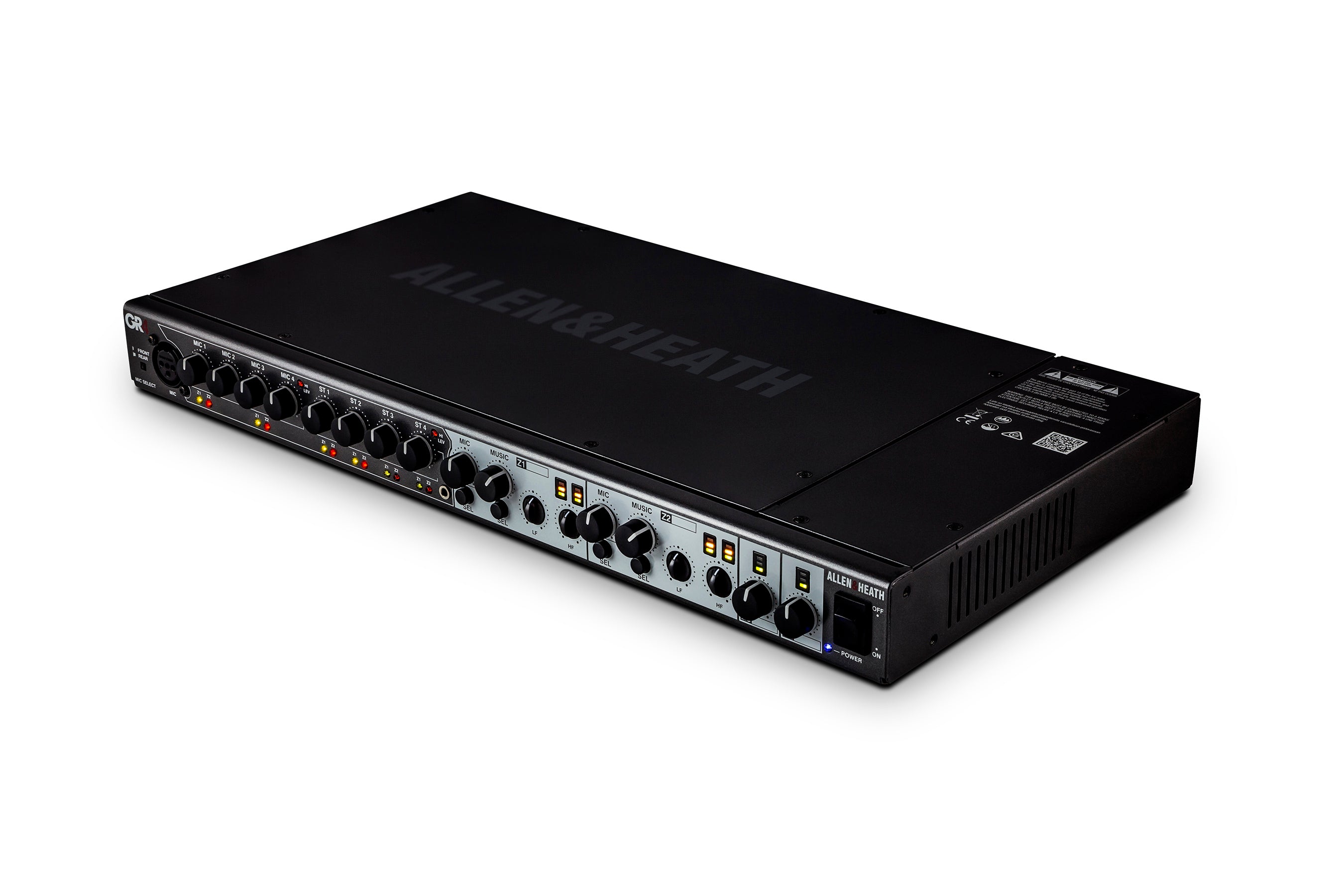

GR4 is a 1U rack-mounting or desktop audio mixer, providing simple yet comprehensive control of background music and paging in bars, restaurants, stores and other leisure / retail environments. Standout features include optional remote wallplates, a mic input on the front panel, plus a 3.5mm jack on the front for portable music sources.
Connectivity
MIC INPUTS
Four mic inputs on rear mount Phoenix connectors with MIC1 selectable to an optional front mounted XLR.
LINE INPUTS
Four stereo inputs on rear mount phono connectors. An additional front mounted 3.5mm jack socket overrides input 4 phono source.
ZONE OUTPUTS
Two stereo (mono selectable via internal jumper) zones on rear mount Phoenix connectors. An additional two mono zone outputs are available with mix output being selectable from internal jumpers.
CONTROL
Paging and Alarm contact inputs on rear mounted Phoenix connectors allow integration with 3rd party paging stations and fire alarm systems.
REMOTE
Remote control can be achieved via PL-14 Remote connected to the rear mounted RJ45 or custom/3rd party analogue remotes connected to the rear mounted Phoenix connectors.
PL-14 REMOTE CONTROL
• Rotary Volume control with four source select switches.
• Connection via standard Cat5e cabling.
• RJ45 Link through connector for adding additional controllers (Maximum of two).
• Three versions to suit UK, EU or US standard front panels.
Features
MIXING
Individual mix and selectable control of all inputs to Z1 & Z2. Multiple options for configuring mix outputs to Z3 & Z4 (via internal jumpers).
DYNAMICS
Gain and 2 band EQ available on all mic inputs with an additional 2 band EQ available on Z1 & Z2 outputs.
PRIMARY MIC MODE
When audio sensed on MIC1 channel and/or PAGE contact closure is sensed then music is faded to pre-set level and MICs2-4 muted for the duration of the announcement. MIC1 zone select LEDs flash slowly when in priority mic mode.
Gain / volume rotary controls can be removed and capped (caps supplied) to prevent unauthorised use.
INSTALLER SELECTABLE MODES, INCLUDING:
Primary and secondary mic modes
Perfect for controlling hierarchal microphone feeds such as simple paging announcements.
Emergency mic mode
For use with 3rd party systems in emergency situations. Mutes all inputs except MIC1 on alarm contact closure.
Juke box mode
Provides a priority line input to the system for pre-recorded announcements or programme material such as Sports channels.
ADVANCED FEATURES
Entering programming mode allows the following parameters to be adjusted:
Ducker attenuation
Ducker hold time
Ducker release time
Music crossfade time
Jukebox hold time
Jukebox release time
Allen & Heath GR4 Specs
| Microphone Inputs | Mic Input Sensitivity (Gain = Min): 0 dBu Mic Input Sensitivity (Gain = Max): -50 dBu Mic Level control (Max): +5 dB Mic Level control (Min): -80 dB Mic HPF -3 dB: 150 Hz Mic EQ LF: ±15 dB fc = 80 Hz Mic EQ HF: ±15 dB fc = 8 kHz Mic Frequency Response 20 Hz – 20 kHz: ±1 dB Mic THD+n @ 0 dBu in 1 kHz: 0.004% 22 Hz - 22 kHz Mic THD+n @ -30 dBu in 30 dB gain 1 kHz: 0.005% 22 Hz - 22 kHz Mic Hi Level warning LED (Unity gain): +18 dBu Clip level (Unity gain): +21 dBu |
| Stereo Inputs | ST Input Sensitivity (Gain link OFF): 0 dBu ST Input Sensitivity (Gain Link ON): -10 dBu ST Level control (Max): +6 dB ST Level control (Min): -76 dB ST Frequency response 20 Hz – 20 kHz: ±0.5 dB ST THD+n @ -10 dBu in 1 kHz: 0.015% 22 Hz - 22 kHz ST THD+n @ 0 dBu in 1 kHz: 0.035% 22 Hz - 22 kHz Crosstalk from Unselected Channel: -75 dB @ 1 kHz |
| Zone Output | Main Zone Level Control (Max): 0 dB Main Zone Level Control (Min): -74 dB Main Zone Hi Lev LED (Unity Gain): +18 dBu Main Zone EQ LF: ±15 dB fc = 80 Hz Main Zone EQ HF: ±15 dB fc = 8 kHz Main Zone Clip Level (Unity gain): +21 dBu |
| Noise | ST Input to Main Zone Output (Unity): -90 dBu 22 Hz - 22 kHz Mic Input Routed at Min Gain as Well: -88 dBu 22 Hz - 22 kHz Mic Input Routed at Max Gain: -77 dBu 22 Hz - 22 kHz (150R source) |
| Power | 100 - 240 VAC, 50/60 Hz, 20 W Power Consumption: 15 W (with no remote attached) |
| Dimensions | 1.9 x 9.5 x 17.2" / 48.0 x 242.0 x 438.0 mm |
| Weight | 7.5 lb / 3.4 kg |
