Every input channel on CQ can be switched between two modes.
Quick Channels offer instrument and application specific processing with the ability to dial in a full channel of processing via a single knob.
Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.

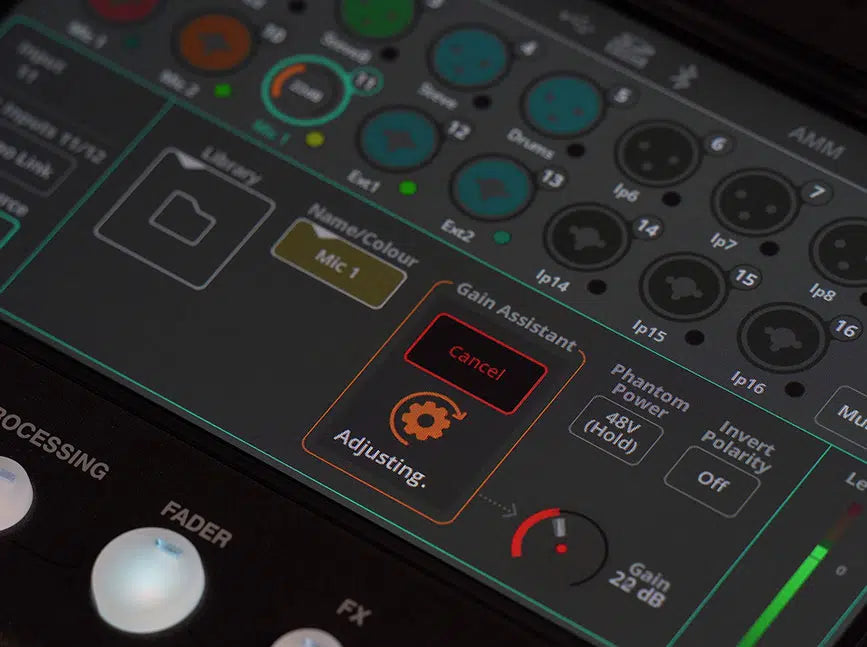

Gain Assistant
Faster Setups
Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.
CQ’s Gain Assistant quickly and accurately sets the optimal gain level for one or multiple input channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.
Feedback Assistant
Say Goodbye to Feedback
CQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.
Pristine Sound
You Won’t Believe Your Ears
CQ draws on technology from our latest generation of live sound consoles to deliver audio quality previously unimaginable at this level of mixer.
Pristine 96kHz audio is partnered with studio-grade onboard processing and an optimised suite of FX to set a new standard for what’s possible with ultra-compact digital mixers.
Built-In FX
A New Breed of Effects
CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.
Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.
Multi Channel Control
DCAs & Mute Groups
CQ makes it easy to handle multiple channels simultaneously with 4 DCAs, each capable of controlling the level of any combination of inputs, outputs, and FX, for simple single-fader control of multiple channels, such as a drum kit, without affecting their relative levels.
There’s also 4 Mute Groups, enabling you to mute and unmute multiple channels at once via a single button, perfect for muting all stage mics or monitor speakers.
User Friendly
You’re Always In Control
CQ-12T gives you all the tactile control you need to get around the interface quickly.
The 7″ touchscreen and rotary control make it simple to set up and get mixing, and 3 Custom SoftKeys let you access commonly used functions at the push of a button.
Connect a router or access point and the free CQ MixPad app also gives you full control of your mix from anywhere in the venue.
Features
Inputs
- 5 XLR
- 5 XLR/TRS Combi
- 2 TRS (stereo)
Outputs
- 2 XLR (Main)
- 6 TRS (Monitors)
Stereo USB record/playback with dedicated input channel
Stereo Bluetooth playback with dedicated input channel
16×16 USB-B interface (48/96kHz)
16×16 SD record/playback (48/96kHz)
2 FX engines
3 Custom SoftKeys
Dual Footswitch connection
7” Capacitive touchscreen with associated rotary control
Assignable TRS headphone output
Specifications
-
Inputs
- 5x XLR
- 5x XLR/TRS ‘Combi’
- 2x TRS (stereo)
-
Outputs
- 2x XLR (Main)
- 6x TRS (Monitors)
- Assignable TRS headphone output, 6.35mm
- 16×16 USB-B interface (48/96kHz)
- 16×16 SD record/playback (48/96kHz)
- Stereo USB record/playback with dedicated input channel
- Stereo Bluetooth playback with dedicated input channel
- 2x FX engines
- 3x Custom SoftKeys
- Dual Footswitch connection
- 7” Capacitive touchscreen with associated rotary control
- Control via Apps - Windows, MacOS, iOS, Android
- Dimensions (WxDxH) - 11.4 x 9.5 x 3.5 inch (290.4 x 241.9 x 88.2mm)
- Weight - 5.3 lbs (2.4kg)
