Description

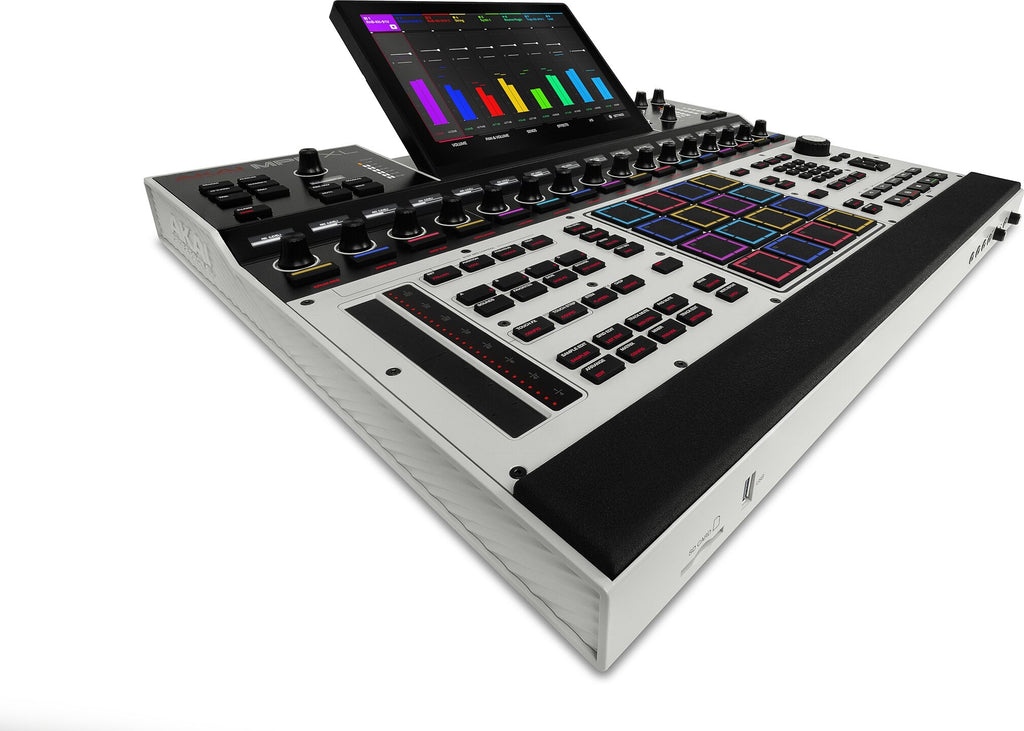

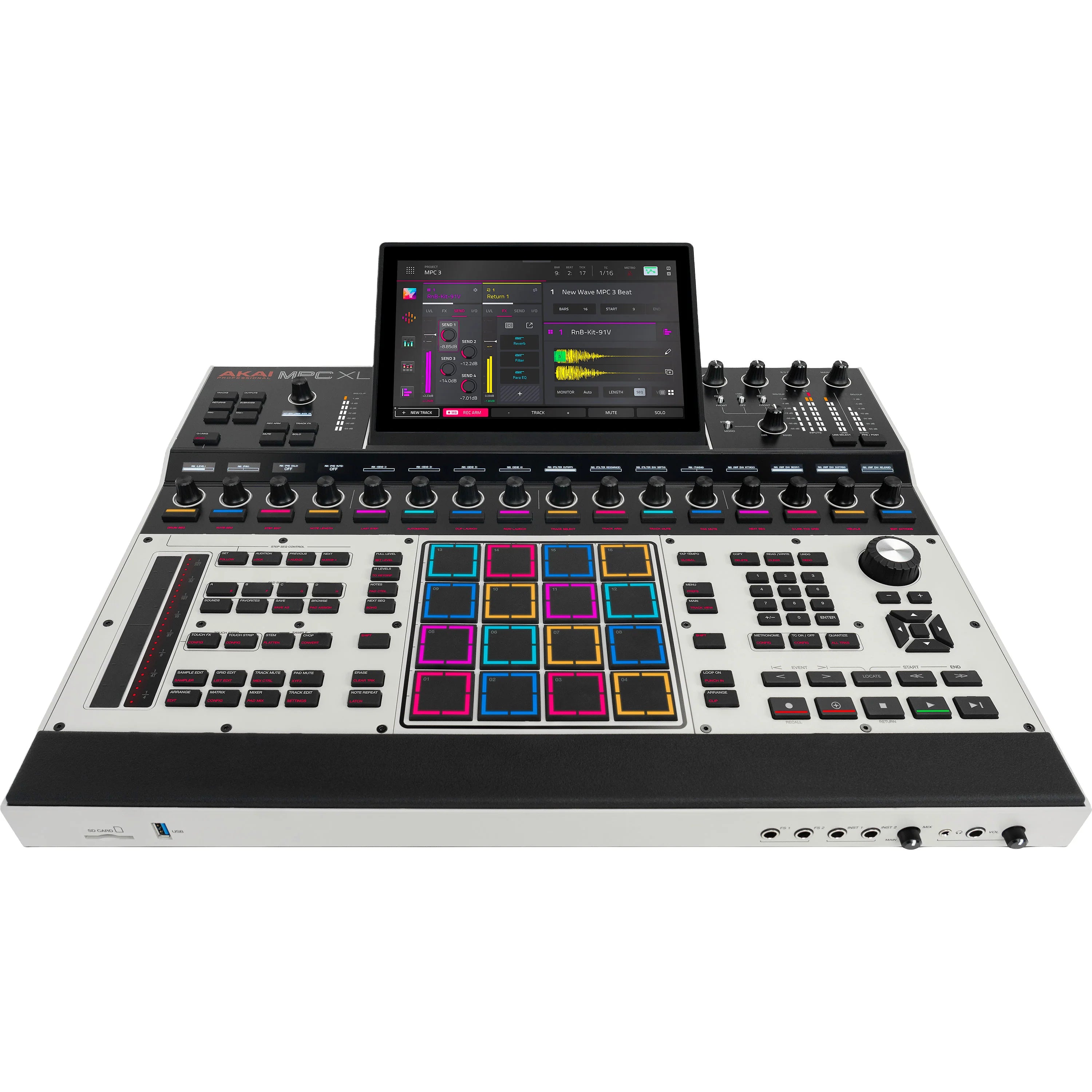

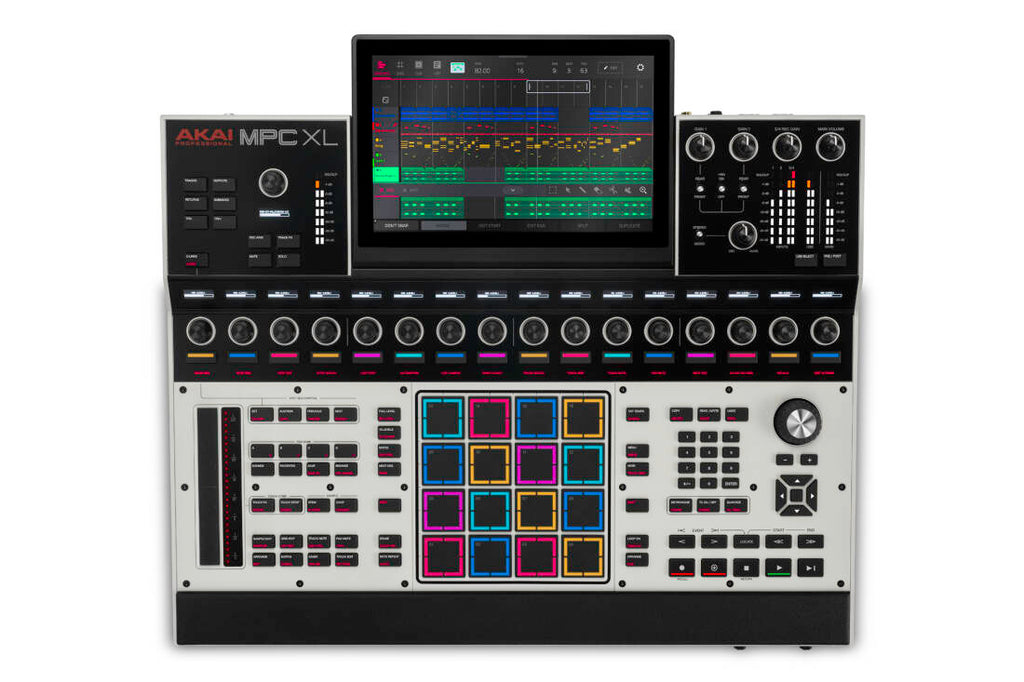

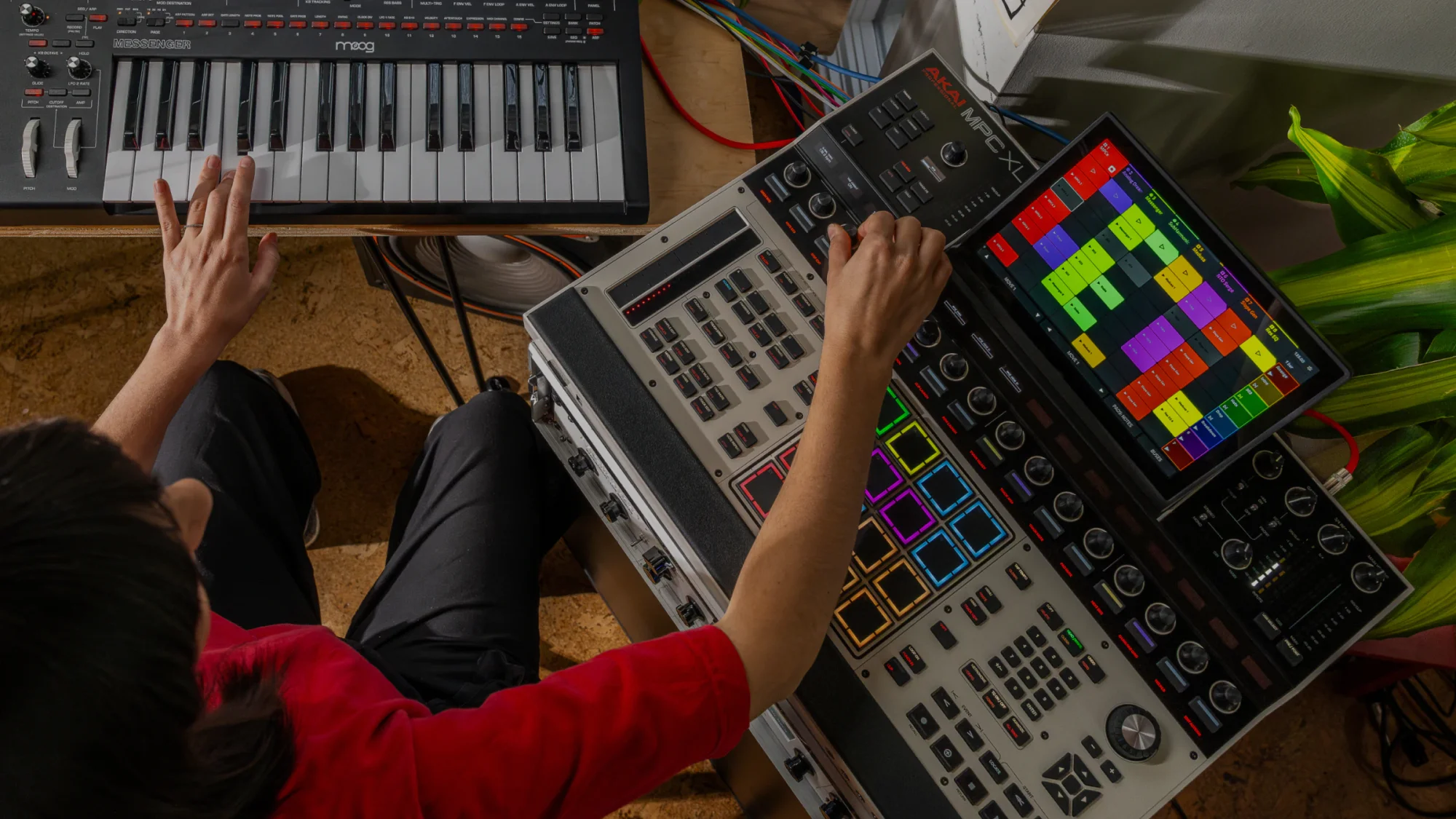

MPC XL puts the power of a full studio right at your fingertips. The most advanced MPC yet, this all-in-one production hub is made for more than sampling and sequencing alone. It’s designed to give you complete creative freedom over every sound, loop, sample, sequence, or idea for your next best beat. It’s your entire workflow—made to work for you.
KEY FEATURES
Standalone hardware with MPC3 OS for a streamlined workflow
Gen 2 8-core processor with 4x the processing power of previous MPCs
16GB RAM for running multiple plugins simultaneously
256GB internal SSD storage for saving projects, plug-in instruments, samples, and presets
Expressive MPCe pads with 3D-sensing technology with 4 quadrants per pad
Assignable performance touch-strip for tactile control of Performance FX, note repeats, Channel faders, and more
Step sequencer with 16 RGB function buttons
16 Q-Link knobs with performance-control OLEDs for immediate visual feedback
XL Channel Command allows for quick access to mixing and recording parameters (including level, sends, and outputs) at the touch of a button—with a dedicated OLED display and encoder for parameter control and visual feedback
One-to-one function buttons for immediate access to every feature
10.1” HD multi-gesture touchscreen with tilt
2 XLR/TRS combo inputs with mic preamps and phantom power for crystal-clear recordings
2 dedicated instrument inputs for recording guitars and keyboards
8 separate line outputs for external routing and mixing
USB-C connectivity for 24 channels of audio I/O, 32 channels of MIDI IO, and easy connectivity to sample from smart devices
8 stereo 1/8” CV/Gate outputs for a total of 16 CV outs
Wi-Fi and Bluetooth To enable wireless collaboration and file transfer

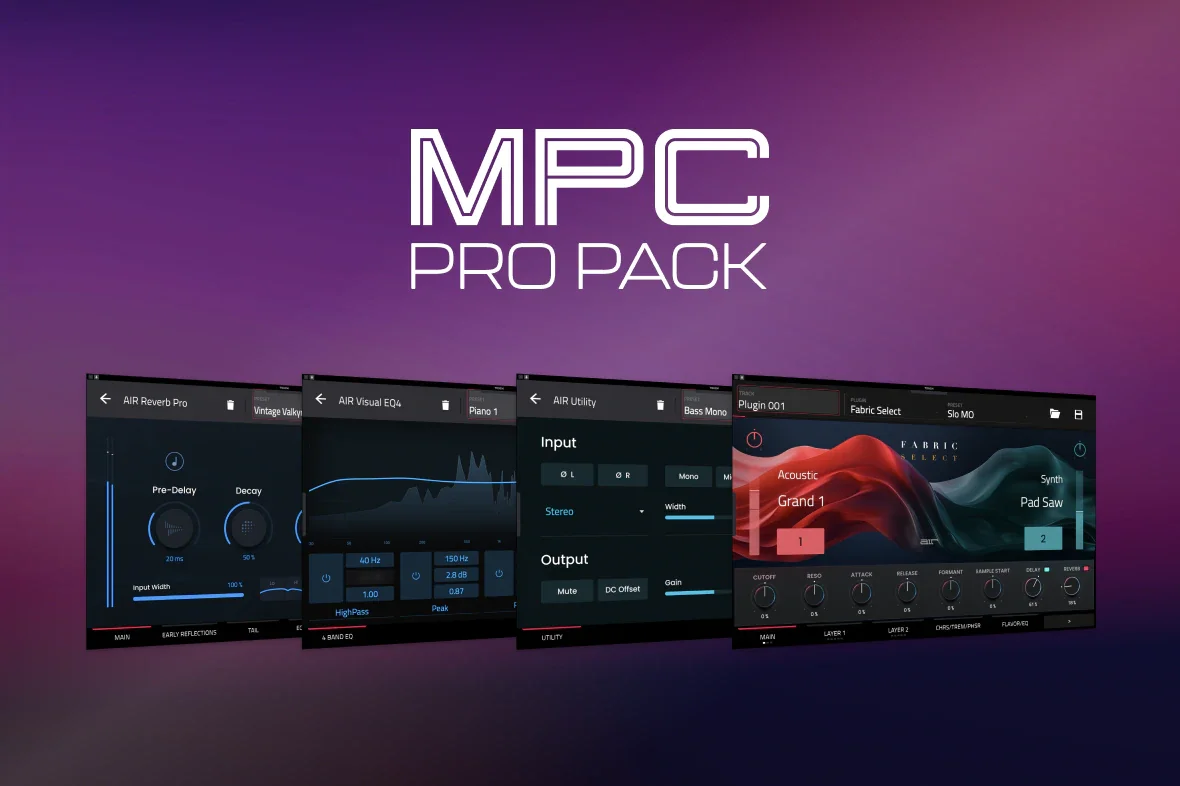

MPC Pro Pack. Powered by next-gen MPC3 OS and enhanced with new MPC Pro Pack features like studio-grade time-stretch, clip-launching, expanded CV control, and new pro plugins
Clip Matrix. Clip launch workflow for enhanced song arranging and performance
ALL STANDALONES
MPC XL has everything you need for pro-level music making. It features ultra-responsive MPCe pads, a dedicated step sequencer, touch-sensitive Q-Links with OLED displays, a next-gen 8-core processor, 16 GB RAM, hands-on performance controls, advanced sequencing tools, deep I/O connectivity, and so much more. Integrated with MPC3 OS, this system supports up to 32 plugin instruments, 16 audio tracks, and 256 voices, making it a studio-grade workhorse.
A Complete Studio CenterpiecE
The flagship of all standalone music production systems, MPC XL is an all-in-one studio hub. Produce your entire album, drive your external hardware, and command your setup from one powerful instrument—no computer required.
Powerful Processing
Powered by a new Gen 2 8-core processor with 16GB of RAM, MPC XL delivers four times the performance of previous MPCs. Load multiple plugin instruments, run complex sessions, and navigate your projects without interruption.
MPCe pads with 3D-sensing technology brings a new level of expression to beatmaking and production. Each pad features four distinct quadrants, enabling advanced X/Y control, sound morphing, looping, layering, and modulation for the most dynamic playing experience.
Performance-Ready Sequencing
Build, edit, and perform ideas with the integrated 16-step RGB function button sequencer. Whether you’re crafting complex beats, sequencing external synths, or arranging clips, the system gives you complete control over your entire workflow.

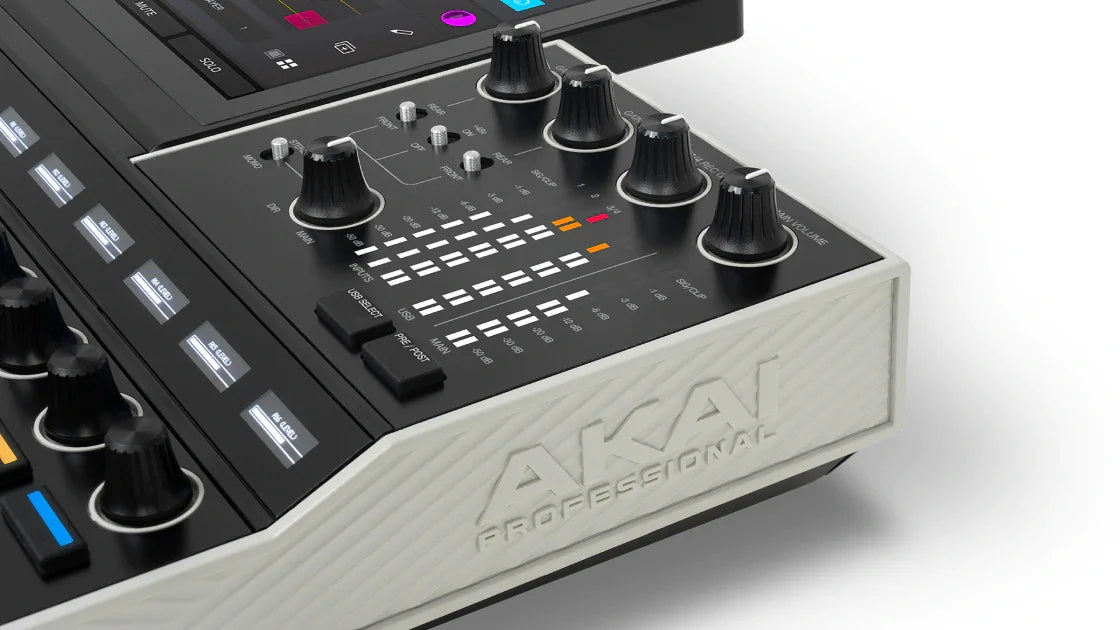

Connect Your Entire Studio
Professional-grade I/O options allow for convenient connectivity with external gear: dual XLR/TRS combo inputs with mic preamps and phantom power, dedicated instrument inputs for guitars and keyboards, eight individual line outputs for routing and mixing, and eight stereo 1/8” CV/Gate outputs providing 16 total CV channels. USB-C delivers 24 channels of audio I/O, 32 channels of MIDI, and seamless sampling from smart devices.
Storage and Setup That Scales with You
A 256GB internal SSD gives you plenty of space for projects, samples, instruments, and presets. With no computer needed and instant one-to-one function buttons for every major MPC XL feature, you can stay focused on creating instead of menu diving.

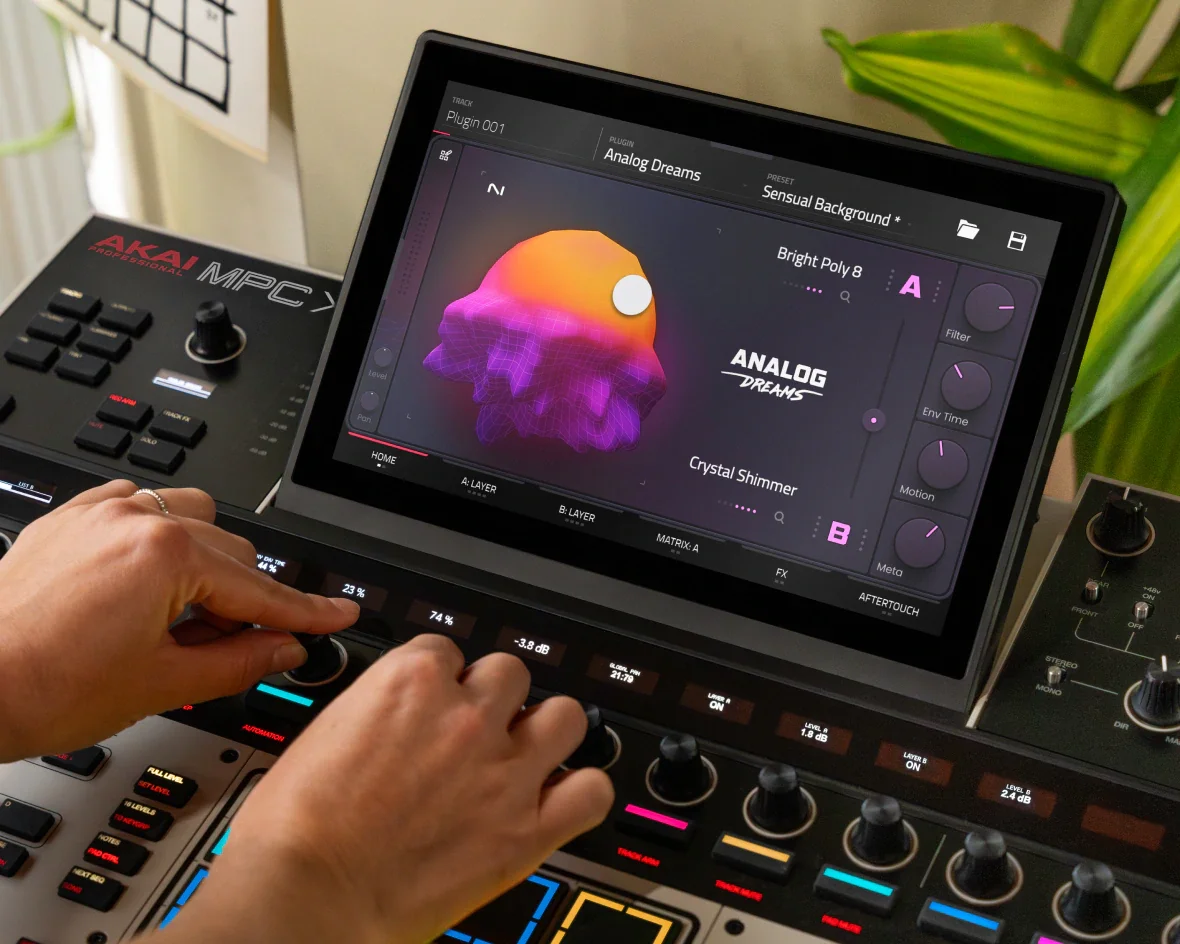

Loaded with Inspiration
Jump straight into production with an extensive library of premium plugin instruments, effects, and samples. MPC XL’s included software package offers a deep toolbox of inspiration for beatmakers, producers, finger drummers, DAWless performers, synthesists, and songwriters alike.
In this video, we join Andy Mac for a deep dive into the powerful new features of the MPC XL, exploring what’s new, what’s possible, and how it all comes together to supercharge your creative workfloW
Everything you need to creatE

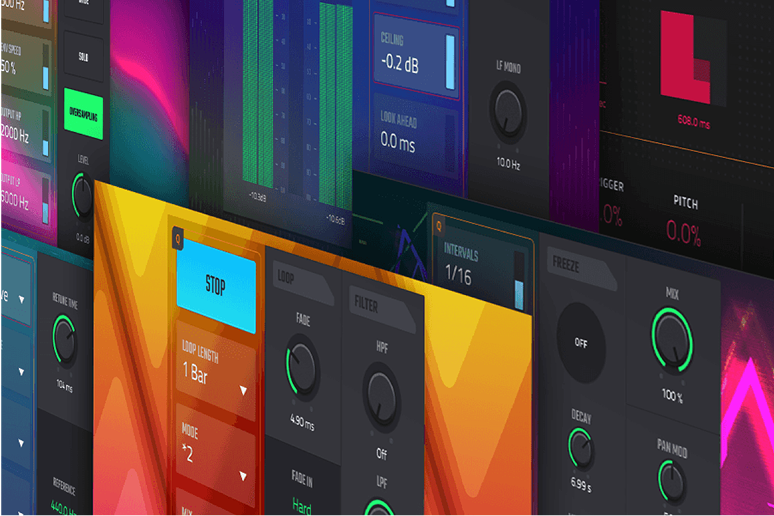

Included Software
Expand your creativity
with supporting Akai products
Technical Specifications
Feature-packed standalone studio centerpiece made for the next generation of beatmakers, songwriters, and music producers
Digital Audio System
ADCs
24-bit @ 44.1, 48, or 96 kHz
DACs
24-bit @ 44.1, 48, 88.2, or 96 kHz
Digital Signal Processing
32-bit floating point
Mic Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.19 / -0.16 dB)
Dynamic Range
109.8 dB (A-weighted)
SNR
109.3 dB (1 kHz, +4 dBu, A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
Preamp EIN
-134 dBu (max gain, 40 Ω source, A-weighted)
-129 dBu (max gain, 150 Ω source, unweighted)
Maximum Input Level
+12.7 dBu
Sensitivity
-45.5 dBu
Gain Range
58.2 dB
Line Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.09 / -0.05 dB)
Dynamic Range
109.8 dB (A-weighted)
SNR
109.4 dB (1 kHz, +4 dBu, A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
Maximum Input Level
+20.1 dBu
Sensitivity
-9.6 dBu
Gain Range
29.7 dB
Line Inputs 3–4
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.09 / -0.05 dB)
Dynamic Range
110.8 dB (A-weighted)
SNR
109.4 dB (1 kHz, +4 dBu, A-weighted)
THD+N
0.001% (1 kHz, +4 dBu, -1 dBFS)
Maximum Input Level
+20.3 dBu
Sensitivity
-10.3 dBu
Gain Range
30.6 dB
Instrument Inputs 1–2
(2) balanced XLR+1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.15 / -0.05 dB)
Dynamic Range
111.0 dB (A-weighted)
SNR
109.6 dB (1 kHz, +0 dBu, A-weighted)
THD+N
0.0013% (1 kHz, +0 dBu, -1 dBFS)
Maximum Input Level
+10.1 dBu
Sensitivity
-19.6 dBu
Gain Range
29.7 dB
Phono Inputs
(2) unbalanced RCA
Dynamic Range
103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
SNR
97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
THD+N
0.036% (1 kHz, -46 dBu, -1 dBFS)
Maximum Input Level
65 mVrms (1 kHz)
Sensitivity
2 mVrms (1 kHz)
Main Outputs 1–2
(2) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.06 / -0.31 dB)
Dynamic Range
115.6 dB (A-weighted)
THD+N
0.003% (1 kHz, -1 dBFS)
Maximum Output Level
+20.3 dBu
Output Impedance
100 Ω
Line Outputs 3–8
(6) impedance-balanced 1/4” (6.35 mm) TRS
Frequency Response
20 Hz – 20 kHz (+0.06 / -0.24 dB)
Dynamic Range
116.3 dB (A-weighted)
THD+N
0.005% (1 kHz, -1 dBFS)
Maximum Output Level
+20.4 dBu
Output Impedance
100 Ω
Headphone Output
(1) 1/4” (6.35 mm) stereo headphone
(1) 1/8” (3.5 mm) stereo headphone
Dynamic Range
100.6 dB (A-weighted)
THD+N
0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
Frequency Response
20 Hz – 20 kHz (+0.06 / -0.31 dB)
Maximum Power Delivered
260 mW (<1% THD, 32 Ω headphones)
Maximum Output Level
+20.4 dBu
Output Impedance
32 Ω
Pads
(16) velocity- and pressure-sensitive pas with 3D-sensing technology
(8) banks (selectable via Pad Bank buttons)
Knobs
(17) 360° touch-sensitive Q-Link knobs
1) 360° encoder with push
(7) 270° knobs (gain, mix, level)
Buttons
(105) dedicated buttons
- (36) single-color LED
- (43) dual-color LED
- (1) dual color + red
- (17) RGB LED
- (8) unlit
Display
(1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)
(17) monochrome 128×32 OLED displays
CPU
Processor:
8-core processor
RAM:
16 GB
Storage:
256 GB internal NVMe SSD + SATA expansion bay
Connections
(2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
(2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
(2) RCA phono inputs (stereo pair)
(2) 1/4” (6.35 mm) instrument inputs
(2) 1/4” (6.35 mm) TS footswitch inputs
(8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
(1) 1/4” (6.35 mm) stereo headphone output
(1) 1/8” (3.5 mm) stereo headphone output
(4) 5-pin MIDI outputs
(2) 5-pin MIDI inputs
(8) stereo 1/8” (3.5 mm) CV/Gate outputs
(1) USB Type-C port
(3) USB Type-A ports
(1) SD card slot
(1) power adapter input
(1) drive bay for 2.5” SATA drive
Wireless
Wi-Fi
Bluetooth
Power
via power adapter:
19 V, 3.42 A, center-positive (adapter included)
Dimensions
21.4” × 19.2” × 3.7”
543 × 488 × 94 mm
Weight
15.87 lbs
7.2 kg
