Description

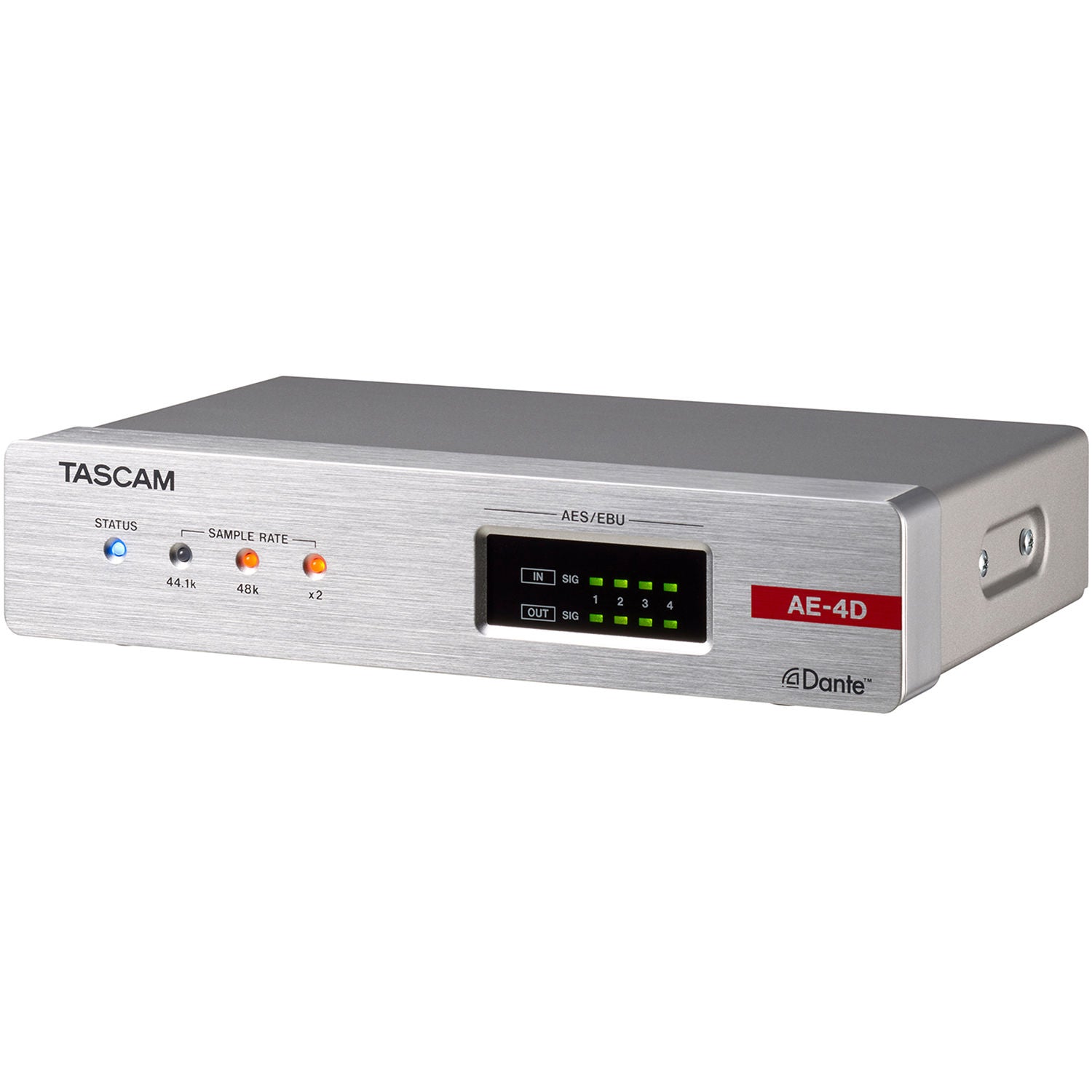

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.
The AE-4D is a simple converter that converts 4-channel AES/EBU input signals into 4-channel Dante output signals, or 4-channel Dante input signals into 4-channel AES/EBU input signals.
The Dante Compact Processor Series has a line-up of models with different input/output specifications:
- MM-4D/IN, 4-channel mic/line input
- ML-4D/OUT, 4-channel line output
- MM-2D, 2-channel mic/line input/output
- AE-4D, AES/EBU 4-channel input/output
For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.
The Dante Compact Processor Series provide easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments.
Level control is available when converting AES/EBU signals and Dante signals, and managing the input/output of an AES/EBU unit makes it easier to work with Dante systems. In addition, with a matrix mixer function and effects installed in the Dante Compact Processor Series, it is possible to build up a complete small system with units from this series only.
Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.
The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible.
These are some of the benefits provided when adopting Dante Network Audio:
-
Reduction of system costs
It is possible to have a maximum transmission of 128ch I/O with one single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits. -
Improved connection flexibility
All equipment can be freely connected and routed by applying star connections.
Spec description
| General | |
| Formats and channels | 44.1/48kHz,16/24-bit, 4 channels 88.2/96kHz,16/24-bit, 2 channels (double speed) |
| Input/output ratings | |
| DATA/DATA+PoE connectors | |
| Connector | RJ-45 |
| Transmission protocol | Dante |
| Gigabit Ethernet standard | 1000BASE-T (IEEE 802.3ab) |
| Cables | category 5e or faster STP cables |
| DIGITAL INPUT (AES/EBU) connectors | |
| Connector | XLR-3-31 |
| Input impedance | 110 Ω |
| Format | AES3-2003/IEC60958-4 (AES/EBU) |
| Supported sampling frequencies | 32 kHz - 192 kHz (Sampling rate converter is always on) |
| DIGITAL OUTPUT (AES/EBU) connectors | |
| Connector | XLR-3-32 |
| Output impedance | 110 Ω |
| Format | AES3-2003/IEC60958-4 (AES/EBU) |
| Supported sampling frequencies | 44.1, 48, 88.2 and 96 kHz |
| Other | |
| Power | PoE class 0 TASCAM PS-P1220E AC adapter (sold separately) |
| Power consumption | 3W |
| Dimensions | 214 x 44.45 x 136.1 mm (W x H x D, including protrusions) |
| Weight | 795 g |
| Operating temperature range | 0°C-40°C |
| Included items | Installation brackets, Owner's manual (including warranty) |
MM-4D/IN, ML-4D/OUT, MM-2D, AE-4D comparison chart
Input channels
| Products | Analog (Mic/Line) | Digital (AES/EBU) | Digital (Dante) |
| MM-4D/IN-X | 4ch | - | 4ch |
| MM-4D/IN-E | 4ch | - | 4ch |
| ML-4D/OUT-X | - | - | 4ch |
| ML-4D/OUT-E | - | - | 4ch |
| MM-2D-X | 2ch | - | 4ch |
| MM-2D-E | 2ch | - | 4ch |
| AE-4D | - | 4ch | 4ch |
Output channels
| Products | Analog (Line) | Digital (AES/EBU) | Digital (Dante) |
| MM-4D/IN-X | - | - | 4ch |
| MM-4D/IN-E | - | - | 4ch |
| ML-4D/OUT-X | 4ch | - | 4ch |
| ML-4D/OUT-E | 4ch | - | 4ch |
| MM-2D-X | 2ch | - | 4ch |
| MM-2D-E | 2ch | - | 4ch |
| AE-4D | - | 4ch | 4ch |
Input/Output/GPI connectors
| Products | Analog | Digital (AES/EBU) | Digital (Dante) | GPI |
| MM-4D/IN-X | XLR | - | RJ45 | - |
| MM-4D/IN-E | Euroblock | - | RJ45 | Euroblock |
| ML-4D/OUT-X | XLR | - | RJ45 | - |
| ML-4D/OUT-E | Euroblock | - | RJ45 | Euroblock |
| MM-2D-X | XLR | - | RJ45 | - |
| MM-2D-E | Euroblock | - | RJ45 | Euroblock |
| AE-4D | - | XLR | RJ45 |
