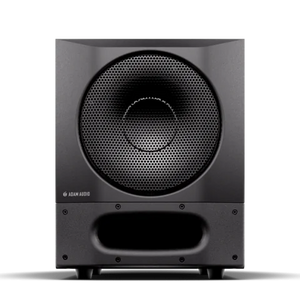

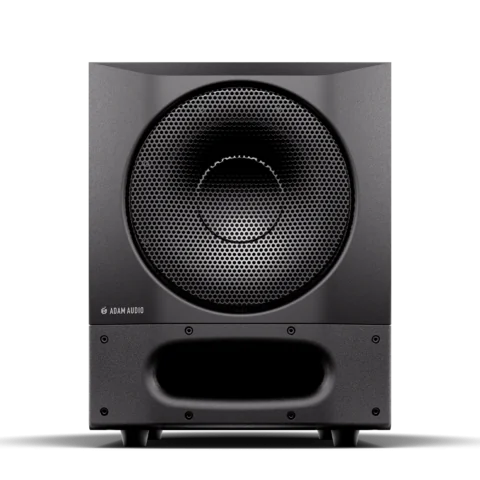

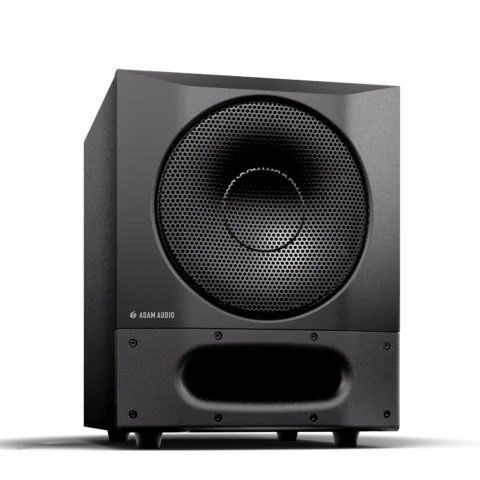

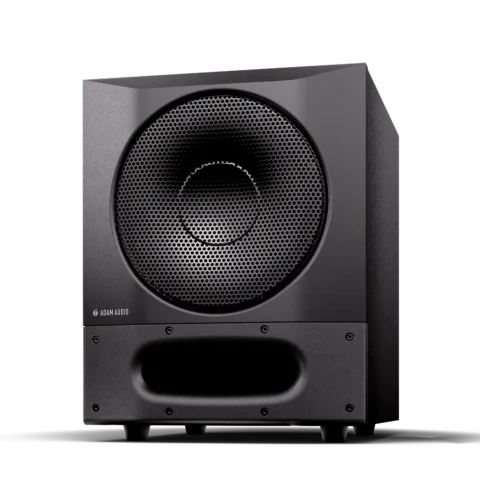

The Sub10 PRO combines advanced DSP, powerful low-frequency audio reproduction and network-based calibration for stereo and multichannel monitoring systems. Its high-excursion 10” woofer and Class D amplifier deliver plentiful SPLs with minimal distortion thanks to the FEA-optimized bass port.

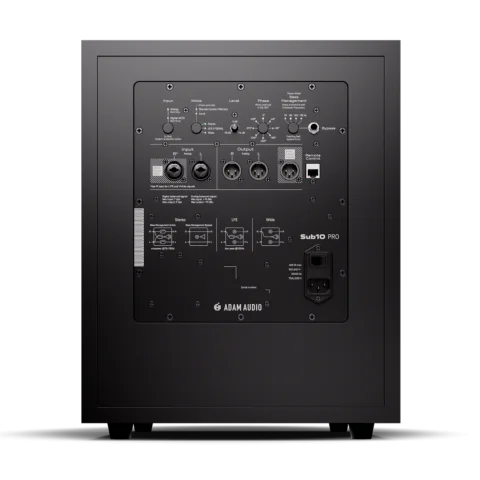

Professional connectivity on the backplate includes AES3 digital, balanced analog XLR and TRS, precise phase and crossover controls, plus a footswitch input for bass management. ADAM Control facilitates manual calibration over 4-bands of parametric EQ, plus the deployment of Sonarworks calibration profiles and firmware updates.
Three operating modes – Stereo, LFE and Wide – support conventional 2.1, immersive, and full-range applications. A robust wooden cabinet and protective metal grille ensure durability that is backed by a 2-year warranty, extendable to 5 years upon product registration.
Fiber-reinforced, paper-based 10” Woofer
Total Peak Amp. Power: 200 WCalibration options: ADAM Control, SoundID Reference by Sonarworks, Backplate
Frequency Response @ -6 dB: 21 - 300 Hz
Max. SPL at 1 m (Peak): 106 dB SPL
General Data
Cabinet Design: Front Fire and front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Power consumption (max, standby): 450 W, 2.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 450 W max.
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
Weight: 22.8 kg (50 lbs 4 oz)
Dimensions (Height x Width x Depth): 450 mm x 360 mm x 450 mm (17 3/4″ x 14 1/8″ x 17 3/4″)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Sub10 PRO subwoofer, power cable, Quick Start Guide
Audio Connectors
Analog Inputs: 2 x XLR / TRS combi
Digital Input: XLR AES3
Analog Input Impedance: 25 kOhm
Digital Input Impedance: 110 Ohm
Max. Input Level: +19 dBu
Analog Outputs: 2 x XLR
Digital Outputs: XLR AES3
Amplification
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 325 W
RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control (Windows and MacOS available)
