Designed for songwriters, producers, and music lovers, the D3V monitors can be directly connected to computers and mobile devices via USB-C and offer a wealth of features, plus incredible audio performance in a remarkably compact form.

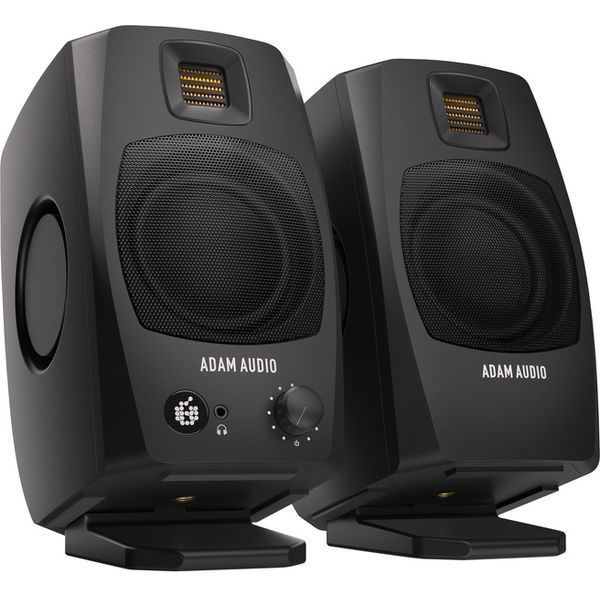

The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

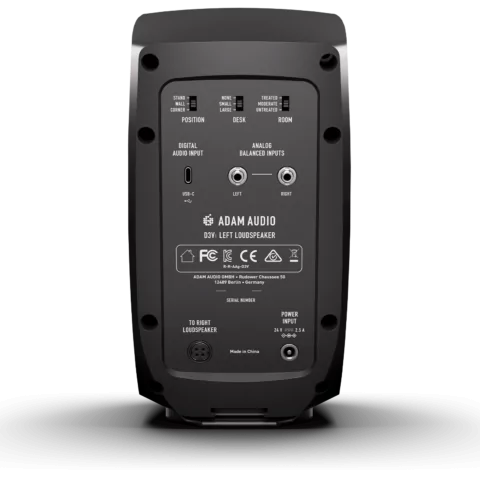

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points (3/8″) for perfect positioning in any environment.

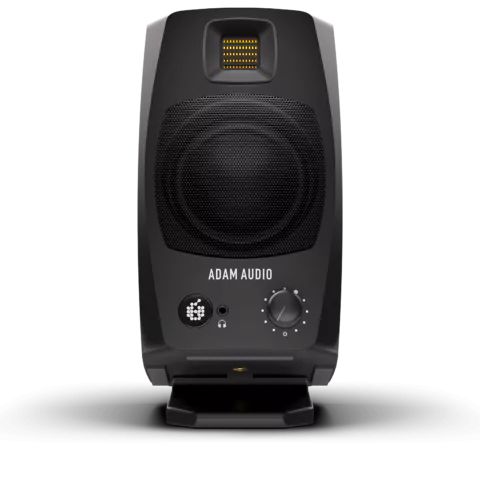

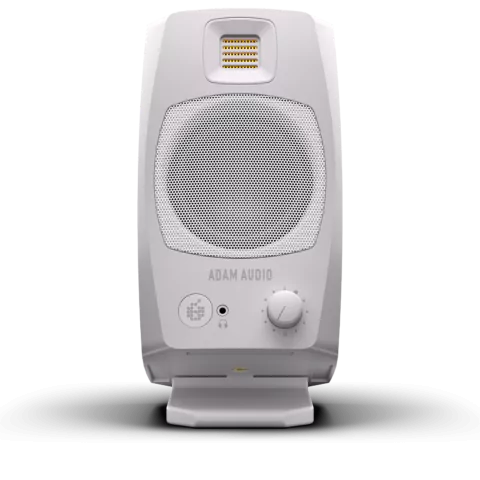

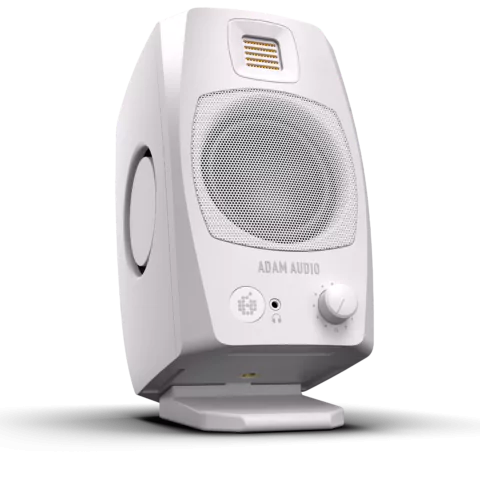

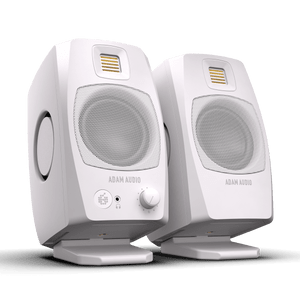

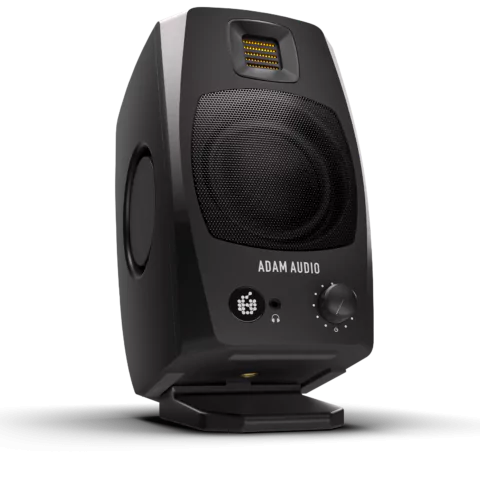

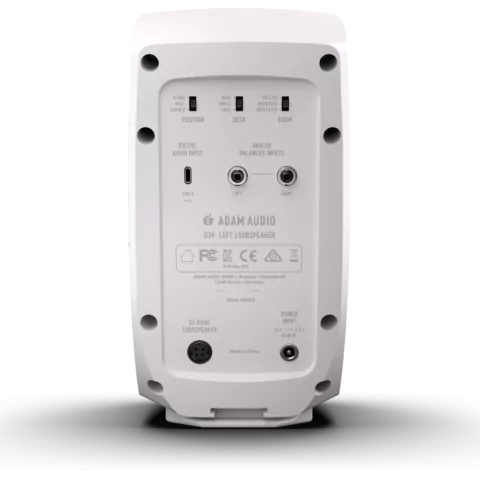

Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.
Handmade Precision D-ART Tweeters
3.5'' Aluminum Woofers plus dual-sided 3.5" passive radiators
Total Peak Amp. Power: 240 W
Frequency Response @ -6 dB: 45 Hz – 23.2 kHz
Max. SPL per speaker at 1 m (Peak): 97 dB SPL
FUTURE PROOF INNOVATIONS
Explore the technology
ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the D3V.
D-ART 1.5" Hand-Folded Tweeter
The D3V utilizes a 1.5” D-ART tweeter so that customers can enjoy precise and unfatiguing high frequency reproduction.
USB-C & Balanced Analog Inputs
The D3V offers a direct plug’n’play USB-C connection to computers, mobiles, and tablets. Traditional ¼” TRS inputs are also included.
DSP Room Adaption
The D3V features DSP-powered 3-way switches to address common acoustical issues arising from speaker placement.

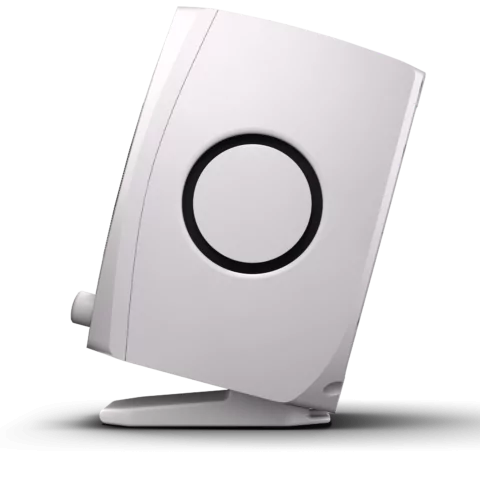

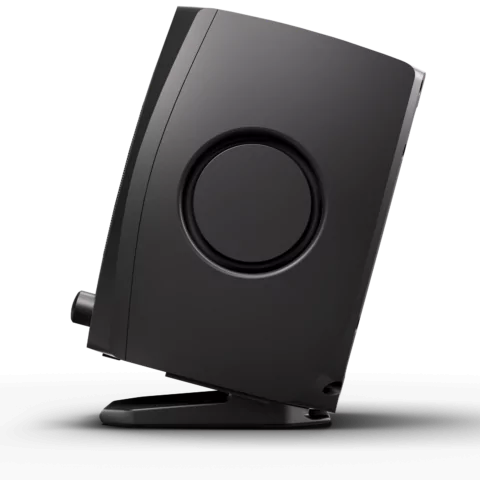

3.5” Woofers & Dual-Sided Passive Radiators
Partnering with the D-ART system, the D3V utilizes 3.5” woofers, a ferrite magnet system and passive radiators for the low frequencies.
One Button Control
The D3V’s multi-function volume control allows users to quickly access the common functions that make life that little bit easier ...
Monitor Stands & Mounting Options
Detachable feet are included as standard, plus users will find a 3/8” mic stand mounting point on the underside.
General Data
Display: Front panel multi-color LED
Cabinet Design: Dual passive radiator
Cabinet Material: PC-ABS
Mounting options: Flat on desk or loudspeaker stand (angled 15 degrees upwards on desk using supplied foot), threaded insert (3/8″) on the bottom of the cabinet for microphone stand
Power consumption (max, idle, sleep): 60 W, 5 W, 0.3 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 60 W max.
Operating Conditions: -10° C to +45° C (+14° F to +113° F); <70% RH, non-condensing
Weight (excl. feet): 3.58 kg total (7 lbs 14 oz total)
Dimensions (Height x Width x Depth): 200 mm (Height with stand: 240 mm) x 115 mm x 150 (7 7/8″” (Height with stand: 9 1/2″”) x 4 1/2″” x 5 7/8″”, 9 1/2″”)”
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: D3V primary loudspeaker, D3V secondary loudspeaker, USB-C cable with USB-A adpater, connection cable (2 m), power cable, power block, Quick Start Guide
Audio Connectors
Analog: TRS
Input Impedance: 47 kOhm
Max. Input Level: +9 dBu
Digital: USB Type C
Digital Audio Signal: Class-compliant USB 1.1
Headphones output connector: 3.5 mm TRS mini-jack
Headphones output impedance: 32 Ohm
Amplification
Woofer
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 2 x 80 W
RMS (1% THD, limiter deactivated): 2 x 70 W
Tweeter
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 2 x 40 W
RMS (1% THD, limiter deactivated): 2 x 30 W
Control Options
Input sensitivity: 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting
Level: Front panel knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB
