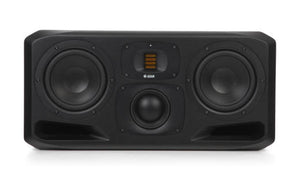

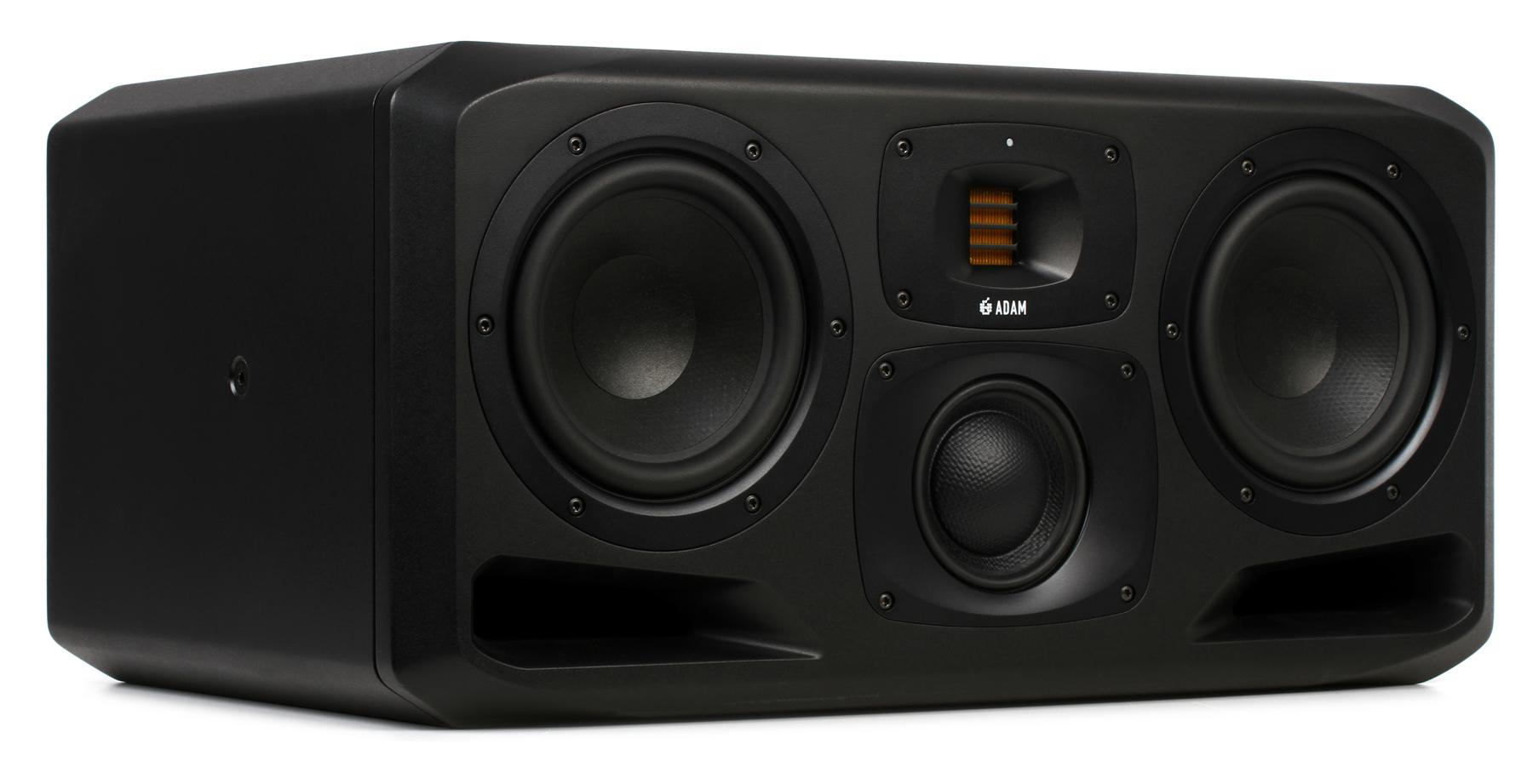

The S3H Studio Monitor's dual 7-inch bass drivers, each powered by separate 500 W Class D amplifiers, offer flawless reproduction of frequencies all the way down to 32 Hz. ADAM Audio's newly developed DCH, a 4-inch hybrid dome/cone mid-range driver, is powered by a 300 W Class D amplifier and handles audio above 250 Hz and below 3 kHz,its leading-edge hybrid design offering the sonic advantages of both cone and soft-dome drivers in a single, one-piece unit. Frequencies above 3 kHz are routed to the innovative combination of the S-ART treble driver (each handmade at ADAM Audio's Berlin factory), the new precision HPS waveguide, and a 50 W Class A/B amplifier. The result of all this innovation is a beautifully transparent three-dimensional soundscape, with an extensive sweet spot.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. A unique feature of the S3Hs DSP options is a built-in factory EQ preset that emulates the response of ADAM Audios legendary S3A monitor. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers DSP functions via a software front-end.
With its massively powerful amplification and three-way design (optimally configured for use horizontally), the S3H was conceived as a midfield monitor, but can be employed equally well in more compact listening environments. As with all ADAM Audio designs, the sound is punchy but musical, with crystal-clear reproduction of the all-important mid-range.
The S3H's wide-ranging frequency response, its power amps' instantly available, plentiful headroom, and the lack of need for additional subwoofers should appeal to any audio professional looking for a stand-alone, full-frequency active solution for their recording studio, one which provides equally detailed audio information at any volume setting, loud or quiet. Whatever your preferred output level, the S3H's vibrant authenticity is a spur to creativity for producers, engineers and musicians everywhere, and its sound remains remarkably unfatiguing, even when working uninterrupted for extended periods.
*Sold individually.
KEY FEATURES
• S-ART tweeter, handmade in Berlin
• Air velocity ratio of 4:1 during the sound generation by folded S-ART membrane gives direct, fast response in the high-range even with complex transients
• Newly designed HPS waveguide, milled from a solid block of aluminum makes dispersion more consistent and imaging more stable over a wider area
• New midrange driver with one-piece hybrid dome/cone (DCH) design offers the sonic advantages of both driver types, with minimal partial resonances
• Custom-built Extended Linear Excursion (ELE) bass drivers gives accurate audio reproduction at an extremely high resolution
• Custom-designed Symmetrical Magnet Assembly ensures linear, low-distortion operation
• Horizontal 3-way system with 2 x 7" woofers and 1 x 4" DCH midrange for very high resolution of the stereo image
• Spacious bass reflex ports on the front allows positioning close to walls
• Low-distortion amplification at both low and high volume levels
• Linear frequency response of 35 Hz to 50 kHz
• Maximum peak sound pressure per pair in 1 m >= 126 dB ensures powerful, compression-free sound reproduction even at very high sound levels
• Custom DSP engine provides perfect crossovers for optimal frequency response and maximum dynamic range
• Analog XLR input is optimized for balanced line signals
• Acoustically optimized and weightily constructed cabinets reduces susceptibility to vibrations and unwanted edge-diffraction effect
• 2 years warranty with optional extension to 3 years with the registration of the product
SPECS
Panel: Rear
Frequency Response: 32 Hz - 50 kHz
THD > 100 Hz: < = 0.4 %
Max. SPL per pair at 1 m: >= 126 dB
Crossover Frequencies: 250 Hz / 3 kHz
Max. Power Consumption: 550 W
Weight: 58.6 lb (26.6 kg)
Height x Width x Depth: 11.0" (280 mm ) x 23.0" (585 mm) x 15.0" (380 mm )
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Power cord, Manual
