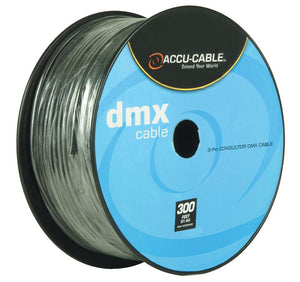

300 Foot Spool of DMX3 Cable
Conductor: Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354"
Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:
Lay Length: 2.5"
Direction: Left Hand Lay
Twists: 4.8 per foot Inner Jacket:
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055"
Pair Color Code: Black/White Outer Shield:
Outer Shield Trade Name: Duofoil®
Outer Shield Type: Tape/Braid Outer Shield Material:
Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:
Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:
Overall Nominal Diameter: .229" Mechanical Characteristics:
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2"
Maximum Recommended Pull Tension: 72 lbs. Electrical Characteristics:
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
• Dimensions: 9.75" x 9.75" x 4.25" / 248x248x108mm
