Description
A1 FOUR For Acoustic Guitar, Saxophone, Trumpet, Violin, Harmonica,
Acoustic Bass, And More

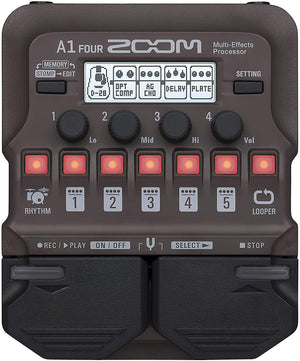

With specially engineered effects, built-in looper and drum machine, the A1 FOUR is the first
Multi-Effects Processor designed for a variety of acoustic string and wind instruments.
Extraordinary Effects
The A1 FOUR is preloaded with over 80 effects, including more than 35 new groundbreaking effects designed and engineered for acoustic instruments.
Acoustic Guitar Modeling
Add depth and dimension with acoustic emulators and modeling. Refresh your instrument’s natural sound, allowing your live performances to sound just like your studio recordings. Select and hone in on the tone of your favorite guitar make and style.
The A1 FOUR make it easier than ever to process the sound of your own Acoustic Guitar. With a selection of 15 factory presets (plus 13 more available as free download on Guitar Lab), you can select your favorite AG MODEL, D-28 for example, and recover instantly the sound character of that renowned and original body shape.
IR (Impulse Response) technology is used to capture the sonic fingerprint all guitar shapes and bodies available on the A1 FOUR and via Guitar Lab. Each AG MODEL can be adjusted with 4 parameters (Gain, Bass, Mid, Treble) to control the volume and refine the audio output of your modeled sound.
In Patches you can also set the AG Pickup Selector (AG PU SEL) to match your guitar’s pickup type (Piezo or Magnetic) and add a specific EQ modeled on a variety of dedicated processors.
Give Your Sax An Entirely New Soundscape
Perform that gritty, rock-and-roll sax growl. Or use the lush custom-chorus effect to emulate the sound of jazz fusion. The A1 Four gives sax players a soundscape of possibilities. The all-new “SaxChorus” effect delivers a more natural double-track and thick tone response by softening the modulated sensation typical of a chorus designed for the electric guitar. With ready-made settings for EQ and Compressors your sax will preserve its acousticly warm sound, even when amplified through mics.
Take Your Trumpet Back To The Future
From the bright sound of electric jazz to our signature Auto Wah sound effect, the A1 gives you inspiration for any style you play. With the “Tp MD70” preset patch the Pedal Wah sound is tuned, resonates and adapts to the low frequency range and curve of the Trumpet.
The Technology
Popular effects such as Distortion, Chorus and Wah are typically designed to work with the electric guitar. The A1 FOUR provide all-new effects that are engineered to process the unique signals generated by acoustic instruments.
For example, with the sax and trumpet, original acoustic sounds are controlled by the musician blowing the horn with more or less intensity. As an example, the Wah effects are uniquely re-voiced in the A1 FOUR by adding a Low Pass Filter (LPF) to best control the processed frequency response of the instrument. This allows musicians to hit the peak frequency points while still blowing naturally into the instrument, without losing any expected sonic response of attack and release.
Another example is the violin. The bowing attack is key to the expression of the violinist. To recreate the electrified sensation of distortion without losing the bowing attack, the DIST effect for Violin shifts the clipping 1 octave higher, boosts the high frequency and reduces the lows. This creates a more balanced saturation that suits the sonic characteristics of the violin.
The Perfect Partner
The Zoom MAA-1 mic adapter provides a hassle-free connection to the A1 FOUR. It works with dynamic microphones and even provides phantom power for condenser mics. Add effects to any acoustic instrument and adjust gain settings with the MAA-1’s easy-access controls.
Effortlessly toggle between patches and effects with two performance modes. MEMORY mode makes it easy to program your entire setlist by jumping from patch-to-patch. Use STOMP mode to turn individual effects on and off with the tap of your foot.
No More Feedback
The Anti-Feedback Filter detects and cuts frequencies that cause potential feedback.
Choose from 68 rhythm patterns designed for acoustic music including Samba, Reggae, and Jazz. Play along with a variety of time signatures.
Looped In
The built-in looper can record up to 30 seconds and allows you to create dynamic, multi-part arrangements.
The First Effects Pedal For Acoustic Musicians
Features
- A1 FOUR offers over 80 built-in effects A1 FOUR offers over 90 built-in effects
- Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
- Up to 5 effects can be used simultaneously, chained together in any order
- 50 memory locations for storing user-created patches
- Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Output jack for connection to amp or headphones
- A1 FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
- USB port for firmware updates, power and connection to ZOOM Guitar Lab
*Manufacturer names and product names mentioned in this presentation are trademarks or registered trademarks of their respective owners and do not indicate any affiliation with ZOOM CORPORATION. All product and artist names are intended only to illustrate sonic characteristics that were used as reference in the development of this product.
What’s In The Box
- A1 FOUR
- MAA-1 Mic Amp
- AA Batteries (x6)
- Quick Guide
- Patch List
-
A1 FOUR/A1X FOUR Maximum number of simultaneous effects : 5
User patches : 50
Sampling frequency : 44.1 kHz
A/D conversion : 24-bit, 128× oversampling
D/A conversion : 24-bit, 128× oversampling
Signal processing : 32-bit
Display : 128x32 dot matrix LCD
INPUT INPUT: Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩAUX IN : Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 1kΩOUTPUT OUTPUT : Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +2 dBu (10 kΩ or more output impedance)
Headphones 17 mW + 17 mW (32Ω load)Input S/N : 120dB
Noise floor (residual noise) : -97 dBu
Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)USB : USB MIDI, USB Micro-B
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.External dimensions : A1 FOUR
Height: 156 mm (D) × 130 mm (W) × 42 mm (H)
Weight: 340 g (excluding batteries)A1X FOUR
Height: 156 mm (D) × 216 mm (W) × 52 mm (H)
Weight: 610 g (excluding batteries)MAA-1 Input : INPUT XLR balanced input (2: hot)
Input gain: +3 – +30 dB
Input impedance: 10 kΩ
Maximum input level: +4 dBu
+48V phantom powerOutput : Standard mono phone jack
Nominal output level: −20 dBu
Maximum output level: +7 dBu
Output impedance: 1 kΩPower : 2 AA batteries
Continuous operation time (when phantom current is 3 mA)
About 15 hours (using alkaline batteries)
About 15 hours (using nickel metal hydride batteries)External dimensions:: Height: 177 mm (D) × 23 mm (W) × 25 mm (H)
Weight : 70 g (excluding batteries)
0 dBu = 0.775 V
