The most powerful AX monitor!
With its power and radiation characteristics, the brand new A8X is suitable for both nearfield and midfield monitoring. With a price/performance ratio that could hardly be better, this monitor is a perfect entry into these monitoring fields.

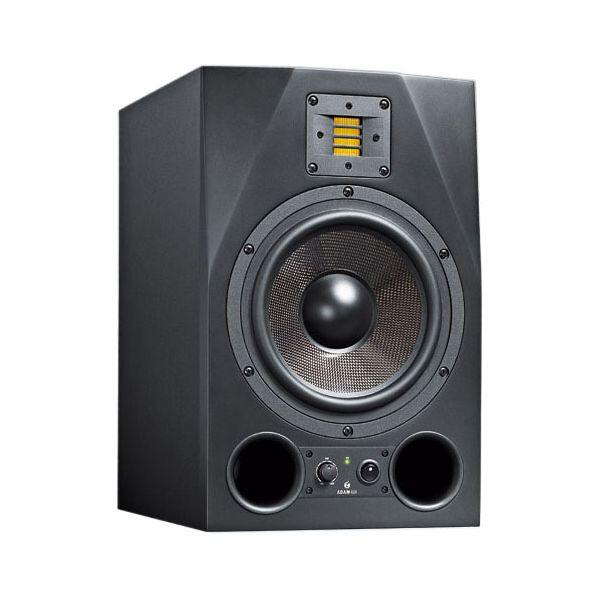

The A8X is equipped with the X-ART tweeter and a large (8.5) midwoofer, a combination that adds both a very deep and yet very tight bass response to the unsurpassed reproduction qualities of the ADAM proprietary tweeter: a licence to thrill.
Cabinet- and bass reflex-construction:
Like the other AX-Series models, the upper corners of the A8X are slanted to minimize reflections. The very large, double bass reflex tubes on the front have been specifically designed to perfectly match the midwoofer with its large voice coil.
Amplification and controls:
With a 50W A/B amplifier for the tweeter and a 150W PWM amplifier for the midwoofer, the A8X has power in abundance and is the brawny monitor of the AX-Series.

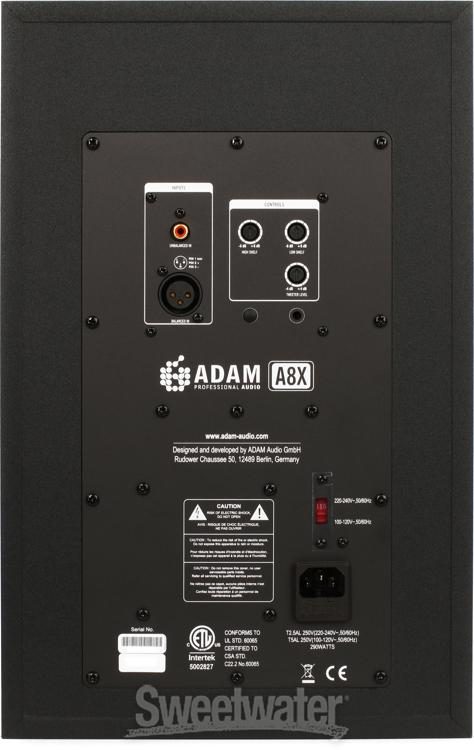

On the rear panel are several controls: a gain for the high frequencies ( 4dB) and two shelf filters for the high and low frequencies.
There are both XLR (balanced) and RCA (unbalanced) connectors on the rear panel of the speaker, which allow the A8X to be used in almost any application.
Frequency response: 38 Hz - 50 kHz
THD 90dB/1m > 100 Hz:≤0.5 %
Long term output: ≥112 dB
Max. peak: ≥120 dB
Crossover frequencies: 2300 Hz
Input impedance: 30 KOhm
Weight: 28.7 lb (13 kg)
Magnetically shielded: No
Height x Width x Depth: 15.5" (400 mm) x 10" (255 mm) x 12.5" (320 mm)
Warranty: 5 Years
TECHNICAL DATA
WOOFER
| Number |
1 |
| Basket Ø |
8.5" (220 mm) |
| Voice Coil Ø |
1.5" (38 mm) |
| Cone Material |
Carbon/Rohacell/Glass Fiber |
TWEETER
| Number |
1 |
| Type |
X-ART |
| Diaphragm Area |
4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø |
2" (56 mm) |
| Velocity Transform Ratio |
4:1 |
| Diaphragm Weight |
0.17 g |
BUILT-IN AMPLIFIERS
| Woofer |
1 |
| Type |
PWM |
| Amp. Power RMS / Music |
150 W / 225 W |
| Tweeter |
1 |
| Type |
A/B |
| Amp. Power RMS / Music |
50 W / 75 W |
CONTROL PANEL
| Input Sensitivity |
-∞ to +14 dB |
| High Shelf EQ > 5 kHz |
±6 dB |
| Low Shelf EQ < 300 Hz |
±6 dB |
| Tweeter Gain |
±4 dB |
GENERAL DATA
| Frequency Response |
38 Hz - 50 kHz |
| THD 90 dB / 1 m > 100 Hz |
≤0.5 % |
| Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m |
≥112 dB |
| Max. SPL per pair at 1 m |
≥120 dB |
| Crossover Frequencies |
2300 Hz |
| Input Impedance |
30 kOhm |
| Weight |
28.7 lb (13 kg) |
| Magnetically Shielded |
No |
| Height x Width x Depth |
15.5" (400 mm) x 10" (255 mm) x 12.5" (320 mm) |
| Panel |
Front |
| Warranty |
5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents |
Power cord, manual |
