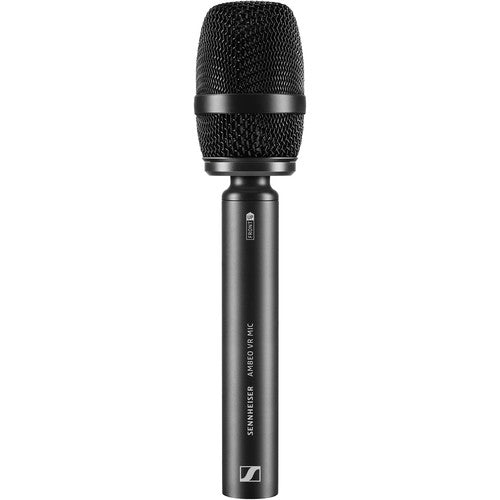

Ambeo® 3D audio microphone (4 x cardioid, ambisonic condenser) for virtual reality video production with 48 V phantom power and multi-pin output jack. Includes (1) Rycote INV 7 Suspension mount, (1) balanced split cable (4x XLRs 3-pins), (1) windscreen, (1) extension cable (1.5m, DIN12F to DIN12M) and AMBEO A-B format converter (VST, AU, and AAX Mac/PC plug-in (free download))

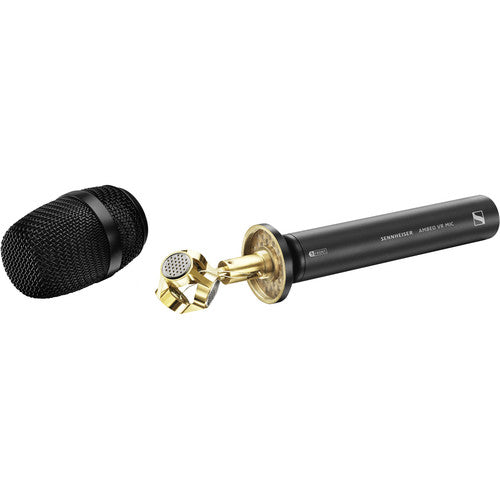

Designed for 360° immersive applications, the Sennheiser AMBEO VR is a microphone intended to bring the full vision of VR content creators to life in all its four-channel glory. Indeed, the microphone utilizes four KE 14 capsules situated in a tetrahedral arrangement to ensure that from wherever you're standing, the AMBEO will record the surrounding audio in a spherical manner, resulting in true Ambisonics recordings.
The science behind these principles is a bit arduous to lay out in the space provided for this description (indeed, multiple dissertations have been written about the Ambisonics format—developed by the British National Research Development Council in the 1970s); the principles are, however, of interest to the VR community, which utilize the technique to capture truly immerse aspects of any given sonic picture, giving you the left, right, bottom, top and center of the image in a way especially suited to the VR experience.
To help in working with the resulting audio in post-production, the microphone comes with a format encoder that will work in AU, AAX, VST, and standalone formats. Also included are a Rycote suspension mount, a split-cable designed to connect the microphone to four separate XLR terminations, and a windshield.
Transducer Principle | Externally-polarized condenser |
Pickup Pattern |
4x cardioid, in Ambisonics A-format arrangement
|
Frequency Response | 20 Hz to 20 kHz |
Matrix Reference | Center of the capsule holder |
Mixing to B-Format | W: FLU + FRD + BLD + BRU X: FLU + FRD - BLD - BRU Y: FLU - FRD + BLD - BRU Z: FLU - FRD - BLD + BRU |
Sensitivity | 31 mV/Pa (-30 dBV), free field, no load |
Impedance | Nominal: approximately 200 Ohms Minimal Terminating Impedance: 1000 Ohms |
Equivalent Noise Level | 18 dBA as per IEC 61672-1 27 dB CCIR as per CCIR 468-3 |
Maximum SPL | 130 dBA for 1 kHz (for K = 1%) |
Power Supply | 4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 2.2 mA each |
Microphone Connector | DIN12M (use enclosed adapter cable to convert to 4x XLR3M) |
Polarity | Pin1 (GND), Pin2 (+), Pin3 (-) |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Relative Humidity | Max 90% at 104°F / 40°C |
Dimensions (L x D) | 8.5 x 1.9/1.0" / 215.0 x 49.0/25.0 mm |
Weight | 14.1 oz / 400.0 g |
Package Weight | 2.785 lb |
Box Dimensions (LxWxH) | 16.05 x 11.05 x 3.05" |
