Digital output module. Converts MKH8020, 8040, 8050, 8060, 8070 & 8090 to AES42 digital mic

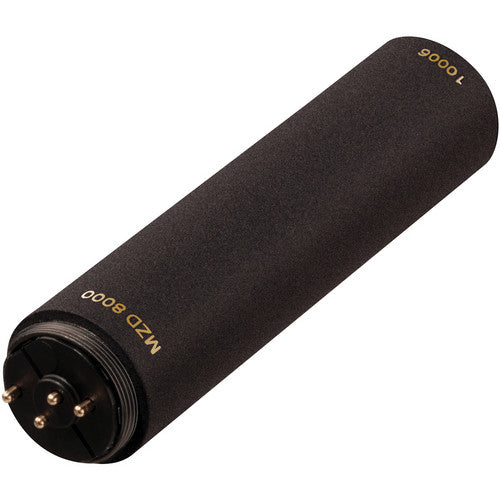

The MZD 8000 Digital Microphone Module by Sennheiser converts the audio signal of the MKH 8000 series microphones from analog to digital. The matching module simply screws onto the head of the MKH 8020, MKH 8040 or MKH 8050 converting the analog XLR output to digital AES 42.
In addition to high quality 24-bit, 192 kHz conversion, it also contains an integrated DSP unit. Using PC controlled software and an AES 42 interface, the microphone allows settings such as the low-cut filter and attenuation to be controlled remotely.
Two channel 24 Bit-AD-converter with a 115 dB dynamic range
Studio grade preamp and converter with sampling rates from 44.1 to 192 kHz
Remote controlled DSP functions such as low cut filter and attenuation
Digital output in AES 42 format plus external sync via AES 42, Mode 2
Black, matte finish to match the MKH 8000 series microphones
Sennheiser MZD 8000 Specs
| Frequency Response | 10 Hz to 80 kHz |
| AD Conversion | 24 Bit/ 44.1 to 192 kHz delta-sigma |
| Sensitivity | -31 dBFS (incl. MKH 8020) |
| Total Harmonic Distortion | < -100 dBFS (at -1 dBFS) |
| Self Noise | < -120 dBFS (mono mode, 40 Ohm) |
| Group Delay Time | 22/ 19/ 15 samples (single/ double/ quad speed) |
| Power Supply | 10V DPP (AES 42-phantom power) |
| Current Consumption | < 160mA |
| Operating Voltage | 7V to 10.5V |
| Operating Temperature | -10 to 60°C |
| Dimensions | Diameter 19mm, length 96mm |
| Weight | 2.29 oz (65 g) |
Packaging Info
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 6 x 4.3 x 1.6" |
