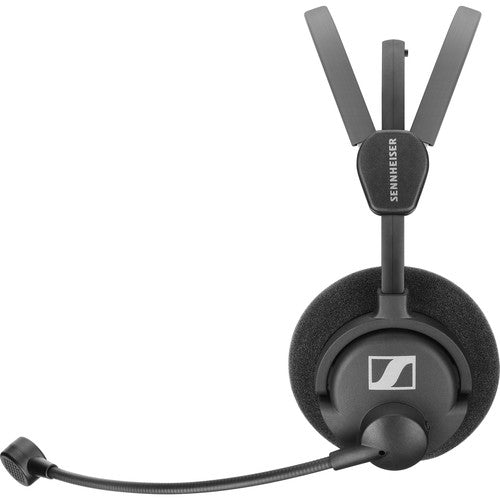

The double-sided Sennheiser HMD 46-3-II is a lightweight and comfortable headset designed specifically for air traffic control communication and C3 (Command, Control, and Communication) applications. The flip-away noise cancelling microphone delivers highly intelligible speech by filtering out ambient noise to ensure effective communication. The ActiveGard technology protects users' hearing against acoustic injury caused by a sudden sound burst on the line with no risk of communication drop-out.
Building upon the success of the original 46-Series headsets, the MKII no longer have to conform to the requirements of aircraft cockpit-grade headband caliper pressure, resulting in a more comfortable headset for extended wear. The patented two-piece headband and soft earpads offer a personalized fit that also helps to reduce wearing fatigue. The Sennheiser HMD 46-3-II is compatible with a wide variety of optional accessories and ships with a cable clip and a wind/pop screen.
- Sennheiser Voice Clarity: provides accurate communication and high-quality voice transmission and reception
- High-quality speech transmission: noise-cancelling microphone filters out ambient noise for optimum speech clarity to reduce "call-back/read-back" events
- Fits most applications: Dynamic, BMD-46-413 microphone with double-sided earcup
- Two-channel stereo application for multichannel communications
- Sound protection from acoustic injury caused by sudden sound bursts on the line with Sennheiser ActiveGard technology
- Easy to change cables can be simply replaced
- Remarkable wearing comfort with patented two-piece split headband and soft ear pads
- Choice of PTT switches for personal preference
- Cable and connectors: a wide range of optional cables and connectors are available for customization
Sennheiser HMD 46-3-II Specs
Sound Pressure Level | dB SPL @ 1 kHz, 0.5 V: 94 dB dB SPL @ 1 kHz, 1 mW: 95 dB dB SPL @ 1 kHz, 1V: 86 dB Max SPL: 105 dB |
THD | < 1% at 95 dB SPL (300 Hz to 3 kHz) |
Frequency Response | 20 Hz to 14 kHz |
Impedance | 300 Ohms |
Microphone Type | Dynamic, BMD-46-413 |
Sensitivity | -66 dB re 1V, ±3 dB |
Pickup Pattern | Noise-cancelling, unidirectional |
Supply Voltage | N/A |
Frequency Response | 100 Hz to 12 kHz |
Output Voltage | 0.5 mV/Pa |
Impedance | 200 Ohms |
Recommended Load Impedance | N/A |
Color | Black |
Wearing Style | Headband, double-sided |
Contact Pressure | 2.7 N |
Ear Coupling | Supra-aural (on ear) |
Temperature | Storage: -67 to 158°F / -55 to 70°C Operating: 5 to 131°F / -15 to 55°C |
Dimensions | Not specified by manufacturer |
Weight | 5.3 oz / 150.0 g |
