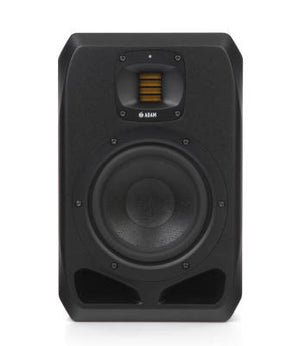

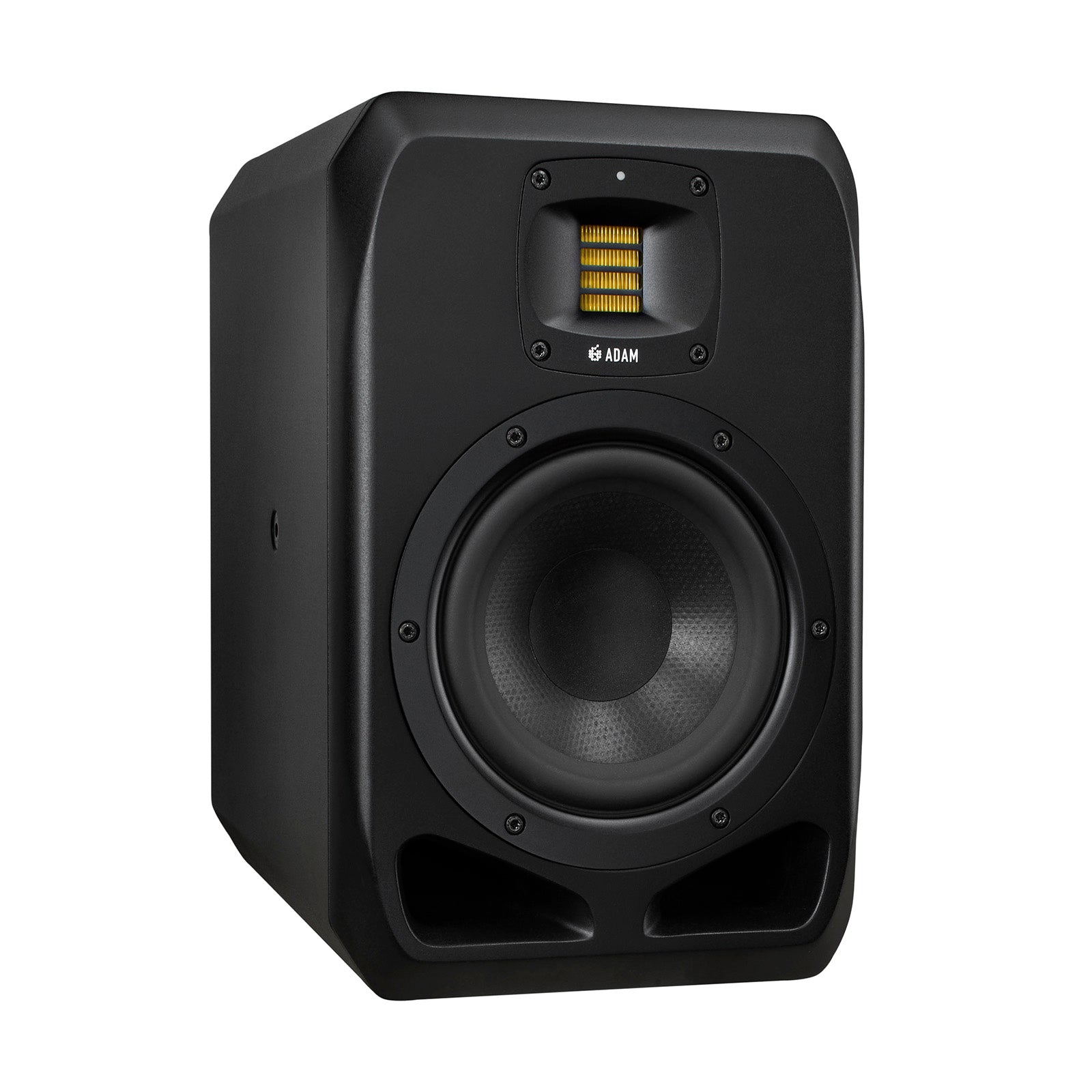

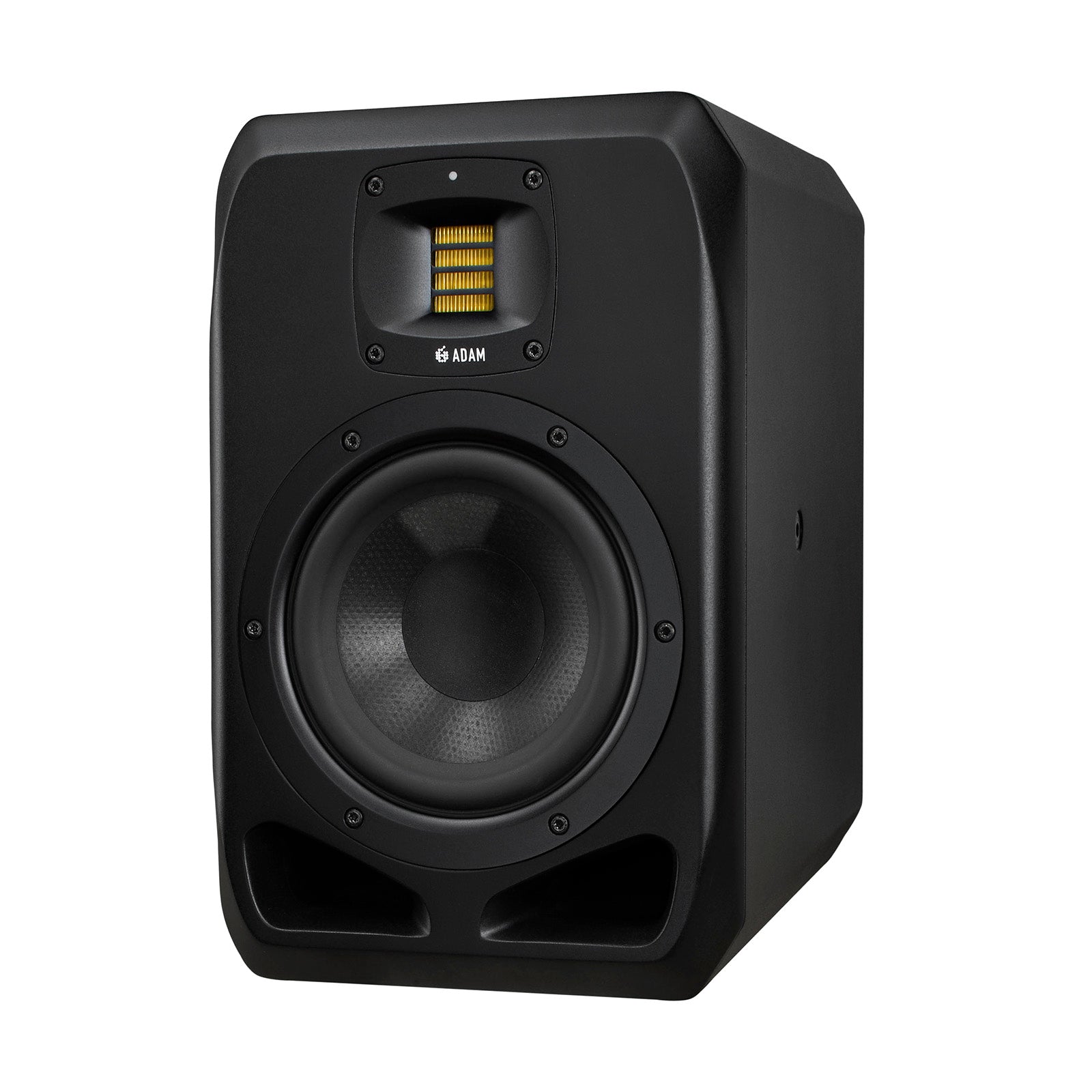

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.
German Handmade Precision S-ART Tweeter with HPS Waveguide
7" Woofer (Hexacone)
Cumulated Amp. Power RMS: 350 W
Frequency Response: 35 Hz - 50 kHz
Max. SPL Per Pair at 1 m: >= 120 dB
AES3 Digital Inputs And Various Expansion Options
The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.
The S2V's compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
*Sold individually.
FEATURES
• S-ART tweeter, handmade in Berlin • Air velocity ratio of 4:1 during the sound generation by folded S-ART membrane gives direct, fast response in the high-range even with complex transients • Newly designed HPS waveguide, milled from a solid block of aluminum makes dispersion more consistent and imaging more stable over a wider area • Custom-built Extended Linear Excursion (ELE) bass drivers gives accurate audio reproduction at an extremely high resolution • Custom-designed Symmetrical Magnet Assembly ensures linear, low-distortion operation • Vertical 2-way system with 7" woofer for very high resolution of the stereo image • Spacious bass reflex ports on the front allows positioning close to walls • Low-distortion amplification at both low and high volume levels • Linear frequency response of 35 Hz to 50 kHz • Maximum peak sound pressure per pair in 1 m >= 120 dB ensures powerful, compression-free sound reproduction even at very high sound levels • Custom DSP engine provides perfect crossovers for optimal frequency response and maximum dynamic range • Analog XLR input is optimized for balanced line signals • Acoustically optimized and weightily constructed cabinets reduces susceptibility to vibrations and unwanted edge-diffraction effect • 2 years warranty with optional extension to 3 years with the registration of the product
SPECS
Panel: Rear Frequency Response: 35 Hz - 50 kHz THD > 100 Hz: < = 0.4 % Max. SPL per pair at 1 m: >=120 dB Crossover Frequencies: 3 kHz Max. Power Consumption: 230 W Weight: 24.2 lb (11.0 kg) Height x Width x Depth: 13.6" (346 mm) x 8.7" (222 mm) x 13.3" (338 mm ) Warranty: 5 years (2 years warranty plus 3 years optional with product registration) Delivery Contents: Power cord, Manual
