Description
CRAFT YOUR SOUND

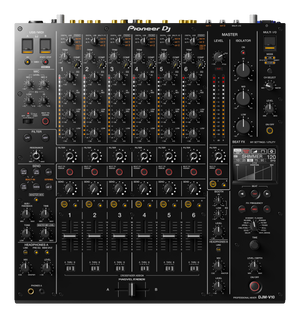

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.
This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.
KEY FEATURES
-
ELITE SOUND QUALITY
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.
-
6 CHANNELS WITH A WIDE RANGE OF INPUTS
You’re free to create your perfect setup with 6 channels and a host of different input types.
-
4-BAND EQ AND COMPRESSOR
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.
-
EFFECTS FOR MORE CREATIVE EXPRESSION
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless
-
3-BAND MASTER ISOLATOR
Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.
-
DUAL HEADPHONES OUTPUT AND BOOTH EQ
The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.
-
Lockable power cable
A lockable power cord is included for added reliability and to avoid accidental disconnections.
*In selected regions, a non-lockable power cable is supplied instead. -
DJM-REC compatible
Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions.
-
rekordbox
Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching.
-
Serato DVS-ready
Use SERATO DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately).
-
TRAKTOR DVS-ready
Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.
-
ShowKontrol
The DJM-V10 supports the extended PRO DJ LINK SHOW CONTROL protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.
Specifications
Main Features
MIDI Control
Full assignable MIDI controls DVS Control
- rekordbox
- Serato DJ Pro
- TRAKTOR PRO 3
What's in the box
- DJM-V10
- Power Cord
- Warranty (for some regions)
- Quick Start Guide
- Precautions for Use
Specifications
Sampling Rate
96 kHz Width
17.23 in Height
4.25 in Depth
18.39 in Weight
26.24 lb A/D Converter
32 bit D/A Converter
32 bit S/N Ratio Line
105 dB S/N Ratio Phono
88 dB S/N Ratio Mic
79 dB Channels
EQ
4 band Performance Control
Channels
6 Filter
- HPF
- LPF
SEND
- Short Delay
- Long Delay
- Dub Echo
- Reverb
- 2 Externals (1/4-inch TS jack)
MULTI I/O
- 1/4-inch jack
- USB (Type A)
Beat FX
- Delay
- Echo
- Ping Pong
- Spiral
- Helix
- Reverb
- Shimmer
- Flanger
- Phaser
- Filter
- Trans
- Roll
- Pitch
- Vinyl Brake
Crossfader
Fader Curve
3 Mic
Mic Connection
- XLR / 1/4-inch Jack Combo
- 1/4-inch TRS Jack
Terminals
Inputs
- 6 DIGITAL (Coaxial)
- 6 LINE (RCA)
- 4 PHONO (RCA)
Send/Return
- 3 SEND (1/4-inch TS jack)
- 3 RETURN (1/4-inch TS jack)
LAN
1 Outputs
- 2 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (AES/EBU)
- 1 MIDI (DIN)
USB
- 2 USB B ports
- 1 USB A port
