Description
Step Up Your Livestreams

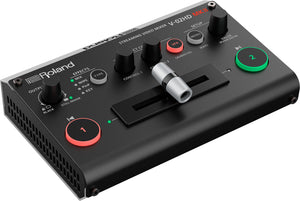

Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.
Simply Simple
The V-02HD MK II is the world’s easiest two-camera livestreaming solution. With its intuitive layout, large controls, and T-bar fader, it’s incredibly simple to operate, even if you have no broadcasting experience.
Go live in three quick steps:
1. Plug in up to two sources via HDMI, including cameras, computers, mobile devices, and gaming consoles.
2. Connect the USB-C output to your computer.
3. Launch your streaming software and select the V-02HD MK II as the camera source.
Stream with Every Platform
The V-02HD MK II connects to the streaming computer you already own and the audience you already have. It’s instantly recognized as a camera source when you plug in via USB, so it’s ready to go for Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, StreamYard, and Restream for more advanced workflows. High-quality streaming up to 1080p/60 FPS is supported, and it’s possible to send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed.
A Stress-Free Setup
When you use the V-02HD MK II, everything just works. Plug in your two HDMI sources and let Roland’s advanced tech handle all the details, and say goodbye to computer driver conflicts, crashes, and other reliability issues that come with multiple USB webcams and HDMI-to-USB encoder adaptors.
HDMI Cameras for the Win
From talk shows and live demonstrations to artistic performances and beyond, cameras that support HDMI output will elevate the image quality in your streams and drive more audience engagement. They have much better lenses than any webcam and often have zoom capability to frame your perfect shot. You can connect a variety of different camera types to the V-02HD MK II. Whichever solution you choose, make sure it supports a clean HDMI output that’s free of any overlayed information.
- Good—A smartphone or tablet with an HDMI adaptor offers a good option that’s compact and easy to set up anywhere.
- Better—A point-and-shoot camera, action camera, or video camcorder with features like zoom and deeper exposure and focus control will take things even further.
- Best—A DSLR or mirrorless camera is the ultimate solution, offering the best image quality for a cinematic look, interchangeable lenses, and improved performance in low-light conditions.
VideoVideo Processing4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors
INPUT 1--2: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
Output Connectors
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
* HDCP Supported
* Multi-format Supported
USB STREAM:USB Type-C (TM)Input Formats480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 HzOutput FormatsPROGRAM OUT, PREVIEW OUT:
480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
USB STREAM:
1080/60p, 720/60p, 640 x 480/60p *1
1080/59.94p, 720/59.94p, 640 x 480/59.94p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/50p, 720/50p, 640 x 480/50p *4
1080/25p, 720/25p､640 x 480/25p *5
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 FRAME RATE(USB OUT) = 60 Hz
*2 FRAME RATE(USB OUT) = 59.94 Hz
*3 FRAME RATE(USB OUT) = 29.97 Hz
*4 FRAME RATE(USB OUT) = 50 Hz
*5 FRAME RATE(USB OUT) = 25 HzVideo EffectsTransition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern outputAudioAudio ProcessingSampling rate: 24 bits/48 kHzAudio formatsLinear PCM, 24 bits/48 kHz, 2chInput ConnectorsAnalog:
AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported
Digital:
USB STREAM: USB Type-C (™)
INPUT 1--2: HDMI Type A x 2Output ConnectorsAnalog:
PHONES: Stereo miniature type
Digital:
USB STREAM: USB Type-C (TM)
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type AInput LevelAUDIO IN: -10 dBu (Maximum: +10 dBu)Input ImpedanceAUDIO IN: 10 k ohmsOutput LevelPHONES: 92 mW + 92 mW (32 ohms)Output ImpedancePHONES: 10 ohmsAudio EffectsDelay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
Multi-band compressor, Limiter, Test tone output
